MAX1232CSA+T IC SUPERVISOR 1 CHANNEL 8SOIC Analog Devices Inc./Maxim Integrated

Product Categories

Sanhuang electronics (Hong Kong) Co., Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

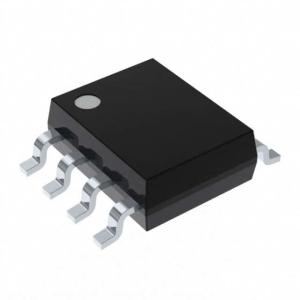

MAX1232CSA+T IC SUPERVISOR 1 CHANNEL 8SOIC Analog Devices Inc./Maxim Integrated

Name: MAX1232CSAT IC SUPERVISOR 1 CHANNEL 8SOIC Analog Devices IncMaxim Integrated
Brand: Analog Devices Inc./Maxim Integrated
Price: 1 USD

Brand Name : Analog Devices Inc./Maxim Integrated

Model Number : MAX1232CSA+T

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Type : Simple Reset/Power-On Reset

Number of Voltages Monitored : 1

Voltage - Threshold : 4.37V, 4.62V

Output : Open Drain or Open Collector

Reset : Active High/Active Low

Reset Timeout : 250ms Minimum

Operating Temperature : 0°C ~ 70°C (TA)

Mounting Type : Surface Mount

Package / Case : 8-SOIC (0.154", 3.90mm Width)

Supplier Device Package : 8-SOIC

Contact Now

Product Details

General Description

The MAX1232 microprocessor (μP) supervisory circuit provides μP housekeeping and power-supply supervision functions while consuming only 1/10th the power of the DS1232. The MAX1232 enhances circuit reliability in μP systems by monitoring the power supply, monitoring the software execution, and providing a debounced manual reset input. The MAX1232 is a plug-in upgrade of the Dallas DS1232.

Features

♦ Consumes 1/10th the Power of the DS1232
♦ Precision Voltage Monitor - Adjustable +4.5V or +4.75V
♦ Power OK/Reset Pulse Width - 250ms Min
♦ No External Components
♦ Adjustable Watchdog Timer - 150ms, 600ms, or 1.2sec
♦ Debounced Manual Reset Input for External Override
♦ Available in 8-Pin PDIP/Small Outline and and 16-Pin Wide Small Outline Packages

Applications

Computers
Controllers
Intelligent Instruments
Automotive Systems
Critical μP Power Monitoring

Specifications

Attribute	Attribute Value
Manufacturer	Maxim Integrated
Product Category	Supervisors
Series	MAX1232
Type	Simple Reset/Power-On Reset
Packaging	Alternate Packaging
Unit-Weight	0.019048 oz
Mounting-Style	SMD/SMT
Package-Case	8-SOIC (0.154", 3.90mm Width)
Operating-Temperature	0°C ~ 70°C (TA)
Mounting-Type	Surface Mount
Output-Type	Active High Active Low Open Drain
Supplier-Device-Package	8-SOIC
Output	Open Drain or Open Collector
Reset	Active High/Active Low
Voltage monitoring relays	1
Reset-Timeout	250 ms Minimum
Voltage-Threshold	4.37V, 4.62V
Maximum Operating Temperature	+ 70 C
Operating temperature range	0 C
Operating-Supply-Current	200 uA
Battery-Backup-Switching	No Backup
Part-#-Aliases	MAX1232
Supply-Voltage-Max	5.5 V
Supply-Voltage-Min	4.5 V
Package-Case	SOIC-8
Watchdog-Timers	Watchdog
Threshold-Voltage	4.5 V 4.75 V
Input Monitoring	1 Input
Manual-Reset	Manual Reset
Chip-Enable-Signals	No Chip Enable
Power-Fail-Detection	No
Reset-Delay-Time	1000 ms
Overvoltage-Threshold	4.74 V 4.49 V
Undervoltage-Threshold	4.5 V 4.25 V

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
MAX1232ESA+ Power Circuits	Power Supply Management Circuit, Fixed, 1 Channel, +4.37/4.62VV, CMOS, PDSO8, SO-8	Maxim Integrated Products	MAX1232CSA+T vs MAX1232ESA+
MAX1232ESA+T Power Circuits	Power Supply Support Circuit, Fixed, 1 Channel, +4.37/4.62VV, CMOS, PDSO8, SO-8	Maxim Integrated Products	MAX1232CSA+T vs MAX1232ESA+T
MAX1232ESA Power Circuits	Power Supply Management Circuit, Fixed, 1 Channel, +4.37/4.62VV, CMOS, PDSO8, SO-8	Maxim Integrated Products	MAX1232CSA+T vs MAX1232ESA
DS1232LPS-2 Power Circuits	1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8, 0.150 INCH, SOIC-8	Rochester Electronics LLC	MAX1232CSA+T vs DS1232LPS-2
MAX1232CSA Power Circuits	Power Supply Management Circuit, Fixed, 1 Channel, +4.37/4.62VV, CMOS, PDSO8, SO-8	Maxim Integrated Products	MAX1232CSA+T vs MAX1232CSA
DS1232LPS-2+ Power Circuits	Power Supply Support Circuit, Fixed, 1 Channel, +4.37/4.62VV, CMOS, PDSO8, 0.150 INCH, SOIC-8	Maxim Integrated Products	MAX1232CSA+T vs DS1232LPS-2+
DS1232LPS-2+T&R Power Circuits	Power Supply Support Circuit, Fixed, 1 Channel, +4.37/4.62VV, CMOS, PDSO8, 0.150 INCH, SOIC-8	Maxim Integrated Products	MAX1232CSA+T vs DS1232LPS-2+T&R
MAX1232CSA+ Power Circuits	Power Supply Management Circuit, Fixed, 1 Channel, +4.37/4.62VV, CMOS, PDSO8, SO-8	Maxim Integrated Products	MAX1232CSA+T vs MAX1232CSA+
LTC1232CS8#PBF Power Circuits	Microprocessor Supervisory Circuit	Analog Devices Inc	MAX1232CSA+T vs LTC1232CS8#PBF
LTC1232CS8 Power Circuits	Power Supply Support Circuit, Fixed, 1 Channel, CMOS, PDSO8	Analog Devices Inc	MAX1232CSA+T vs LTC1232CS8
