TS831-3IPT IC SUPERVISOR 1 CHANNEL 8TSSOP STMicroelectronics

Name: TS8313IPT IC SUPERVISOR 1 CHANNEL 8TSSOP STMicroelectronics
Brand: STMicroelectronics
Price: 1 USD

Brand Name : STMicroelectronics

Model Number : TS831-3IPT

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Type : Simple Reset/Power-On Reset

Number of Voltages Monitored : 1

Voltage - Threshold : 2.71V

Output : Open Drain or Open Collector

Reset : Active Low

Reset Timeout : 20µs Typical Response Time

Operating Temperature : -40°C ~ 125°C (TA)

Mounting Type : Surface Mount

Package / Case : 8-TSSOP (0.173", 4.40mm Width)

Supplier Device Package : 8-TSSOP

Contact Now

Product Details

DESCRIPTION

The TS831 is an ultra low power integrated circuit incorporating a high stability band-gap voltage reference and a comparator with an open drain output.

■ ULTRA LOW POWER CONSUMPTION : 12µA maximum
■ PRECISION RESET THRESHOLD
■ THRESHOLD VOLTAGE:
4.33V typ. FOR TS831-5
4.50V typ. FOR TS831-4
2.71V typ. FOR TS831-3
■ GUARANTEED RESET OPERATION FOR VCC DOWN TO 1V
■ OPEN DRAIN OUTPUT COMPARATOR
■ FAST RESPONSE TIME : 20µs FOR A 10mV OVERDRIVE
■ INTERNAL BUILT-IN HYSTERESIS
■ PIN TO PIN COMPATIBLE WITH MC33064 AND MC33164

APPLICATION
■ Power-on reset generator for microcontroller
■ Power failure detector

Specifications

Attribute	Attribute Value
Manufacturer	STMicroelectronics
Product Category	Supervisors
Series	TS831
Type	Simple Reset/Power-On Reset
Packaging	Alternate Packaging
Unit-Weight	0.005573 oz
Mounting-Style	SMD/SMT
Package-Case	8-TSSOP (0.173", 4.40mm Width)
Operating-Temperature	-40°C ~ 125°C (TA)
Mounting-Type	Surface Mount
Supplier-Device-Package	8-TSSOP
Output	Open Drain or Open Collector
Reset	Active Low
Voltage monitoring relays	1
Reset-Timeout	20 μs Typical Response Time
Voltage-Threshold	2.71V
Pd-Power-Dissipation	625 mW
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Operating-Supply-Current	12 uA
Supply-Voltage-Max	5.5 V
Supply-Voltage-Min	1 V
Package-Case	TSSOP-8
Watchdog-Timers	No Watchdog
Threshold-Voltage	2.71 V
Input Monitoring	1 Input
Manual-Reset	No Manual Reset
Overvoltage-Threshold	2.8 V
Undervoltage-Threshold	2.55 V

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
TS831-3IP Power Circuits	1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8, TSSOP-8	STMicroelectronics	TS831-3IPT vs TS831-3IP

Descriptions

Supervisor Open Drain or Open Collector 1 Channel 8-TSSOP

Processor Supervisor 2.71V 1 Active Low 8-Pin TSSOP T/R

Supervisory Circuits 2.71V Micropower AL

China TS831-3IPT IC SUPERVISOR 1 CHANNEL 8TSSOP STMicroelectronics factory

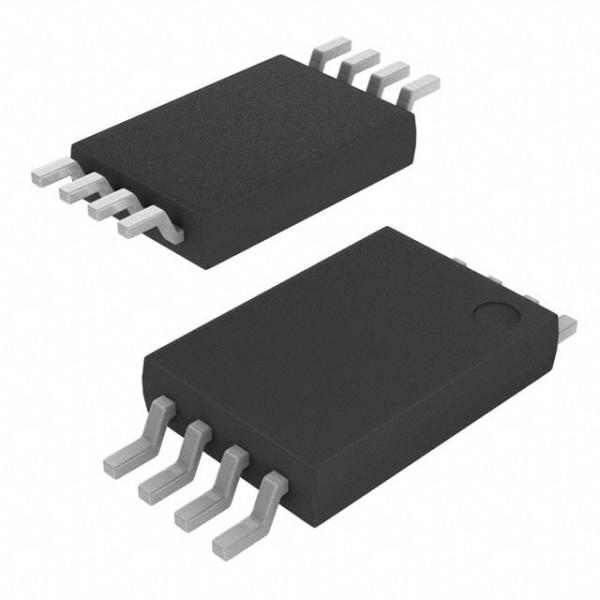

TS831-3IPT IC SUPERVISOR 1 CHANNEL 8TSSOP STMicroelectronics Images
