Brand Name : STMicroelectronics
Model Number : STM6904TWEDS6F
MOQ : 1
Price : Based on current price
Payment Terms : T/T
Supply Ability : In stock
Delivery Time : 3-5 work days
Packaging Details : anti-static bag & cardboard box
Type : Multi-Voltage Supervisor
Number of Voltages Monitored : 4
Voltage - Threshold : 1.683V, 3.078V, Adj, Adj
Output : Open Drain or Open Collector
Reset : Active Low
Reset Timeout : 140ms Minimum
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
Attribute | Attribute Value |
---|---|
Manufacturer | STMicroelectronics |
Product Category | Supervisors |
Series | STM6904 |
Type | Multi-Voltage Supervisor |
Packaging | Alternate Packaging |
Unit-Weight | 0.005573 oz |
Mounting-Style | SMD/SMT |
Package-Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
Operating-Temperature | -40°C ~ 85°C (TA) |
Mounting-Type | Surface Mount |
Output-Type | Push-Pull |
Supplier-Device-Package | 8-TSSOP |
Output | Open Drain or Open Collector |
Reset | Active Low |
Voltage monitoring relays | 4 |
Reset-Timeout | 140 ms Minimum |
Voltage-Threshold | 1.683V, 3.078V, Adj, Adj |
Maximum Operating Temperature | + 85 C |
Operating temperature range | - 40 C |
Operating-Supply-Current | 10 uA |
Battery-Backup-Switching | No Backup |
Supply-Voltage-Max | 5.5 V |
Supply-Voltage-Min | 0.8 V |
Package-Case | TSSOP-8 |
Watchdog-Timers | No Watchdog |
Threshold-Voltage | 3.078 V 1.683 V |
Input Monitoring | 2 Input |
Manual-Reset | Manual Reset |
Overvoltage-Threshold | 3.109 V 1.7 V |
Undervoltage-Threshold | 3.047 V 1.666 V |
Manufacturer Part# | Description | Manufacturer | Compare |
STM6904TWEDS6E Power Circuits |
4-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8, 3 X 3 MM, GREEN, TSSOP-8 | STMicroelectronics | STM6904TWEDS6F vs STM6904TWEDS6E |
![]() |

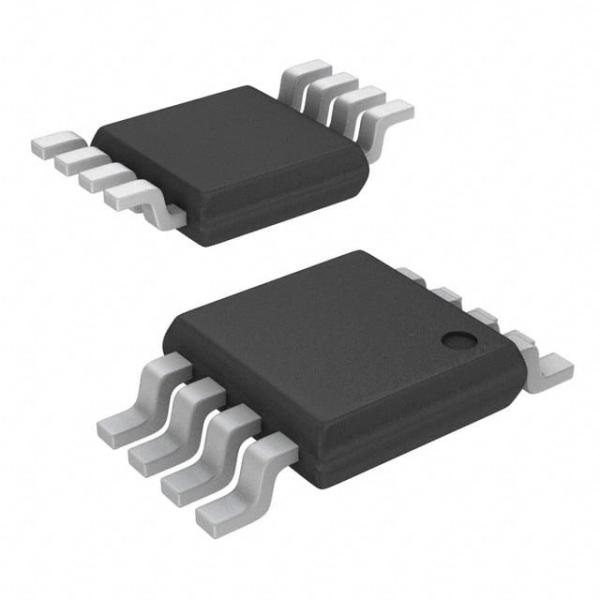

STM6904TWEDS6F IC SUPERVISOR 4 CHANNEL 8MSOP STMicroelectronics Images |
