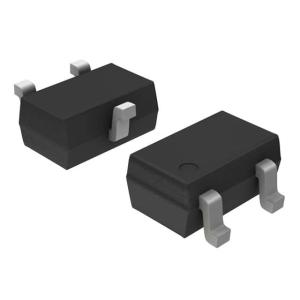

MAX809SQ293D1T1G IC SUPERVISOR 1 CHANNEL SC70-3 onsemi

Name: MAX809SQ293D1T1G IC SUPERVISOR 1 CHANNEL SC703 onsemi
Brand: onsemi
Price: 1 USD

Brand Name : onsemi

Model Number : MAX809SQ293D1T1G

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Type : Simple Reset/Power-On Reset

Number of Voltages Monitored : 1

Voltage - Threshold : 2.93V

Output : Push-Pull, Totem Pole

Reset : Active Low

Reset Timeout : 1ms Minimum

Operating Temperature : -40°C ~ 105°C (TJ)

Mounting Type : Surface Mount

Package / Case : SC-70, SOT-323

Supplier Device Package : SC-70-3 (SOT323)

Contact Now

Product Details

The MAX809 and MAX810 are cost−effective system supervisor circuits designed to monitor VCC in digital systems and provide a reset signal to the host processor when necessary. No external components are required.

Features

• Precision VCC Monitor for 1.5 V, 2.5 V, 3.0 V, 3.3 V, and 5.0 V Supplies
• Precision Monitoring Voltages from 1.2 V to 4.9 V Available in 100 mV Steps
• Four Guaranteed Minimum Power−On Reset Pulse Width Available (1 ms, 20 ms, 100 ms, and 140 ms)
• RESET Output Guaranteed to VCC = 1.0 V.
• Low Supply Current
• Compatible with Hot Plug Applications
• VCC Transient Immunity
• No External Components
• Wide Operating Temperature: −40°C to 105°C
• Pb−Free Packages are Available

Typical Applications

• Computers
• Embedded Systems
• Battery Powered Equipment
• Critical Microprocessor Power Supply Monitoring

Specifications

Attribute	Attribute Value
Manufacturer	onsemi
Product Category	Supervisors
Series	MAX809
Type	Simple Reset/Power-On Reset
Packaging	Alternate Packaging
Unit-Weight	0.000219 oz
Mounting-Style	SMD/SMT
Package-Case	SC-70, SOT-323
Operating-Temperature	-40°C ~ 105°C (TJ)
Mounting-Type	Surface Mount
Output-Type	Push-Pull
Supplier-Device-Package	SC-70-3 (SOT323)
Output	Push-Pull, Totem Pole
Reset	Active Low
Voltage monitoring relays	1
Reset-Timeout	1 ms Minimum
Voltage-Threshold	2.93V
Maximum Operating Temperature	+ 105 C
Operating temperature range	- 40 C
Operating-Supply-Current	0.8 uA
Battery-Backup-Switching	No Backup
Part-#-Aliases	MAX809SQ293D2T1G
Supply-Voltage-Max	5.5 V
Supply-Voltage-Min	1 V
Package-Case	SC-70-3
Watchdog-Timers	No Watchdog
Threshold-Voltage	1.2 V to 4.9 V
Input Monitoring	1 Input
Manual-Reset	No Manual Reset
Chip-Enable-Signals	No Chip Enable
Power-Fail-Detection	No
Reset-Delay-Time	3.3 ms
Overvoltage-Threshold	2.96 V
Undervoltage-Threshold	2.93 V

Descriptions

Supervisor Push-Pull, Totem Pole 1 Channel SC-70-3 (SOT323)

Processor Supervisor 2.93V 1 Active Low/Push-Pull 3-Pin SC-70 T/R

Supervisory Circuits ANA 2.93V MC RESET
