NCP803SN400T1G IC SUPERVISOR 1 CHANNEL SOT23-3 onsemi

Name: NCP803SN400T1G IC SUPERVISOR 1 CHANNEL SOT233 onsemi
Brand: onsemi
Price: 1 USD

Brand Name : onsemi

Model Number : NCP803SN400T1G

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Type : Simple Reset/Power-On Reset

Number of Voltages Monitored : 1

Voltage - Threshold : 4V

Output : Open Drain or Open Collector

Reset : Active Low

Reset Timeout : 140ms Minimum

Operating Temperature : -40°C ~ 105°C (TJ)

Mounting Type : Surface Mount

Package / Case : TO-236-3, SC-59, SOT-23-3

Supplier Device Package : SOT-23-3 (TO-236)

Contact Now

Product Details

The MAX803/NCP803 is a cost−effective system supervisor circuit designed to monitor VCC in digital systems and provide a reset signal to the host processor when necessary. No external components are required.

The MAX803/NCP803 is optimized to reject fast transient glitches on the VCC line. Low supply current of 0.5 μA (VCC = 3.2 V) make these devices suitable for battery powered applications.

Features

• Precision VCC Monitor for 1.5 V, 2.5 V, 3.0 V, 3.3 V, and 5.0 V Supplies
• Precision Monitoring Voltages from 1.2 V to 4.9 V Available in 100 mV Steps
• Four Guaranteed Minimum Power−On Reset Pulse Width Available (1 ms, 20 ms, 100 ms, and 140 ms)
• RESET Output Guaranteed to VCC = 1.0 V
• Low Supply Current
• VCC Transient Immunity
• No External Components
• Wide Operating Temperature: −40°C to 105°C
• These Devices are Pb−Free and are RoHS Compliant

Typical Applications

• Computers
• Embedded Systems
• Battery Powered Equipment
• Critical Microprocessor Power Supply Monitoring

Specifications

Attribute	Attribute Value
Manufacturer	onsemi
Product Category	Supervisors
Series	NCP803
Type	Simple Reset/Power-On Reset
Packaging	Alternate Packaging
Unit-Weight	0.050717 oz
Mounting-Style	SMD/SMT
Package-Case	TO-236-3, SC-59, SOT-23-3
Operating-Temperature	-40°C ~ 105°C (TJ)
Mounting-Type	Surface Mount
Output-Type	Open Collector / Drain
Supplier-Device-Package	SOT-23-3 (TO-236)
Output	Open Drain or Open Collector
Reset	Active Low
Voltage monitoring relays	1
Reset-Timeout	140 ms Minimum
Voltage-Threshold	4V
Maximum Operating Temperature	+ 105 C
Operating-Supply-Current	0.5 uA
Battery-Backup-Switching	No Backup
Supply-Voltage-Max	5.5 V
Supply-Voltage-Min	1.2 V
Package-Case	SOT-23-3
Watchdog-Timers	No Watchdog
Threshold-Voltage	4 V
Input Monitoring	1 Input
Manual-Reset	Manual Reset
Power-Fail-Detection	Yes
Reset-Delay-Time	140 ms
Overvoltage-Threshold	4.06 V
Undervoltage-Threshold	3.94 V

Descriptions

Supervisor Open Drain or Open Collector 1 Channel SOT-23-3 (TO-236)

Processor Supervisor 4V 1 Active Low/Open Drain 3-Pin SOT-23 T/R

Supervisory Circuits 4.00V RESET MONITOR

China NCP803SN400T1G IC SUPERVISOR 1 CHANNEL SOT23-3 onsemi factory

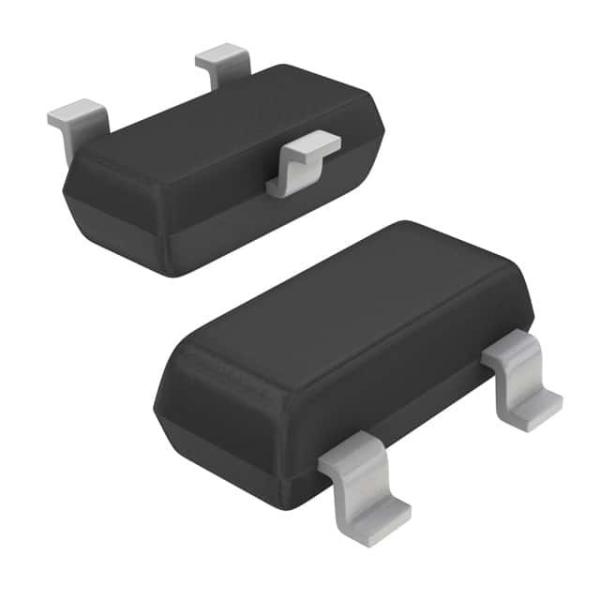

NCP803SN400T1G IC SUPERVISOR 1 CHANNEL SOT23-3 onsemi Images
