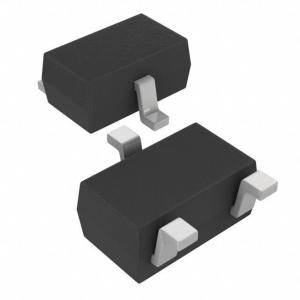

TCM809RVLB713 IC SUPERVISOR 1 CHANNEL SC70-3 Microchip Technology

Name: TCM809RVLB713 IC SUPERVISOR 1 CHANNEL SC703 Microchip Technology
Brand: Microchip Technology
Price: 1 USD

Brand Name : Microchip Technology

Model Number : TCM809RVLB713

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Type : Simple Reset/Power-On Reset

Number of Voltages Monitored : 1

Voltage - Threshold : 2.63V

Output : Push-Pull, Totem Pole

Reset : Active Low

Reset Timeout : 140ms Minimum

Operating Temperature : -40°C ~ 125°C (TA)

Mounting Type : Surface Mount

Package / Case : SC-70, SOT-323

Supplier Device Package : SC-70-3

Contact Now

Product Details

General Description

The TCM809 and TCM810 are cost-effective system supervisor circuits designed to monitor VDD in digital systems and provide a reset signal to the host processor, when necessary. No external components are required.

Features

• Precision VDD Monitor for 2.5V, 3.0V, 3.3V, 5.0V Nominal System Voltage Supplies
• 140 msec Minimum RESET Time Out Period
• RESET Output to VDD = 1.0V (TCM809)
• Low Supply Current, 9 µA (typ.)
• VDD Transient Immunity
• Small 3-Pin SC-70 and SOT-23B Packages
• No External Components
• Push-Pull RESET Output
• Temperature Range:
- Industrial, SC-70 (E): -40°C to +85°C
- Extended, SOT-23, SC-70 (V): -40°C to +125°C

Applications

• Computers
• Embedded Systems
• Battery-Powered Equipment
• Critical Microcontroller Power Supply Monitoring
• Automotive

Specifications

Attribute	Attribute Value
Manufacturer	Microchip Technology
Product Category	Supervisors
Series	-
Type	Simple Reset/Power-On Reset
Packaging	Alternate Packaging
Unit-Weight	0.000219 oz
Mounting-Style	SMD/SMT
Package-Case	SC-70, SOT-323
Operating-Temperature	-40°C ~ 125°C (TA)
Mounting-Type	Surface Mount
Output-Type	Active Low Push-Pull
Supplier-Device-Package	SC-70-3
Output	Push-Pull, Totem Pole
Reset	Active Low
Voltage monitoring relays	1
Reset-Timeout	140 ms Minimum
Voltage-Threshold	2.63V
Pd-Power-Dissipation	174 mW
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Operating-Supply-Current	9 uA
Battery-Backup-Switching	No Backup
Supply-Voltage-Max	5.5 V
Supply-Voltage-Min	1 V
Package-Case	SC-70-3
Watchdog-Timers	No Watchdog
Threshold-Voltage	2.5 V 3 V 3.3 V 5 V
Input Monitoring	1 Input
Manual-Reset	No Manual Reset
Chip-Enable-Signals	No Chip Enable
Power-Fail-Detection	No
Reset-Delay-Time	560 ms
Overvoltage-Threshold	2.66 V
Undervoltage-Threshold	2.59 V

Descriptions

Supervisor Push-Pull, Totem Pole 1 Channel SC-70-3

Processor Supervisor 2.63V 1 Active Low/Push-Pull 3-Pin SC-70 T/R

Supervisory Circuits Microprocessor 2.63V
