TPS3613-01DGS IC SUPERVISOR 1 CHANNEL 10VSSOP Texas Instruments

Name: TPS361301DGS IC SUPERVISOR 1 CHANNEL 10VSSOP Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : TPS3613-01DGS

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Type : Battery Backup Circuit

Number of Voltages Monitored : 1

Voltage - Threshold : Adjustable/Selectable

Output : Push-Pull, Totem Pole

Reset : Active High/Active Low

Reset Timeout : 60ms Minimum

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)

Supplier Device Package : 10-VSSOP

Contact Now

Product Details

The Texas Instruments TPS3613-01DGS is a high-performance supervisor circuit designed for battery backup applications. It features a wide operating temperature range of -40°C to 85°C (TA) and a minimum response time of 60 ms. The circuit is push-pull, totem pole active high/active low and comes in a 10-VSSOP package. It is adjustable/selectable and provides a reliable and efficient battery backup solution. The TPS3613-01DGS is ideal for applications that require a reliable and efficient battery backup solution.

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Supervisors
Series	TPS3613-01
Type	Battery Backup Circuit
Packaging	Tube Alternate Packaging
Unit-Weight	0.000663 oz
Mounting-Style	SMD/SMT
Package-Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Operating-Temperature	-40°C ~ 85°C (TA)
Mounting-Type	Surface Mount
Output-Type	Push-Pull
Supplier-Device-Package	10-VSSOP
Output	Push-Pull, Totem Pole
Reset	Active High/Active Low
Voltage monitoring relays	1
Reset-Timeout	60 ms Minimum
Voltage-Threshold	Adjustable/Selectable
Pd-Power-Dissipation	424 mW
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Operating-Supply-Current	20 uA
Battery-Backup-Switching	Backup
Supply-Voltage-Max	5.5 V
Supply-Voltage-Min	1.65 V
Package-Case	VSSOP-10
Watchdog-Timers	No Watchdog
Threshold-Voltage	Adjustable
Input Monitoring	1 Input
Manual-Reset	Manual Reset
Chip-Enable-Signals	Chip Enable
Power-Fail-Detection	No
Reset-Delay-Time	100 ms
Overvoltage-Threshold	1.17 V
Undervoltage-Threshold	Adjustable

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
TPS3613-01DGSG4 Power Circuits	Adjustable Battery-Backup Supervisor for RAM Retention 10-VSSOP -40 to 85	Texas Instruments	TPS3613-01DGS vs TPS3613-01DGSG4
TPS3613-01DGSRG4 Power Circuits	Adjustable Battery-Backup Supervisor for RAM Retention 10-VSSOP -40 to 85	Texas Instruments	TPS3613-01DGS vs TPS3613-01DGSRG4
TPS3613-01DGSR Power Circuits	Adjustable Battery-Backup Supervisor for RAM Retention 10-VSSOP -40 to 85	Texas Instruments	TPS3613-01DGS vs TPS3613-01DGSR

Descriptions

Processor Supervisor 1.15V 1 Active High/Active Low 10-Pin VSSOP Tube

Supervisory Circuits Adj Battery-Backup for RAM Retention

China TPS3613-01DGS IC SUPERVISOR 1 CHANNEL 10VSSOP Texas Instruments factory

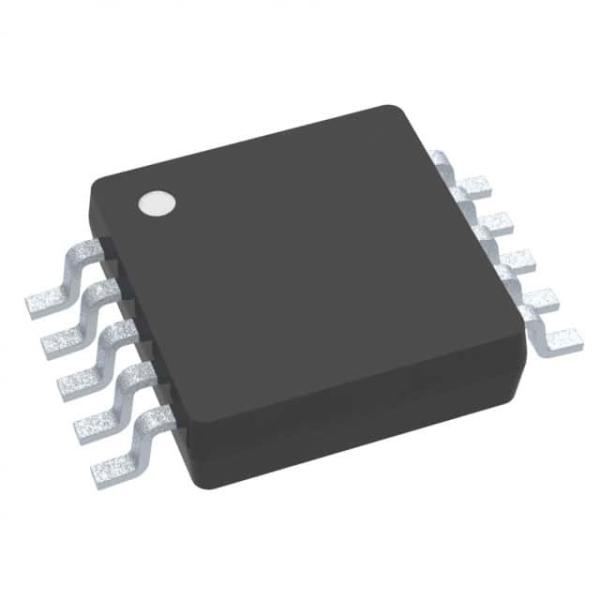

TPS3613-01DGS IC SUPERVISOR 1 CHANNEL 10VSSOP Texas Instruments Images
