TPS61256YFFR IC REG BOOST 5V 2.4A 9DSBGA Texas Instruments

Name: TPS61256YFFR IC REG BOOST 5V 24A 9DSBGA Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : TPS61256YFFR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Function : Step-Up

Output Configuration : Positive

Topology : Boost

Output Type : Fixed

Number of Outputs : 1

Voltage - Input (Min) : 2.5V

Voltage - Input (Max) : 4.85V

Voltage - Output (Min/Fixed) : 5V

Voltage - Output (Max) : -

Current - Output : 2.4A (Switch)

Frequency - Switching : 3.5MHz

Synchronous Rectifier : Yes

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 9-UFBGA, DSBGA

Supplier Device Package : 9-DSBGA

Contact Now

Product Details

Description: The TPS61256YFFR is a DC switching regulator from Texas Instruments Integrated Circuits (ICs). It is part of the TPS61256 series and has a Step-Up function. It is a surface mount device with a 3.5MHz frequency switching and a positive output configuration. It is packaged in a DSBGA-9 case and has a maximum operating temperature of +85°C. It is a voltage converter with a 9-DSBGA (1.2x1.3) supplier device package and a boost topology. The input voltage maximum is 5.5V and the output voltage maximum is 6V.

Features:
• Step-Up function
• Surface mount device
• 3.5MHz frequency switching
• Positive output configuration
• DSBGA-9 case
• Maximum operating temperature of +85°C
• Voltage converter
• 9-DSBGA (1.2x1.3) supplier device package
• Boost topology
• Input voltage maximum of 5.5V
• Output voltage maximum of 6V

Applications:
• Battery-powered devices
• Portable electronics
• Automotive electronics
• Industrial electronics
• Power management systems

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	DC Switching Regulators
Series	TPS61256
Type	Voltage Converter
Packaging	Alternate Packaging
Mounting-Style	SMD/SMT
Operating-Temperature-Range	- 40 C to + 85 C
Package-Case	9-UFBGA, DSBGA
Operating-Temperature	-40°C ~ 85°C (TA)
Mounting-Type	Surface Mount
Output-Type	Fixed
Function	Step-Up
Supplier-Device-Package	9-DSBGA (1.2x1.3)
Number-of-Outputs	1 Output
Topology	Boost
Frequency-Switching	3.5MHz
Current-Output	1.9A (Switch)
Output-Configuration	Positive
Output Voltage	5V
Voltage-Output-Max	-
Synchronous-Rectifier	Yes
Voltage-Input-Min	2.5V
Voltage-Input-Max	4.85V
Shutdown	Shutdown
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Output-Voltage	5 V
Operating-Supply-Current	30 uA
Input-Voltage	2.5 V to 4.85 V
Input-Voltage-MAX	4.85 V
Output-Current	900 mA
Switching-Frequency	3.5 MHz
Input-Voltage-MIN	2.5 V
Supply-Voltage-Min	2.5 V
Package-Case	DSBGA-9

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
TPS61253YFFR Power Circuits	3.5MHz, 1500mA peak loading current, high efficiency step-up converter in chip scale packaging 9-DSBGA -40 to 85	Texas Instruments	TPS61256YFFR vs TPS61253YFFR
TPS61253YFFT Power Circuits	3.5MHz, 1500mA peak loading current, high efficiency step-up converter in chip scale packaging 9-DSBGA -40 to 85	Texas Instruments	TPS61256YFFR vs TPS61253YFFT
TPS61256YFFT Power Circuits	3.5MHz, 900mA peak loading current, high efficiency step-up converter in chip scale packaging 9-DSBGA -40 to 85	Texas Instruments	TPS61256YFFR vs TPS61256YFFT

Descriptions

Boost Switching Regulator IC Positive Fixed 5V 1 Output 1.9A (Switch) 9-UFBGA, DSBGA

Conv DC-DC 2.5V to 4.85V Step Up Single-Out 5V 9-Pin DSBGA T/R

Voltage Regulators - Switching Regulators 3.5-MHz High Eff Step-Up Converter

China TPS61256YFFR IC REG BOOST 5V 2.4A 9DSBGA Texas Instruments factory

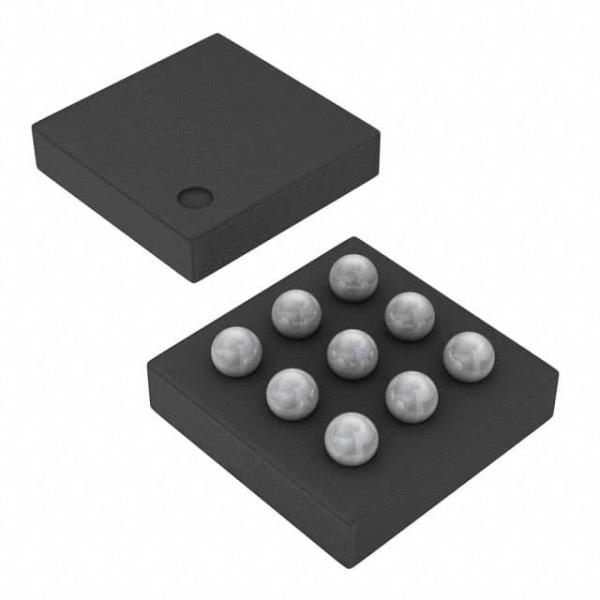

TPS61256YFFR IC REG BOOST 5V 2.4A 9DSBGA Texas Instruments Images
