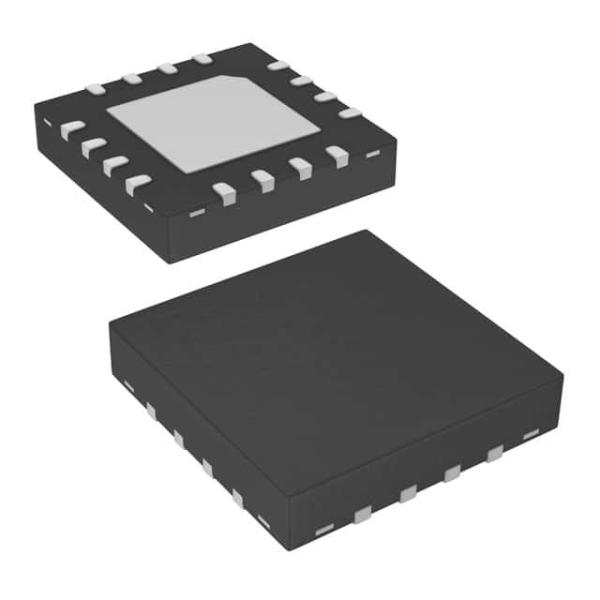

ISL8014AIRZ-T IC REG BUCK ADJUSTABLE 4A 16QFN Renesas Electronics America Inc

Brand Name : Renesas Electronics America Inc

Model Number : ISL8014AIRZ-T

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Function : Step-Down

Output Configuration : Positive

Topology : Buck

Output Type : Adjustable

Number of Outputs : 1

Voltage - Input (Min) : 2.8V

Voltage - Input (Max) : 5.5V

Voltage - Output (Min/Fixed) : 0.8V

Voltage - Output (Max) : 5.5V

Current - Output : 4A

Frequency - Switching : 1MHz

Synchronous Rectifier : Yes

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 16-VQFN Exposed Pad

Supplier Device Package : 16-QFN (4x4)

Contact Now

Product Details

The ISL8014A is a high efficiency, monolithic, synchronous step-down DC/DC converter that can deliver up to 4A continuous output current from a 2.8V to 5.5V input supply. It uses a current control architecture to deliver very low duty cycle operation at high frequency with fast transient response and excellent loop stability.

Features

• High Efficiency Synchronous Buck Regulator with up to 97% Efficiency
• Power-Good (PG) Output with a 1ms Delay
• 2.8V to 5.5V Supply Voltage
• 3% Output Accuracy Over-Temperature/Load/Line
• 4A Output Current
• Pin Compatible to ISL8013A
• Start-up with Pre-Biased Output
• Internal Soft-Start - 1ms
• Soft-Stop Output Discharge During Disabled
• 35µA Quiescent Supply Current in PFM Mode
• Selectable Forced PWM Mode and PFM Mode
• External Synchronization up to 4MHz
• Less than 1µA Logic Controlled Shutdown Current
• 100% Maximum Duty Cycle
• Internal Current Mode Compensation
• Peak Current Limiting and Hiccup Mode Short Circuit Protection
• Over-Temperature Protection
• Small 16 Ld 4mmx4mm QFN
• Pb-Free (RoHS Compliant)

Applications*(see page 14)

• DC/DC POL Modules
• µC/µP, FPGA and DSP Power
• Plug-in DC/DC Modules for Routers and Switchers
• Portable Instruments
• Test and Measurement Systems
• Li-ion Battery Powered Devices
• Small Form Factor (SFP) Modules
• Bar Code Readers

Specifications

Attribute Attribute Value
Manufacturer Renesas
Product Category DC Switching Regulators
Series ISL8014A
Type Step Down
Packaging Tape & Reel (TR) Alternate Packaging
Mounting-Style SMD/SMT
Package-Case 16-VQFN Exposed Pad
Operating-Temperature -40°C ~ 85°C (TA)
Mounting-Type Surface Mount
Output-Type Adjustable
Function Step-Down
Supplier-Device-Package 16-QFN (4x4)
Number-of-Outputs 1 Output
Topology Buck
Frequency-Switching 1MHz
Current-Output 4A
Output-Configuration Positive
Output Voltage 0.8V
Voltage-Output-Max 5.5V
Synchronous-Rectifier Yes
Voltage-Input-Min 2.8V
Voltage-Input-Max 5.5V
Maximum Operating Temperature + 85 C
Operating temperature range - 40 C
Output-Voltage 0.8 V
Input-Voltage-MAX 5.5 V
Output-Current Adjustable
Switching-Frequency 1000 kHz
Input-Voltage-MIN 2.8 V
Package-Case QFN-EP-16

Descriptions

Conv DC-DC 2.8V to 5.5V Step Down Single-Out 0.8V 4A 16-Pin QFN EP T/R
Voltage Regulators - Switching Regulators 4A LW QUIESCENT CUR 1 6MHZ 4X4 16LD
