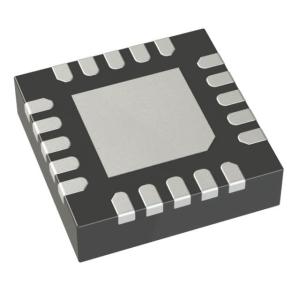

LTC3562EUD#PBF IC REG BUCK ADJ/PROG QD 20QFN Analog Devices Inc.

Name: LTC3562EUDPBF IC REG BUCK ADJPROG QD 20QFN Analog Devices Inc
Brand: Analog Devices Inc.
Price: 1 USD

Brand Name : Analog Devices Inc.

Model Number : LTC3562EUD#PBF

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Function : Step-Down

Output Configuration : Positive

Topology : Buck

Output Type : Adjustable (Programmable)

Number of Outputs : 4

Voltage - Input (Min) : 2.7V

Voltage - Input (Max) : 5.5V

Voltage - Output (Min/Fixed) : 0.425V (0.6V)

Voltage - Output (Max) : 0.8V (3.78V)

Current - Output : 400mA, 600mA

Frequency - Switching : 2.25MHz

Synchronous Rectifier : Yes

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 20-WFQFN Exposed Pad

Supplier Device Package : 20-QFN (3x3)

Contact Now

Product Details

DESCRIPTION

The LTC®3562 is a quad high efficiency monolithic synchronous step-down regulator with an I2C interface. Two regulators are externally adjustable and can have their feedback voltages programmed between 425mV and 800mV in 25mV steps (Type A). The other two regulators are fixed output regulators whose output voltages can be programmed between 600mV and 3.775V in 25mV steps (Type B). All four regulators operate independently and can be put into pulse skip, LDO, Burst Mode operation, or forced Burst Mode operation through I2C control. The Type-A regulators have separate RUN pins that can be enabled if I2C control is unavailable.

FEATURES

■ Four Independent I2C Controllable Step-Down
Regulators (2 × 600mA, 2 × 400mA)
■ Two I2C Programmable Feedback Voltage
Regulators (R600A, R400A): VFB 425mV to 800mV
■ Two I2C Programmable Output Voltage Regulators
(R600B, R400B): VOUT 600mV to 3.775V
■ Programmable Modes: Pulse Skip, LDO, Burst Mode,®
Forced Burst Mode Operation
■ Quiescent Current < 100μA (All Regulators Enabled
in LDO Mode)
■ Fixed 2.25MHz Switching Frequency (Pulse Skip
Mode)
■ Slew Limiting Reduces Switching Noise
■ Power-On Reset Output for Regulator R600A
■ Small, Thermally Enhanced, 20-Lead 3mm × 3mm
QFN Package

APPLICATIONS

■ Miscellaneous Handheld Applications with Multiple Supply Rails
■ Personal Information Appliances
■ Wireless and DSL Modems
■ Digital Still Cameras
■ MP3 Players
■ Portable Instruments

Specifications

Attribute	Attribute Value
Manufacturer	Analog Devices / Linear Technology
Product Category	DC Switching Regulators
Series	-
Packaging	Tube Alternate Packaging
Package-Case	20-WFQFN Exposed Pad
Operating-Temperature	-40°C ~ 85°C (TA)
Mounting-Type	Surface Mount
Output-Type	Adjustable (Programmable)
Function	Step-Down
Supplier-Device-Package	20-QFN (3x3)
Number-of-Outputs	4 Outputs
Topology	Buck
Frequency-Switching	2.25MHz
Current-Output	400mA, 600mA
Output-Configuration	Positive
Output Voltage	0.425V (0.6V)
Voltage-Output-Max	0.8V (3.78V)
Synchronous-Rectifier	Yes
Voltage-Input-Min	2.7V
Voltage-Input-Max	5.5V

Descriptions

Buck Switching Regulator IC Positive Adjustable (Programmable) 0.425V (0.6V) 4 Output 400mA, 600mA 20-WFQFN Exposed Pad

LTC3562 - I2C Quad Synchronous Step-Down DC/DC Regulator 2 x 600mA, 2 x 400mA
