MC33063ADRJR IC REG BUCK BST ADJ 1.5A 8SON Texas Instruments

Name: MC33063ADRJR IC REG BUCK BST ADJ 15A 8SON Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : MC33063ADRJR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Function : Step-Up, Step-Down

Output Configuration : Positive or Negative

Topology : Buck, Boost

Output Type : Adjustable

Number of Outputs : 1

Voltage - Input (Min) : 3V

Voltage - Input (Max) : 40V

Voltage - Output (Min/Fixed) : 1.25V

Voltage - Output (Max) : 40V (Switch)

Current - Output : 1.5A (Switch)

Frequency - Switching : 100kHz

Synchronous Rectifier : No

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 8-WDFN Exposed Pad

Supplier Device Package : 8-SON (4x4)

Contact Now

Product Details

Description: The MC33063ADRJR is a DC switching regulator from Texas Instruments Integrated Circuits (ICs). It is part of the MC33063A series and is a surface mount device with a unit weight of 0.000384 oz. It is a step-up and step-down regulator with an adjustable output type and a frequency switching of 100kHz. It has one output with a current output of 1.5A (Switch) and a topology of Buck, Boost. It is packaged in an 8-WDFN Exposed Pad.

Features:
• Step-up and step-down regulator
• Adjustable output type
• Frequency switching of 100kHz
• Current output of 1.5A (Switch)
• Topology of Buck, Boost
• 8-WDFN Exposed Pad package

Applications:
• Automotive
• Industrial
• Consumer electronics
• Portable devices
• Power management

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	DC Switching Regulators
Series	MC33063A
Type	Charge Pump
Packaging	Alternate Packaging
Unit-Weight	0.000384 oz
Mounting-Style	SMD/SMT
Package-Case	8-WDFN Exposed Pad
Operating-Temperature	-40°C ~ 85°C (TA)
Mounting-Type	Surface Mount
Output-Type	Adjustable
Function	Step-Up, Step-Down
Supplier-Device-Package	8-SON Exposed Pad (4x4)
Number-of-Outputs	1 Output
Topology	Buck, Boost
Frequency-Switching	100kHz
Current-Output	1.5A (Switch)
Output-Configuration	Positive or Negative
Output Voltage	1.25V
Voltage-Output-Max	40V (Switch)
Synchronous-Rectifier	No
Voltage-Input-Min	3V
Voltage-Input-Max	40V
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Output-Voltage	1.25 V to 40 V
Input-Voltage-MAX	40 V
Output-Current	1.5 A
Switching-Frequency	100 kHz
Input-Voltage-MIN	3 V
Load-Regulation	10 mV +/- 0.017 % 3 mV +/- 0.03 %
Package-Case	WSON-8

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
MC33063ADRJRG4 Power Circuits	1.5-A Peak Boost/Buck/Inverting Switching Regulator 8-SON -40 to 85	Texas Instruments	MC33063ADRJR vs MC33063ADRJRG4

Descriptions

Buck, Boost Switching Regulator IC Positive or Negative Adjustable 1.25V 1 Output 1.5A (Switch) 8-WDFN Exposed Pad

Conv DC-DC 3V to 40V Inv/Step Up/Step Down Single-Out 1.25V to 40V 1.5A 8-Pin WSON EP T/R

Voltage Regulators - Switching Regulators 1.5-A Peak Boost/ Buck/Inverting

China MC33063ADRJR IC REG BUCK BST ADJ 1.5A 8SON Texas Instruments factory

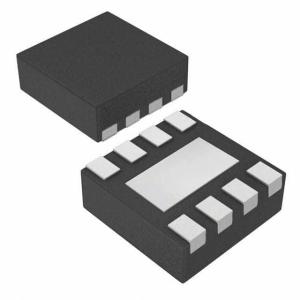

MC33063ADRJR IC REG BUCK BST ADJ 1.5A 8SON Texas Instruments Images
