LM324N IC OPAMP GP 4 CIRCUIT 14DIP Texas Instruments

Name: LM324N IC OPAMP GP 4 CIRCUIT 14DIP Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : LM324N

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : General Purpose

Number of Circuits : 4

Output Type : -

Slew Rate : -

Gain Bandwidth Product : 1.2 MHz

-3db Bandwidth : -

Current - Input Bias : 45 nA

Voltage - Input Offset : 2 mV

Current - Supply : 1.5mA

Current - Output / Channel : 40 mA

Voltage - Supply Span (Min) : 3 V

Voltage - Supply Span (Max) : 32 V

Operating Temperature : 0°C ~ 70°C (TJ)

Mounting Type : Through Hole

Package / Case : 14-DIP (0.300", 7.62mm)

Supplier Device Package : 14-PDIP

Contact Now

Product Details

Description

The LM324/LM324A, LM2902/LM2902A consist of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide voltage range. operation from split power supplies is also possible so long as the difference between the two supplies is 3 volts to 32 volts. Application areas include transducer amplifier, DC gain blocks and all the conventional OP Amp circuits which now can be easily implemented in single power supply systems.

Features

• Internally Frequency Compensated for Unity Gain
• Large DC Voltage Gain: 100dB
• Wide Power Supply Range:
LM324/LM324A : 3V~32V (or ±1.5 ~ 16V)
LM2902/LM2902A: 3V~26V (or ±1.5V ~ 13V)
• Input Common Mode Voltage Range Includes Ground
• Large Output Voltage Swing: 0V to VCC -1.5V
• Power Drain Suitable for Battery Operation

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Instrumentation Amplifier
Series	LinCMOS™
Operating-Temperature	0°C ~ 70°C (TJ)
Mounting-Type	Through Hole
Output-Type	-
Supplier-Device-Package	14-PDIP
Number-of-Circuits	4 Circuits
Current-Supply	1．5mA
Slew-Rate	-
Amplifier-Type	General Purpose
Package-Case	14-DIP (0．300" 7．62mm)
Package	Tube
Manufacturer	Texas Instruments
Gain-Bandwidth-Product	1．2 MHz
Voltage-Supply-Span-Min	3 V
Voltage-Supply-Span-Max	32 V
Product-Status	Active
Base-Product-Number	LM324
Current-Output-Channel	40 mA
Current-Input-Bias	45 nA
Voltage-Input-Offset	2 mV

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
LM324DR2G Amplifier Circuits	Operational Amplifier, Single Supply, Quad, SOIC-14 NB, 2500-REEL	ON Semiconductor	LM324N vs LM324DR2G
LM324N/NOPB Amplifier Circuits	Low power general-purpose quad operational amplifier 14-PDIP 0 to 70	Texas Instruments	LM324N vs LM324N/NOPB
NCV2902DTBR2G Amplifier Circuits	Operational Amplifier, Single Supply, Quad, TSSOP-14, 2500-REEL	ON Semiconductor	LM324N vs NCV2902DTBR2G
LM324D Amplifier Circuits	Quadruple operational amplifier 14-SOIC 0 to 70	Texas Instruments	LM324N vs LM324D
LM324DG Amplifier Circuits	Operational Amplifier, Single Supply, Quad, SOIC-14 NB, 55-TUBE	ON Semiconductor	LM324N vs LM324DG
LM324N Amplifier Circuits	Quadruple operational amplifier 14-PDIP 0 to 70	Texas Instruments	LM324N vs LM324N
CA324E Amplifier Circuits	QUAD OP-AMP, 7000uV OFFSET-MAX, 1MHz BAND WIDTH, PDIP14	Rochester Electronics LLC	LM324N vs CA324E
LM324SNG Amplifier Circuits	Operational Amplifier, Single Supply, Quad Bipolar Value Line - Quad Channel Op Amp, 25-TUBE	ON Semiconductor	LM324N vs LM324SNG
LM324DR2 Amplifier Circuits	QUAD OP-AMP, 7000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO14, SOIC-14	Rochester Electronics LLC	LM324N vs LM324DR2
LM324NG Amplifier Circuits	Operational Amplifier, Single Supply, Quad, PDIP-14, 25-TUBE	ON Semiconductor	LM324N vs LM324NG

Descriptions

General Purpose Amplifier 4 Circuit 14-PDIP

Op Amp Quad GP 卤16V/32V 14-Pin PDIP Tube

Operational Amplifiers - Op Amps Quad Operational Amp

China LM324N IC OPAMP GP 4 CIRCUIT 14DIP Texas Instruments factory

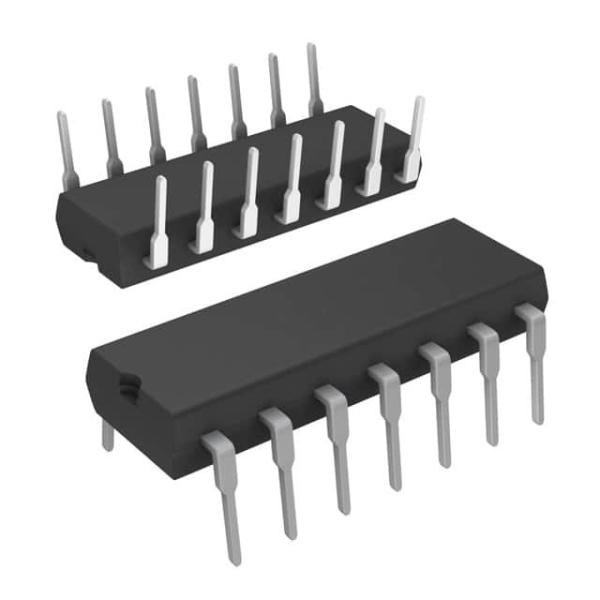

LM324N IC OPAMP GP 4 CIRCUIT 14DIP Texas Instruments Images
