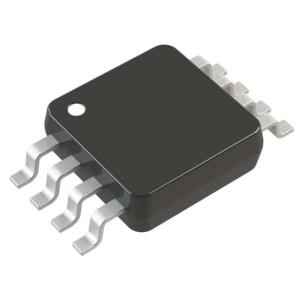

AD8542ARMZ-REEL IC OPAMP GP 2 CIRCUIT 8MSOP Analog Devices Inc.

Name: AD8542ARMZREEL IC OPAMP GP 2 CIRCUIT 8MSOP Analog Devices Inc
Brand: Analog Devices Inc.
Price: 1 USD

Brand Name : Analog Devices Inc.

Model Number : AD8542ARMZ-REEL

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : General Purpose

Number of Circuits : 2

Output Type : Rail-to-Rail

Slew Rate : 0.92V/µs

Gain Bandwidth Product : 1 MHz

-3db Bandwidth : -

Current - Input Bias : 4 pA

Voltage - Input Offset : 1 mV

Current - Supply : 45µA (x2 Channels)

Current - Output / Channel : 30 mA

Voltage - Supply Span (Min) : 2.7 V

Voltage - Supply Span (Max) : 5.5 V

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

Supplier Device Package : 8-MSOP

Contact Now

Product Details

GENERAL DESCRIPTION

The AD8541/AD8542/AD8544 are single, dual, and quad rail to-rail input and output, single-supply amplifiers featuring very low supply current and 1 MHz bandwidth. All are guaranteed to operate from a 2.7 V single supply as well as a 5 V supply. These parts provide 1 MHz bandwidth at a low current consumption of 45 μA per amplifier.
Very low input bias currents enable the AD8541/AD8542/AD8544 to be used for integrators, photodiode amplifiers, piezoelectric sensors, and other applications with high source impedance. The supply current is only 45 μA per amplifier, ideal for battery operation.
Rail-to-rail inputs and outputs are useful to designers buffering ASIC in single-supply systems. The AD8541/AD8542/AD8544 are optimized to maintain high gains at lower supply voltages, making them useful for active filters and gain stages. The AD8541/AD8542/AD8544 are specified over the extended industrial temperature range (–40°C to +125°C). The AD8541 is available in 5-lead SOT-23, 5-lead SC70, and 8-lead SOIC packages. The AD8542 is available in 8-lead SOIC, 8-lead MSOP, and 8-lead TSSOP surface-mount packages. The AD8544 is available in 14-lead narrow SOIC and 14-lead TSSOP surface mount packages. All MSOP, SC70, and SOT versions are available in tape and reel only.

FEATURES

Single-supply operation: 2.7 V to 5.5 V
Low supply current: 45 μA/amplifier
Wide bandwidth: 1 MHz
No phase reversal
Low input currents: 4 pA
Unity gain stable
Rail-to-rail input and output

APPLICATIONS
ASIC input or output amplifiers
Sensor interfaces
Piezoelectric transducer amplifiers
Medical instrumentation
Mobile communications
Audio outputs
Portable systems

Specifications

Attribute	Attribute Value
Manufacturer	Analog Devices
Product Category	Instrumentation Amplifier
Series	AD8542
Product	Precision Amplifiers
Packaging	Reel
Unit-Weight	0.004938 oz
Mounting-Style	SMD/SMT
Output-Type	Rail to Rail Input/Output
Number-of-Channels	2 Channel
Shutdown	No Shutdown
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Operating-Supply-Current	45 uA
Supply-Voltage-Max	5.5 V
Supply-Voltage-Min	2.7 V
Package-Case	MSOP-8
Ib-Input-Bias-Current	1000 pA
Vos-Input-Offset-Voltage	1 mV
PSRR-Power-Supply-Rejection-Ratio	76 dB
Output-Current-per-Channel	30 mA
CMRR-Common-Mode-Rejection-Ratio	48 dB
GBP-Gain-Bandwidth-Product	1 MHz
SR-Slew-Rate	0.92 V/us
en-Input-Voltage-Noise-Density	42 nV/sqrt Hz at 5 V
Voltage-Gain-dB	92.04 dB

Descriptions

OP Amp Dual GP R-R I/O 5.5V 8-Pin MSOP T/R

Precision Amplifiers Gen-Purp CMOS Dual RR
