TL084CPT IC OPAMP JFET 4 CIRCUIT 14TSSOP STMicroelectronics

Name: TL084CPT IC OPAMP JFET 4 CIRCUIT 14TSSOP STMicroelectronics
Brand: STMicroelectronics
Price: 1 USD

Brand Name : STMicroelectronics

Model Number : TL084CPT

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : J-FET

Number of Circuits : 4

Output Type : -

Slew Rate : 16V/µs

Gain Bandwidth Product : 4 MHz

-3db Bandwidth : -

Current - Input Bias : 20 pA

Voltage - Input Offset : 3 mV

Current - Supply : 1.4mA (x4 Channels)

Current - Output / Channel : 40 mA

Voltage - Supply Span (Min) : 6 V

Voltage - Supply Span (Max) : 36 V

Operating Temperature : 0°C ~ 70°C

Mounting Type : Surface Mount

Package / Case : 14-TSSOP (0.173", 4.40mm Width)

Supplier Device Package : 14-TSSOP

Contact Now

Product Details

Description

The TL084, TL084A and TL084B are high-speed JFET input quad operational amplifiers incorporating well matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit.
The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.

Features

■ Wide common-mode (up to VCC⁺) and differential voltage range
■ Low input bias and offset current
■ Output short-circuit protection
■ High input impedance JFET input stage
■ Internal frequency compensation
■ Latch up free operation
■ High slew rate: 16V/µs (typ)

Specifications

Attribute	Attribute Value
Manufacturer	STMicroelectronics
Product Category	Instrumentation Amplifier
Series	TL084
Product	Operational Amplifiers
Packaging	Reel
Unit-Weight	0.004949 oz
Mounting-Style	SMD/SMT
Technology	BiFET
Number-of-Channels	4 Channel
Amplifier-Type	High Speed Amplifier
Shutdown	No Shutdown
Maximum Operating Temperature	+ 70 C
Operating temperature range	0 C
Operating-Supply-Current	2.5 mA
Supply-Voltage-Max	36 V
Supply-Voltage-Min	6 V
Package-Case	TSSOP-14
Ib-Input-Bias-Current	200 pA
Vos-Input-Offset-Voltage	10 mV
PSRR-Power-Supply-Rejection-Ratio	70 dB
Output-Current-per-Channel	40 mA
CMRR-Common-Mode-Rejection-Ratio	70 dB
GBP-Gain-Bandwidth-Product	4 MHz
SR-Slew-Rate	16 V/us
en-Input-Voltage-Noise-Density	15 nV/sqrt Hz
Maximum-Dual-Supply-Voltage	+/- 18 V
Minimum-Dual-Supply-Voltage	+/- 3 V

Descriptions

J-FET Amplifier 4 Circuit 14-TSSOP

Op Amp Quad GP 卤18V 14-Pin TSSOP T/R

Operational Amplifiers - Op Amps Quad Gen Purp JFET

China TL084CPT IC OPAMP JFET 4 CIRCUIT 14TSSOP STMicroelectronics factory

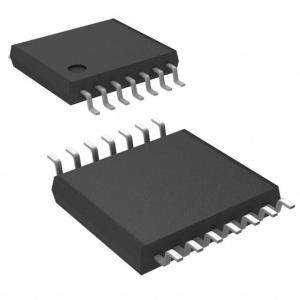

TL084CPT IC OPAMP JFET 4 CIRCUIT 14TSSOP STMicroelectronics Images
