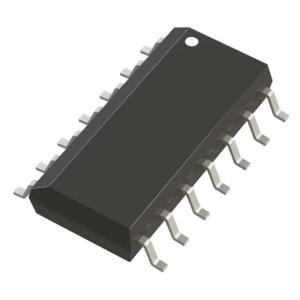

AD8534ARZ-REEL IC OPAMP GP 4 CIRCUIT 14SOIC Analog Devices Inc.

Name: AD8534ARZREEL IC OPAMP GP 4 CIRCUIT 14SOIC Analog Devices Inc
Brand: Analog Devices Inc.
Price: 1 USD

Brand Name : Analog Devices Inc.

Model Number : AD8534ARZ-REEL

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : General Purpose

Number of Circuits : 4

Output Type : Rail-to-Rail

Slew Rate : 5V/µs

Gain Bandwidth Product : 3 MHz

-3db Bandwidth : -

Current - Input Bias : 5 pA

Voltage - Input Offset : 25 mV

Current - Supply : 750µA (x4 Channels)

Current - Output / Channel : 250 mA

Voltage - Supply Span (Min) : 2.7 V

Voltage - Supply Span (Max) : 6 V

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : 14-SOIC (0.154", 3.90mm Width)

Supplier Device Package : 14-SOIC

Contact Now

Product Details

Description:
The AD8534ARZ-REEL is a precision instrumentation amplifier with low input bias current, high common-mode rejection ratio, high power supply rejection ratio, and low input voltage noise density.

Features:
• Low input bias current (Ib): 50 pA
• High common-mode rejection ratio (CMRR): 47 dB
• High power supply rejection ratio (PSRR): 45 dB
• Low input voltage noise density en: 45 nV/sqrt Hz @ 5 V
• Unit weight: 0.011923 oz
• Mounting style: SMD/SMT
• Slew rate: 5 V/us @ 5 V
• Maximum operating temperature: + 85 C
• Supply voltage: ±2.5 V to ±5.5 V
• Package type: SOIC-14

Applications: The AD8534ARZ-REEL is suitable for industrial, instrumentation, and medical applications, such as low distortion line transducers, medical vital-sign meters, and hand-held digital multimeters.

Specifications

Attribute	Attribute Value
Manufacturer	Analog Devices
Product Category	Instrumentation Amplifier
Series	AD8534
Product	Precision Amplifiers
Packaging	Reel
Unit-Weight	0.011923 oz
Mounting-Style	SMD/SMT
Output-Type	Rail to Rail Input/Output
Number-of-Channels	4 Channel
Shutdown	No Shutdown
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Operating-Supply-Current	5 mA
Supply-Voltage-Max	6 V
Supply-Voltage-Min	3 V
Package-Case	SOIC-14
Ib-Input-Bias-Current	50 pA
Vos-Input-Offset-Voltage	25 mV
PSRR-Power-Supply-Rejection-Ratio	55 dB
CMRR-Common-Mode-Rejection-Ratio	47 dB
GBP-Gain-Bandwidth-Product	3 MHz
SR-Slew-Rate	5 V/us at 5 V
en-Input-Voltage-Noise-Density	45 nV/sqrt Hz at 5 V
Voltage-Gain-dB	98.06 dB

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
AD8534ARUZ Amplifier Circuits	250 mA Output, Low Cost, Quad Single-Supply Op Amp	Analog Devices Inc	AD8534ARZ-REEL vs AD8534ARUZ
AD8534ARU Amplifier Circuits	QUAD OP-AMP, 30000 uV OFFSET-MAX, 2.2 MHz BAND WIDTH, PDSO14, MO-153AB-1, TSSOP-14	Rochester Electronics LLC	AD8534ARZ-REEL vs AD8534ARU
AD8534AR-REEL Amplifier Circuits	QUAD OP-AMP, 30000 uV OFFSET-MAX, 2.2 MHz BAND WIDTH, PDSO14, MS-012AB, SOIC-14	Rochester Electronics LLC	AD8534ARZ-REEL vs AD8534AR-REEL
AD8534ARZ Amplifier Circuits	QUAD OP-AMP, 30000 uV OFFSET-MAX, 2.2 MHz BAND WIDTH, PDSO14, LEAD FREE, MS-012AB, SOIC-14	Rochester Electronics LLC	AD8534ARZ-REEL vs AD8534ARZ
AD8534AR Amplifier Circuits	IC QUAD OP-AMP, 30000 uV OFFSET-MAX, 2.2 MHz BAND WIDTH, PDSO14, MS-012AB, SOIC-14, Operational Amplifier	Analog Devices Inc	AD8534ARZ-REEL vs AD8534AR
AD8534ARUZ-REEL Amplifier Circuits	QUAD OP-AMP, 30000 uV OFFSET-MAX, 2.2 MHz BAND WIDTH, PDSO14, LEAD FREE, MO-153AB-1, TSSOP-14	Rochester Electronics LLC	AD8534ARZ-REEL vs AD8534ARUZ-REEL
AD8534ARU-REEL Amplifier Circuits	QUAD OP-AMP, 30000 uV OFFSET-MAX, 2.2 MHz BAND WIDTH, PDSO14, MO-153AB-1, TSSOP-14	Rochester Electronics LLC	AD8534ARZ-REEL vs AD8534ARU-REEL

Descriptions

General Purpose Amplifier 4 Circuit Rail-to-Rail 14-SOIC

OP Amp Quad GP R-R I/O 6V Automotive 14-Pin SOIC N T/R

Precision Amplifiers 250mA Output Quad SGL-Supply
