LMV341IDCKR IC OPAMP GP 1 CIRCUIT SC70-6 Texas Instruments

Name: LMV341IDCKR IC OPAMP GP 1 CIRCUIT SC706 Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : LMV341IDCKR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : General Purpose

Number of Circuits : 1

Output Type : Rail-to-Rail

Slew Rate : 1V/µs

Gain Bandwidth Product : 1 MHz

-3db Bandwidth : -

Current - Input Bias : 1 pA

Voltage - Input Offset : 250 µV

Current - Supply : 107µA

Current - Output / Channel : 113 mA

Voltage - Supply Span (Min) : 2.5 V

Voltage - Supply Span (Max) : 5.5 V

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : 6-TSSOP, SC-88, SOT-363

Supplier Device Package : SC-70-6

Contact Now

Product Details

The LMV301 CMOS operational amplifier can operate over a power supply range from 1.8 V to 5 V and has a quiescent current of less than 200 A, maximum, making it ideal for portable battery−operated applications such as notebook computers, PDA’s and medical equipment. Low input bias current and high input impedance make it highly tolerant of high source−impedance signal−sources such as photodiodes and pH probes. In addition, the LMV301’s excellent rail−to−rail performance will enhance the signal−to−noise performance of any application together with an output stage capable of easily driving a 600 resistive load and up to 1000 pF capacitive load. The LMV301 comes in the space saving 5−pin SC−70 package with an industry−standard pinout, giving it both equivalent function and similar performance to competitive devices.

Features

•Single Supply Operation (or VS/2)
•VS from 1.8 V to 5 V
•Low Quiescent Current: 185 A, Max with VS= 1.8 V
•Rail−to−Rail Output Swing
•Low Bias Current: 35 pA, max
•Space Saving SC70−5 Package
•No Output Phase−Reversal when the Inputs are Overdriven
•These are Pb−Free Devices

Typical Applications

•Portable Battery−Powered Instruments
•Notebook Computers and PDAs
•Cell Phones and Mobile Communication
•Digital Cameras
•Photodiode Amplifiers
•Transducer Amplifiers
•Medical Instrumentation
•Consumer Products

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Instrumentation Amplifier
Series	LMV341
Product	Operational Amplifiers
Packaging	Reel
Unit-Weight	0.000088 oz
Mounting-Style	SMD/SMT
Technology	CMOS
Output-Type	Rail to Rail
Number-of-Channels	1 Channel
Amplifier-Type	Low Voltage Amplifier
Shutdown	Shutdown
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Operating-Supply-Current	170 uA
Supply-Voltage-Max	5.5 V
Supply-Voltage-Min	2.5 V
Package-Case	SC-70-6
Ib-Input-Bias-Current	120 pA
Vos-Input-Offset-Voltage	250 uV
Vcm-Common-Mode-Voltage	Negative Rail to Positive Rail - 1 V
Output-Current-per-Channel	32 mA
CMRR-Common-Mode-Rejection-Ratio	56 dB
GBP-Gain-Bandwidth-Product	1 MHz
SR-Slew-Rate	1 V/us
en-Input-Voltage-Noise-Density	39 nV/sqrt Hz
In-Input-Noise-Current-Density	0.001 pA/sqrt Hz

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
MAX4401AXT-T Amplifier Circuits	OP-AMP, 6500uV OFFSET-MAX, 0.8MHz BAND WIDTH, PDSO6, SC-70, 6 PIN	Rochester Electronics LLC	LMV341IDCKR vs MAX4401AXT-T
LMV341QDCKRQ1 Amplifier Circuits	Automotive Catalog Single Rail-To-Rail Output CMOS Operational Amplifier with Shutdown 6-SC70 -40 to 125	Texas Instruments	LMV341IDCKR vs LMV341QDCKRQ1
LMV341IDCKT Amplifier Circuits	OP-AMP, 4500uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO6, PLASTIC, SC-70, 6 PIN	Texas Instruments	LMV341IDCKR vs LMV341IDCKT
LMV341MG/NOPB Amplifier Circuits	Single w/ Shutdown/Dual/Quad Gen Purpose 2.7V Rail-to-Rail Output, 125C, Op Amps 6-SC70 -40 to 125	Texas Instruments	LMV341IDCKR vs LMV341MG/NOPB
LMV341IDCKRE4 Amplifier Circuits	Single Rail-To-Rail Output CMOS Operational Amplifier with Shutdown 6-SC70 -40 to 125	Texas Instruments	LMV341IDCKR vs LMV341IDCKRE4
LMV341IDCKRG4 Amplifier Circuits	Single Rail-To-Rail Output CMOS Operational Amplifier with Shutdown 6-SC70 -40 to 125	Texas Instruments	LMV341IDCKR vs LMV341IDCKRG4
LMV341MGX/NOPB Amplifier Circuits	Single w/ Shutdown/Dual/Quad Gen Purpose 2.7V Rail-to-Rail Output, 125C, Op Amps 6-SC70 -40 to 125	Texas Instruments	LMV341IDCKR vs LMV341MGX/NOPB
LMV341MG Amplifier Circuits	OP-AMP, 4000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO6, SC-70, 6 PIN	Texas Instruments	LMV341IDCKR vs LMV341MG
LMV341MGX Amplifier Circuits	OP-AMP, 4000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO6, SC-70, 6 PIN	Texas Instruments	LMV341IDCKR vs LMV341MGX
LMV341ICKVT Amplifier Circuits	OP-AMP, 4500uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO6, PLASTIC, SC-70, 6 PIN	Texas Instruments	LMV341IDCKR vs LMV341ICKVT

Descriptions

General Purpose Amplifier 1 Circuit Rail-to-Rail SC-70-6

OP Amp Single GP R-R O/P 5.5V 6-Pin SC-70 T/R

Operational Amplifiers - Op Amps Single Rail-To-Rail Output CMOS

China LMV341IDCKR IC OPAMP GP 1 CIRCUIT SC70-6 Texas Instruments factory

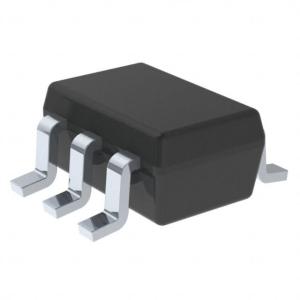

LMV341IDCKR IC OPAMP GP 1 CIRCUIT SC70-6 Texas Instruments Images
