MCP6001UT-I/OT IC OPAMP GP 1 CIRCUIT SOT23-5 Microchip Technology

Name: MCP6001UTIOT IC OPAMP GP 1 CIRCUIT SOT235 Microchip Technology
Brand: Microchip Technology
Price: 1 USD

Brand Name : Microchip Technology

Model Number : MCP6001UT-I/OT

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : General Purpose

Number of Circuits : 1

Output Type : Rail-to-Rail

Slew Rate : 0.6V/µs

Gain Bandwidth Product : 1 MHz

-3db Bandwidth : -

Current - Input Bias : 1 pA

Voltage - Input Offset : 4.5 mV

Current - Supply : 100µA

Current - Output / Channel : 23 mA

Voltage - Supply Span (Min) : 1.8 V

Voltage - Supply Span (Max) : 6 V

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : SC-74A, SOT-753

Supplier Device Package : SOT-23-5

Contact Now

Product Details

Description: The MCP6001UT-I/OT is a low power amplifier from Microchip Integrated Circuits (ICs). It is a single channel instrumentation amplifier with a SOT-23-5 package. It has a gain of 86 dB and a low input offset voltage of 4.5 mV/V.

Features:
* Low power consumption
* Single channel
* SOT-23-5 package
* Gain of 86 dB
* Low input offset voltage of 4.5 mV/V

Applications:
* Medical instrumentation
* Industrial process control
* Automotive systems
* Audio systems
* Sensor signal conditioning

Specifications

Attribute	Attribute Value
Manufacturer	Microchip Technology
Product Category	Instrumentation Amplifier
Product	Operational Amplifiers
Packaging	Reel
Unit-Weight	0.001058 oz
Mounting-Style	SMD/SMT
Technology	CMOS
Number-of-Channels	1 Channel
Amplifier-Type	Low Power Amplifier
Shutdown	No Shutdown
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Operating-Supply-Current	100 uA
Supply-Voltage-Max	5.5 V
Supply-Voltage-Min	1.8 V
Package-Case	SOT-23-5
Ib-Input-Bias-Current	1 pA
Vos-Input-Offset-Voltage	4.5 mV
PSRR-Power-Supply-Rejection-Ratio	86 dB
Output-Current-per-Channel	23 mA
CMRR-Common-Mode-Rejection-Ratio	60 dB
GBP-Gain-Bandwidth-Product	1 MHz
SR-Slew-Rate	0.6 V/us
en-Input-Voltage-Noise-Density	28 nV/sqrt Hz
In-Input-Noise-Current-Density	0.0006 pA/sqrt Hz

Descriptions

General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-5

OP Amp Single GP R-R I/O 6V Automotive 5-Pin SOT-23 T/R

Operational Amplifiers - Op Amps Single 1.8V 1MHz

China MCP6001UT-I/OT IC OPAMP GP 1 CIRCUIT SOT23-5 Microchip Technology factory

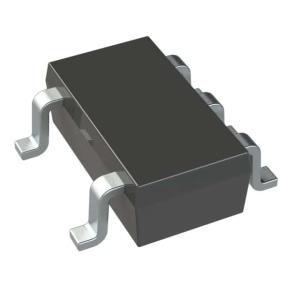

MCP6001UT-I/OT IC OPAMP GP 1 CIRCUIT SOT23-5 Microchip Technology Images
