THS4631DDA IC OPAMP GP 1 CIRC 8SOPWRPAD Texas Instruments

Name: THS4631DDA IC OPAMP GP 1 CIRC 8SOPWRPAD Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : THS4631DDA

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : General Purpose

Number of Circuits : 1

Output Type : -

Slew Rate : 1000V/µs

Gain Bandwidth Product : 210 MHz

-3db Bandwidth : 325 MHz

Current - Input Bias : 50 pA

Voltage - Input Offset : 260 µV

Current - Supply : 11.5mA

Current - Output / Channel : 98 mA

Voltage - Supply Span (Min) : 10 V

Voltage - Supply Span (Max) : 30 V

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : 8-PowerSOIC (0.154", 3.90mm Width)

Supplier Device Package : 8-SO PowerPad

Contact Now

Product Details

[ADAM TECHNOLOGIES INC.]

INTRODUCTION:

Adam Tech TS series Euro Terminal Blocks offer the advantages of our leading designed while providing one of the lowest applied cost interconnections possible. This series includes 3 variations of our standard block, a microminiature type for ultra space svings and a "screwdriverless" block which reduces assembly time and eliminates tool necessity. Our latest "pluggable" design allows teh versatility of pre-assembly and/or post-assembly on the production line or in the field.

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	IC Chips
Series	THS4631
Product	Operational Amplifiers
Packaging	Tube
Unit-Weight	0.002490 oz
Mounting-Style	SMD/SMT
Number-of-Channels	1 Channel
Topology	Voltage Feedback
Amplifier-Type	Voltage Feedback
Pd-Power-Dissipation	2300 mW
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Operating-Supply-Current	13 mA
Supply-Voltage-Max	30 V
Supply-Voltage-Min	10 V
Package-Case	HSOP-8
Ib-Input-Bias-Current	100 pA
Vos-Input-Offset-Voltage	0.5 mV
PSRR-Power-Supply-Rejection-Ratio	85 dB
CMRR-Common-Mode-Rejection-Ratio	86 dB
GBP-Gain-Bandwidth-Product	210 MHz
SR-Slew-Rate	1000 V/us
en-Input-Voltage-Noise-Density	7 nV/sqrt Hz
Voltage-Gain-dB	80 dB

Descriptions

General Purpose Amplifier 1 Circuit 8-SO PowerPad

Op Amp Single GP 卤15V/30V 8-Pin HSOP EP Tube

High Speed Operational Amplifiers High Speed FET-Input Op Amp

China THS4631DDA IC OPAMP GP 1 CIRC 8SOPWRPAD Texas Instruments factory

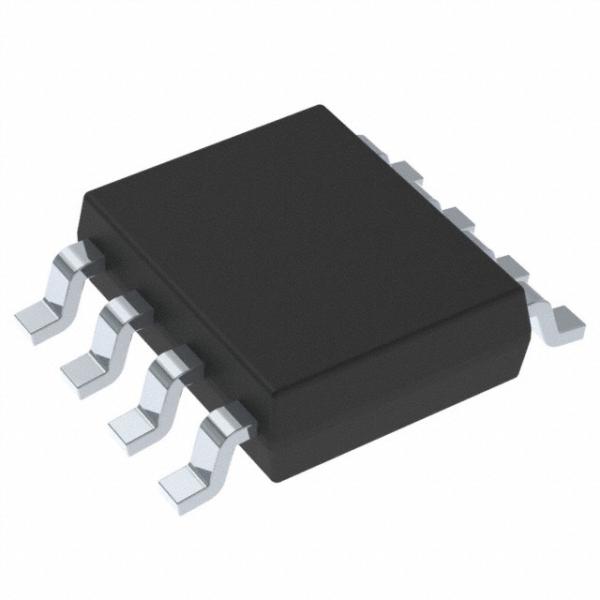

THS4631DDA IC OPAMP GP 1 CIRC 8SOPWRPAD Texas Instruments Images
