ISL28291FUZ-T7 IC OPAMP VFB 2 CIRCUIT 10MSOP Renesas Electronics America Inc

Brand Name : Renesas Electronics America Inc

Model Number : ISL28291FUZ-T7

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : Voltage Feedback

Number of Circuits : 2

Output Type : Rail-to-Rail

Slew Rate : 17V/µs

Gain Bandwidth Product : -

-3db Bandwidth : 61 MHz

Current - Input Bias : 3 µA

Voltage - Input Offset : 270 µV

Current - Supply : 2.6mA (x2 Channels)

Current - Output / Channel : 130 mA

Voltage - Supply Span (Min) : 3 V

Voltage - Supply Span (Max) : 5.5 V

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)

Supplier Device Package : 10-MSOP

Contact Now

Product Details

The ISL28117 and ISL28217 are a family of very high precision amplifiers featuring low noise vs power consumption, low offset voltage, low IBIAS current and low temperature drift making them the ideal choice for applications requiring both high DC accuracy and AC performance. The combination of precision, low noise, and small footprint provides the user with outstanding value and flexibility relative to similar competitive parts. Applications for these amplifiers include precision active filters, medical and analytical instrumentation, precision power supply controls, and industrial controls. The ISL28117 single and ISL28217 dual are offered in an 8 Ld SOIC package. Both devices are offered in standard pin configurations and operate over the extended temperature range to -40°C to +125°C.

Features

• Low Input Offset . . . . . . . . . . . . . . ±50µV, Max.
• Superb Offset TC . . . . . . . . . . . . 0.6µV/°C, Max.
• Input Bias Current . . . . . . . . . . . . . . ±1nA, Max.
• Input Bias Current TC . . . . . . . . . .±5pA/°C, Max.
• Low Current Consumption . . . . . . . . . . . . .440µA
• Voltage Noise. . . . . . . . . . . . . . . . . . . . . 8nV/Hz
• Wide Supply Range. . . . . . . . . . . . . . 4.5V to 40V
• Operating Temperature Range . . -40°C to +125°C
• Small Package Offerings in Single and Dual
• Pb-Free (RoHS Compliant)

Applications

• Precision Instruments
• Medical Instrumentation
• Spectral Analysis Equipment
• Active Filter Blocks
• Thermocouples and RTD Reference Buffers
• Data Acquisition
• Power Supply Control

Specifications

Attribute Attribute Value
Manufacturer Renesas
Product Category Instrumentation Amplifier
Series ISL28291
Product Operational Amplifiers
Packaging Reel
Unit-Weight 0.005051 oz
Mounting-Style SMD/SMT
Number-of-Channels 2 Channel
Amplifier-Type Voltage Feedback Amplifier
Shutdown No Shutdown
Maximum Operating Temperature + 125 C
Operating temperature range - 40 C
Operating-Supply-Current 7 mA
Supply-Voltage-Max 5.5 V
Supply-Voltage-Min 3 V
Package-Case MSOP-10
Ib-Input-Bias-Current 6 uA
Vos-Input-Offset-Voltage 630 uV
PSRR-Power-Supply-Rejection-Ratio 74 dB
SR-Slew-Rate 17 V/us
en-Input-Voltage-Noise-Density 1.7 nV/sqrt Hz
In-Input-Noise-Current-Density 1.8 pA/sqrt Hz

Descriptions

Voltage Feedback Amplifier 2 Circuit Rail-to-Rail 10-MSOP
Op Amp Dual Volt Fdbk R-R O/P 5.5V 10-Pin MSOP T/R
Operational Amplifiers - Op Amps ISL28291FUZ SINGLE & DL ULTRA-LW NOISE

China ISL28291FUZ-T7 IC OPAMP VFB 2 CIRCUIT 10MSOP Renesas Electronics America Inc factory

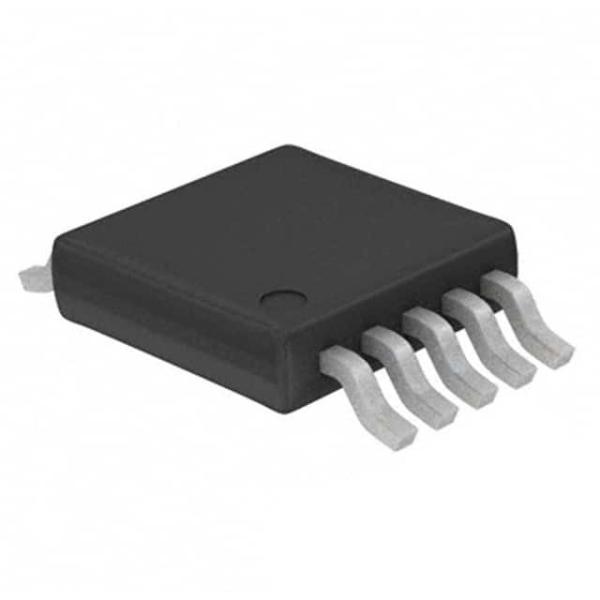

ISL28291FUZ-T7 IC OPAMP VFB 2 CIRCUIT 10MSOP Renesas Electronics America Inc Images
