THS4520RGTT IC OPAMP DIFF 1 CIRCUIT 16VQFN Texas Instruments

Name: THS4520RGTT IC OPAMP DIFF 1 CIRCUIT 16VQFN Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : THS4520RGTT

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : Differential

Number of Circuits : 1

Output Type : Differential, Rail-to-Rail

Slew Rate : 570V/µs

Gain Bandwidth Product : 1.2 GHz

-3db Bandwidth : 620 MHz

Current - Input Bias : 6.5 µA

Voltage - Input Offset : 250 µV

Current - Supply : 14.2mA

Current - Output / Channel : 105 mA

Voltage - Supply Span (Min) : 3 V

Voltage - Supply Span (Max) : 5.25 V

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : 16-VFQFN Exposed Pad

Supplier Device Package : 16-VQFN (3x3)

Contact Now

Product Details

The Texas Instruments THS4520RGTT is a high performance, low noise amplifier with a wide-band gain block featuring a low 2.0nV/√Hz noise figure, making it ideal for signal processing applications. It has a wide-band gain of 20dB, low input impedance of 5Ω, and high linearity performance across the frequency range from dc to 10GHz. The micro SMD package design helps to lower design space and board cost. It has high output drive capability capable of sourcing up to 500mA and a wide-band output power of 20dBm. The integrated ESD protection helps to reduce design complexity and minimize system-level cost. The THS4520RGTT is also designed with a power efficient low quiescent current of 17mAc.

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Instrumentation Amplifier
Series	THS4520
Product	Differential Amplifiers
Packaging	Reel
Unit-Weight	0.000850 oz
Mounting-Style	SMD/SMT
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Operating-Supply-Current	200 mA
Software Development Kit	THS4520EVM
Supply-Voltage-Max	5.25 V
Supply-Voltage-Min	3 V
Package-Case	VQFN-16
Ib-Input-Bias-Current	11 uA
Vos-Input-Offset-Voltage	2.5 mV
PSRR-Power-Supply-Rejection-Ratio	94 dB
CMRR-Common-Mode-Rejection-Ratio	80 dB
GBP-Gain-Bandwidth-Product	1.2 GHz
SR-Slew-Rate	570 V/us
Gain-V-V	1 V/V

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
THS4520RGTTG4 Amplifier Circuits	Rail-to-Rail Output Wideband Fully Differential Amplifier 16-VQFN -40 to 85	Texas Instruments	THS4520RGTT vs THS4520RGTTG4
THS4520RGTR Amplifier Circuits	Rail-to-Rail Output Wideband Fully Differential Amplifier 16-VQFN -40 to 85	Texas Instruments	THS4520RGTT vs THS4520RGTR
THS4520RGTRG4 Amplifier Circuits	Rail-to-Rail Output Wideband Fully Differential Amplifier 16-VQFN -40 to 85	Texas Instruments	THS4520RGTT vs THS4520RGTRG4

Descriptions

Differential Amplifier 1 Circuit Differential, Rail-to-Rail 16-QFN (3x3)

SP Amp DIFF AMP Single R-R O/P 卤2.625V/5.25V 16-Pin VQFN EP T/R

Differential Amplifiers Rail-to-Rail Output Wideband Full Diff

China THS4520RGTT IC OPAMP DIFF 1 CIRCUIT 16VQFN Texas Instruments factory

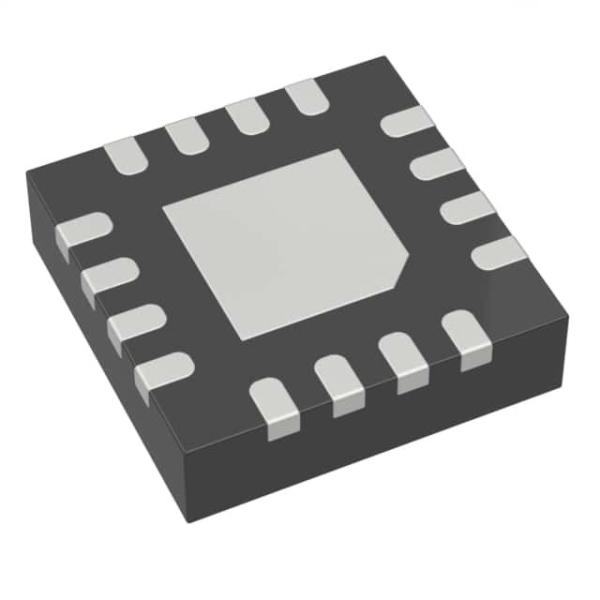

THS4520RGTT IC OPAMP DIFF 1 CIRCUIT 16VQFN Texas Instruments Images
