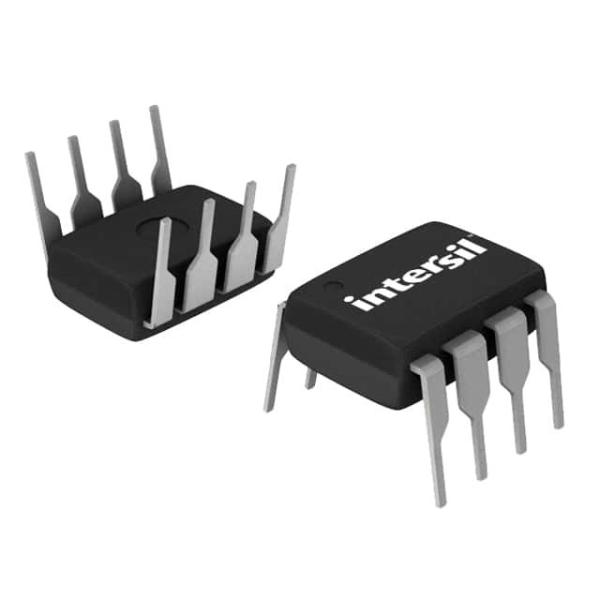

CA3140EZ General Purpose Amplifier IC GP 1 CIRCUIT 8DIP Renesas Electronics America Inc

Name: CA3140EZ General Purpose Amplifier IC GP 1 CIRCUIT 8DIP Renesas Electronics America Inc
Brand: Renesas Electronics America Inc
Price: 1 USD

Brand Name : Renesas Electronics America Inc

Model Number : CA3140EZ

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : General Purpose

Number of Circuits : 1

Output Type : -

Slew Rate : 9V/µs

Gain Bandwidth Product : 4.5 MHz

-3db Bandwidth : -

Current - Input Bias : 10 pA

Voltage - Input Offset : 5 mV

Current - Supply : 4mA

Current - Output / Channel : 40 mA

Voltage - Supply Span (Min) : 4 V

Voltage - Supply Span (Max) : 36 V

Operating Temperature : -55°C ~ 125°C

Mounting Type : Through Hole

Package / Case : 8-DIP (0.300", 7.62mm)

Supplier Device Package : 8-PDIP

Contact Now

Product Details

The CA3140A and CA3140 are integrated circuit operational amplifiers that combine the advantages of high voltage PMOS transistors with high voltage bipolar transistors on a single monolithic chip.

Specifications

Attribute	Attribute Value
Manufacturer	Renesas
Product Category	Instrumentation Amplifier
Series	CA3140
Product	Operational Amplifiers
Packaging	Tube
Unit-Weight	0.032805 oz
Mounting-Style	Through Hole
Technology	BiCMOS
Number-of-Channels	1 Channel
Amplifier-Type	General Purpose Amplifier
Shutdown	No Shutdown
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 55 C
Operating-Supply-Current	4 mA
Supply-Voltage-Max	36 V
Supply-Voltage-Min	4 V
Package-Case	PDIP-8
Ib-Input-Bias-Current	50 pA
Vos-Input-Offset-Voltage	15 mV
PSRR-Power-Supply-Rejection-Ratio	80 dB (Typ)
Output-Current-per-Channel	40 mA
CMRR-Common-Mode-Rejection-Ratio	70 dB
GBP-Gain-Bandwidth-Product	4.5 MHz
SR-Slew-Rate	9 V/us
en-Input-Voltage-Noise-Density	40 nV/sqrt Hz at +/- 15 V
Maximum-Dual-Supply-Voltage	+/- 18 V
Minimum-Dual-Supply-Voltage	+/- 2 V

Descriptions

General Purpose Amplifier 1 Circuit 8-PDIP

Op Amp Single GP 卤18V/36V Automotive 8-Pin PDIP Tube

Operational Amplifiers - Op Amps W/ANNEAL OPAMP 4.5MH ZLWBIAS0.04NA8PDIPML
