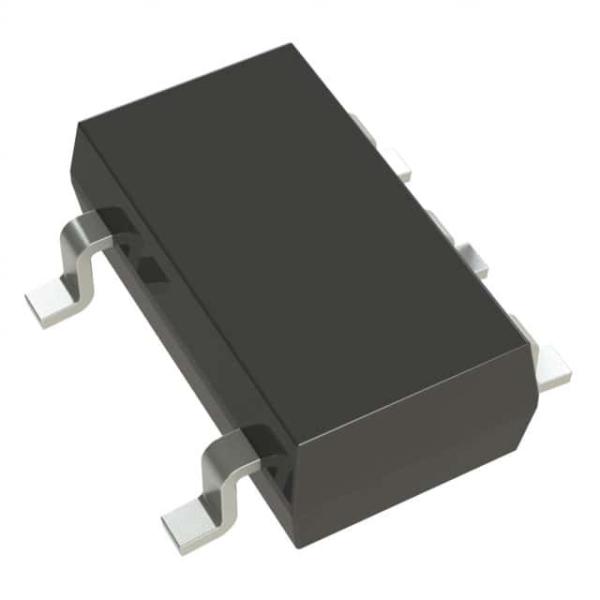

LMC7101BYM5-TR IC OPAMP GP 1 CIRCUIT SOT23-5 Microchip Technology

Name: LMC7101BYM5TR IC OPAMP GP 1 CIRCUIT SOT235 Microchip Technology
Brand: Microchip Technology
Price: 1 USD

Brand Name : Microchip Technology

Model Number : LMC7101BYM5-TR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : General Purpose

Number of Circuits : 1

Output Type : Rail-to-Rail

Slew Rate : 0.3V/µs

Gain Bandwidth Product : 500 kHz

-3db Bandwidth : -

Current - Input Bias : 1 pA

Voltage - Input Offset : 110 µV

Current - Supply : 800µA

Current - Output / Channel : 300 mA

Voltage - Supply Span (Min) : 2.7 V

Voltage - Supply Span (Max) : 12 V

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : SC-74A, SOT-753

Supplier Device Package : SOT-23-5

Contact Now

Product Details

Description

The LMC7101 is a high-performance, low-power, operational amplifier that is pin-for-pin compatible with the National Semiconductor LMC7101. It features rail-to-rail input and output performance in the IttyBitty SOT-23-5 package.

The LMC7101 is a 500 kHz gain–bandwidth amplifier designed to operate from 2.7V to 12V single-ended power supplies with guaranteed performance at supply voltages of 2.7V, 3V, 5V, and 12V.

This op amp’s input common-mode range includes ground and extends 300 mV beyond the supply rails. For example, the common mode range is –0.3V to +5.3V with a 5V supply

Features

• Small footprint SOT-23-5 package
• Guaranteed 2.7V, 3V, 5V, and 12V performance
• 500kHz gain-bandwidth
• 0.01% total harmonic distortion at 10kHz (5V, 2kΩ)
• 0.5mA typical supply current at 5V

Applications

• Mobile communications, cellular phones, pagers
• Battery-powered instrumentation
• PCMCIA, USB
• Portable computers and PDAs

Specifications

Attribute	Attribute Value
Manufacturer	Microchip Technology
Product Category	Instrumentation Amplifier
Manufacturer	Microchip
Product-Category	Operational Amplifiers - Op Amps
RoHS	Details
Mounting-Style	SMD/SMT
Package-Case	SOT-23-5
Number-of-Channels	1 Channel
GBP-Gain-Bandwidth-Product	500 kHz
SR-Slew-Rate	0.4 V/us
CMRR-Common-Mode-Rejection-Ratio	50 dB
Ib-Input-Bias-Current	64 pA
Vos-Input-Offset-Voltage	9 mV
Operating-Supply-Current	1.71 mA
Maximum-Operating-Temperature	+ 85 C
Minimum-Operating-Temperature	- 40 C
Shutdown	No Shutdown
Packaging	Reel
Amplifier-Type	Operational Amplifier
Brand	Microchip Technology / Micrel
en-Input-Voltage-Noise-Density	37 nV/sqrt Hz
Input-Type	Rail to Rail
Output-Type	Rail to Rail
Product	Operational Amplifiers
Part-#-Aliases	LMC7101BYM5 TR
Unit-Weight	0.001058 oz

Descriptions

General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-5

OP Amp Single GP R-R I/O 12V 5-Pin SOT-23 T/R

Operational Amplifiers - Op Amps
