CY7C09569V-83AXC IC SRAM 576KBIT PARALLEL 144TQFP Cypress Semiconductor Corp

Name: CY7C09569V83AXC IC SRAM 576KBIT PARALLEL 144TQFP Cypress Semiconductor Corp
Brand: Cypress Semiconductor Corp
Price: 1 USD

Brand Name : Cypress Semiconductor Corp

Model Number : CY7C09569V-83AXC

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Memory Type : Volatile

Memory Format : SRAM

Technology : SRAM - Dual Port, Synchronous

Memory Size : 576Kbit

Memory Organization : 16K x 36

Memory Interface : Parallel

Clock Frequency : 83 MHz

Write Cycle Time - Word, Page : -

Access Time : 6 ns

Voltage - Supply : 3V ~ 3.6V

Operating Temperature : 0°C ~ 70°C (TA)

Mounting Type : Surface Mount

Package / Case : 144-LQFP

Supplier Device Package : 144-TQFP (20x20)

Contact Now

Product Details

Functional Description

The CY7C008/009 and CY7C018/019 are low-power CMOS 64K, 128K x 8/9 dual-port static RAMs. Various arbitration schemes are included on the devices to handle situations when multiple processors access the same piece of data. Two ports are provided permitting independent, asynchronous access for reads and writes to any location in memory. The devices can be utilized as standalone 8/9-bit dual-port static RAMs or multiple devices can be combined in order to function as a 16/18-bit or wider master/slave dual-port static RAM.

Features

• True Dual-Ported memory cells that allow simultaneous access of the same memory location
• 64K x 8 organization (CY7C008)
• 128K x 8 organization (CY7C009)
• 64K x 9 organization (CY7C018)
• 128K x 9 organization (CY7C019)
• 0.35-micron CMOS for optimum speed/power
• High-speed access: 12[1]/15/20 ns
• Low operating power
— Active: ICC = 180 mA (typical)
— Standby: ISB3 = 0.05 mA (typical)
• Fully asynchronous operation
• Automatic power-down
• Expandable data bus to 16/18 bits or more using Master/Slave chip select when using more than one device
• On-chip arbitration logic
• Semaphores included to permit software handshaking between ports
• INT flags for port-to-port communication
• Dual Chip Enables
• Pin select for Master or Slave
• Commercial and Industrial temperature ranges
• Available in 100-pin TQFP; Pb-Free packages available

Specifications

Attribute	Attribute Value
Manufacturer	Cypress Semiconductor
Product Category	Memory ICs
Series	-
Packaging	Tray
Package-Case	144-LQFP
Operating-Temperature	0°C ~ 70°C (TA)
Interface	Parallel
Voltage-Supply	3 V ~ 3.6 V
Supplier-Device-Package	144-TQFP (20x20)
Memory Capacity	576K (16K x 36)
Memory-Type	SRAM - Dual Port, Synchronous
Speed	83MHz
Format-Memory	RAM

Descriptions

SRAM - Dual Port, Synchronous Memory IC 576Kb (16K x 36) Parallel 83MHz 6ns 144-TQFP (20x20)

China CY7C09569V-83AXC IC SRAM 576KBIT PARALLEL 144TQFP Cypress Semiconductor Corp factory

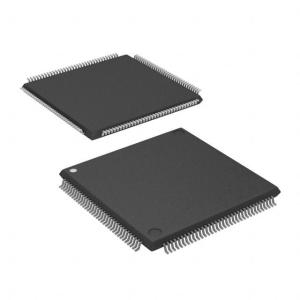

CY7C09569V-83AXC IC SRAM 576KBIT PARALLEL 144TQFP Cypress Semiconductor Corp Images
