71V546S100PFG IC SRAM 4.5MBIT PAR 100TQFP Renesas Electronics America Inc

Name: 71V546S100PFG IC SRAM 45MBIT PAR 100TQFP Renesas Electronics America Inc
Brand: Renesas Electronics America Inc
Price: 1 USD

Brand Name : Renesas Electronics America Inc

Model Number : 71V546S100PFG

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Memory Type : Volatile

Memory Format : SRAM

Technology : SRAM - Synchronous, SDR (ZBT)

Memory Size : 4.5Mbit

Memory Organization : 128K x 36

Memory Interface : Parallel

Clock Frequency : 100 MHz

Write Cycle Time - Word, Page : -

Access Time : 5 ns

Voltage - Supply : 3.135V ~ 3.465V

Operating Temperature : 0°C ~ 70°C (TA)

Mounting Type : Surface Mount

Package / Case : 100-LQFP

Supplier Device Package : 100-TQFP (14x20)

Contact Now

Product Details

DESCRIPTION:

The IDT71V509 is a 3.3V high-speed 1,024,576-bit synchronous SRAM organized as 128K x 8. It is designed to eliminate dead cycles when turning the bus around between reads and writes, or writes and reads. Thus, it has been given the name ZBT, or Zero Bus Turnaround™.

FEATURES:

• 128K x 8 memory configuration
• High speed - 66 MHz (9 ns Clock-to-Data Access)
• Flow-Through Output
• No dead cycles between Write and Read Cycles
• Low power deselect mode
• Single 3.3V power supply (±5%)
• Packaged in 44-lead SOJ

Specifications

Attribute	Attribute Value
Manufacturer	Integrated Circuit Systems
Product Category	Memory ICs
Series	71V546
Type	Synchronous
Packaging	Tray Alternate Packaging
Unit-Weight	0.023175 oz
Mounting-Style	SMD/SMT
Package-Case	100-LQFP
Operating-Temperature	0°C ~ 70°C (TA)
Interface	Parallel
Voltage-Supply	3.135 V ~ 3.465 V
Supplier-Device-Package	100-TQFP (14x20)
Memory Capacity	4.5M (128K x 36)
Memory-Type	SRAM - Synchronous ZBT
Speed	100MHz
Access-Time	5 ns
Format-Memory	RAM
Maximum Operating Temperature	+ 70 C
Operating temperature range	0 C
Interface-Type	Parallel
Organization	128 k x 36
Supply-Current-Max	250 mA
Part-#-Aliases	71V546 IDT71V546S100PFG
Supply-Voltage-Max	3.465 V
Supply-Voltage-Min	3.135 V
Package-Case	TQFP-100
Maximum-Clock-Frequency	100 MHz

Functional compatible componentForm,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
71V2556XS100PFG8 Memory	ZBT SRAM, 128KX36, 5ns, CMOS, PQFP100, 14 X 20 MM, GREEN, PLASTIC, TQFP-100	Integrated Device Technology Inc	71V546S100PFG vs 71V2556XS100PFG8
IDT71V3556S100PFG8 Memory	ZBT SRAM, 128KX36, 5ns, CMOS, PQFP100, 14 X 20 MM, 1.40 MM HEIGHT, ROHS COMPLIANT, PLASTIC, TQFP-100	Integrated Device Technology Inc	71V546S100PFG vs IDT71V3556S100PFG8
IDT71V3556S100PFG Memory	ZBT SRAM, 128KX36, 5ns, CMOS, PQFP100, 14 X 20 MM, 1.40 MM HEIGHT, PLASTIC, TQFP-100	Integrated Device Technology Inc	71V546S100PFG vs IDT71V3556S100PFG
71V546S100PFG8 Memory	TQFP-100, Reel	Integrated Device Technology Inc	71V546S100PFG vs 71V546S100PFG8
71V3556S100PFG8 Memory	TQFP-100, Reel	Integrated Device Technology Inc	71V546S100PFG vs 71V3556S100PFG8
IDT71V546S100PFG8 Memory	ZBT SRAM, 128KX36, 5ns, CMOS, PQFP100, 14 X 20 MM, PLASTIC, TQFP-100	Integrated Device Technology Inc	71V546S100PFG vs IDT71V546S100PFG8
IDT71V3556XS100PFG Memory	ZBT SRAM, 128KX36, 5ns, CMOS, PQFP100, 14 X 20 MM, 1.40 MM HEIGHT, ROHS COMPLIANT, PLASTIC, MO-136DJ, TQFP-100	Integrated Device Technology Inc	71V546S100PFG vs IDT71V3556XS100PFG
71V3556S100PFG Memory	TQFP-100, Tray	Integrated Device Technology Inc	71V546S100PFG vs 71V3556S100PFG
IDT71V546S100PFG Memory	ZBT SRAM, 128KX36, 5ns, CMOS, PQFP100, 14 X 20 MM, ROHS COMPLIANT, PLASTIC, TQFP-100	Integrated Device Technology Inc	71V546S100PFG vs IDT71V546S100PFG
71V2556XS100PFG Memory	ZBT SRAM, 128KX36, 5ns, CMOS, PQFP100, 14 X 20 MM, GREEN, PLASTIC, TQFP-100	Integrated Device Technology Inc	71V546S100PFG vs 71V2556XS100PFG

Descriptions

SRAM - Synchronous ZBT Memory IC 4.5Mb (128K x 36) Parallel 100MHz 5ns 100-TQFP (14x20)

SRAM 128Kx36 ZBT SYNC 3.3V PIPELINED SRAM

China 71V546S100PFG IC SRAM 4.5MBIT PAR 100TQFP Renesas Electronics America Inc factory

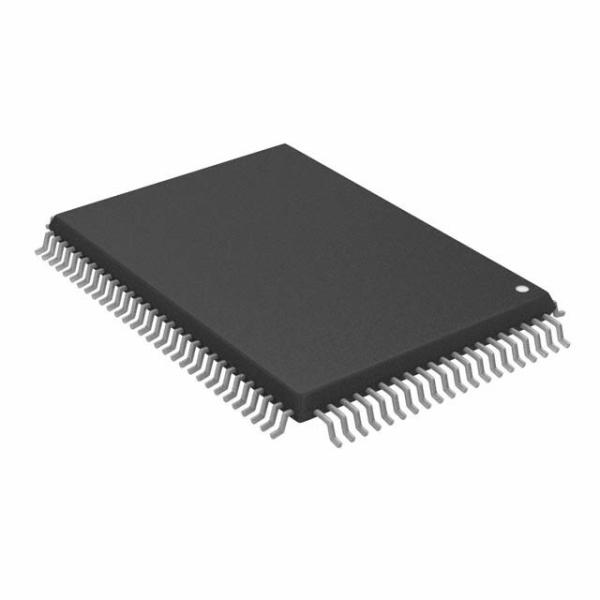

71V546S100PFG IC SRAM 4.5MBIT PAR 100TQFP Renesas Electronics America Inc Images
