TPS54327DDAR IC REG BUCK ADJUSTABLE 3A 8SOPWR Texas Instruments

Name: TPS54327DDAR IC REG BUCK ADJUSTABLE 3A 8SOPWR Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : TPS54327DDAR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Function : Step-Down

Output Configuration : Positive

Topology : Buck

Output Type : Adjustable

Number of Outputs : 1

Voltage - Input (Min) : 4.5V

Voltage - Input (Max) : 18V

Voltage - Output (Min/Fixed) : 0.76V

Voltage - Output (Max) : 7V

Current - Output : 3A

Frequency - Switching : 700kHz

Synchronous Rectifier : Yes

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 8-PowerSOIC (0.154", 3.90mm Width)

Supplier Device Package : 8-SO PowerPad

Contact Now

Product Details

Description

The TPS54327 device is an adaptive on-time D-CAP2TM mode synchronous buck converter. TheTPS54327 enables system designers to complete the suite of various end equipment's power bus regulators with a cost effective, low component count, low standby current solution. The main control loop for the TPS54327 uses the D-CAP2 mode control which provides a fast transient response with no external compensation components. The TPS54327 also has a proprietary circuit that enables the device to adopt to both low equivalent series resistance (ESR) output capacitors, such as POSCAP or SP-CAP,and ultra-low ESR ceramic capacitors. The device operates from 4.5-V to 18-V ViN input. The output voltage can be programmed between 0.76 V and 7 V. The device also features an adjustable soft start time. The TPS54327 is available in the 8-pin DDA package and 10-pin DRC, and is designed to operate from - 40°C to 85°C.

Features

●D-CAP2TM Mode Enables Fast Transient Response
●Low-Output Ripple and Allows Ceramic Output Capacitor
●Wide VIN Input Voltage Range: 4.5V to 18 V
●Output Voltage Range: 0.76 V to 7 V
●Highly Eficient Integrated FETs Optimized for Lower Duty Cycle Applications
一100 mQ (High-Side) and 70 mQ (Low- Side)
●High Efficiency, Less Than 10 μA at shutdown
●High Initial Bandgap Reference Accuracy
●Adjustable Soft Start
●Prebiased Soft Start
●700-kHz Switching Frequency (fsw)
●Cycle- By-Cycle Overcurrent Limit

Application

●Wide Range of Applications for Low Voltage System
- Digital TV Power Supply
- High Definition Blu-ray Disc TM Players
- Networking Home Terminal
- Digital Set Top Box (STB)

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	IC Chips
Series	D-CAP2™
Packaging	Alternate Packaging
Package-Case	8-SOIC (0.154", 3.90mm Width) Exposed Pad
Operating-Temperature	-40°C ~ 85°C (TA)
Mounting-Type	Surface Mount
Output-Type	Adjustable
Function	Step-Down
Supplier-Device-Package	8-SO PowerPad
Number-of-Outputs	1 Output
Topology	Buck
Frequency-Switching	700kHz
Current-Output	3A
Output-Configuration	Positive
Output Voltage	0.76V
Voltage-Output-Max	7V
Synchronous-Rectifier	Yes
Voltage-Input-Min	4.5V
Voltage-Input-Max	18V

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
TPS54327DDA Power Circuits	4.5V to 18V Input, 3-A Synchronous Step-Down Converter 8-SO PowerPAD -40 to 85	Texas Instruments	TPS54327DDAR vs TPS54327DDA

Descriptions

Buck Switching Regulator IC Positive Adjustable 0.76V 1 Output 3A 8-PowerSOIC (0.154", 3.90mm Width)

Conv DC-DC 4.5V to 18V Synchronous Step Down Single-Out 0.76V to 7V 3A 8-Pin HSOP EP T/R

Voltage Regulators - Switching Regulators 4.5-18Vin,3A Sync Step-Down Cnvrtr

China TPS54327DDAR IC REG BUCK ADJUSTABLE 3A 8SOPWR Texas Instruments factory

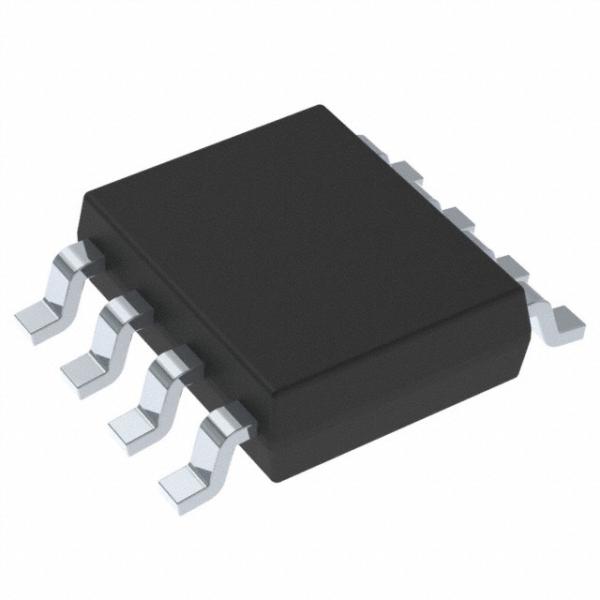

TPS54327DDAR IC REG BUCK ADJUSTABLE 3A 8SOPWR Texas Instruments Images
