TPS60403DBVR IC REG CHARG PUMP INV 60MA SOT23 Texas Instruments

Name: TPS60403DBVR IC REG CHARG PUMP INV 60MA SOT23 Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : TPS60403DBVR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Function : Ratiometric

Output Configuration : Positive or Negative

Topology : Charge Pump

Output Type : Fixed

Number of Outputs : 1

Voltage - Input (Min) : 1.8V

Voltage - Input (Max) : 5.25V

Voltage - Output (Min/Fixed) : -Vin, 2Vin, Vin/2

Voltage - Output (Max) : -

Current - Output : 60mA

Frequency - Switching : 250kHz

Synchronous Rectifier : No

Operating Temperature : -40°C ~ 125°C (TJ)

Mounting Type : Surface Mount

Package / Case : SC-74A, SOT-753

Supplier Device Package : SOT-23-5

Contact Now

Product Details

DESCRIPTION

Dual center tap Schottky rectifier suited for switchmode power supply and high frequency DC to DC converters.
Packaged either in SOT-93, TOP-3I or TO-247, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protectionapplications.

FEATURES AND BENEFITS

■ VERY SMALL CONDUCTION LOSSES
■ NEGLIGIBLESWITCHING LOSSES
■ EXTREME FAST SWITCHING
■ LOW THERMAL RESISTANCE
■ INSULATED PACKAGE: TOP-3I
Insulating voltage = 2500VRMS
Capacitance= 12pF

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	IC Chips
Manufacturer	Texas Instruments
Product-Category	Voltage Regulators - Switching Regulators
RoHS	Details
Brand	Texas Instruments
Mounting-Style	SMD/SMT
Package-Case	SOT-23-5
Output-Voltage	- 1.6 V to - 5.25 V
Output-Current	60 mA
Number-of-Outputs	1 Output
Input-Voltage-MAX	5.5 V
Topology	Buck Boost Inverting
Input-Voltage-MIN	1.6 V
Switching-Frequency	250 kHz
Maximum-Operating-Temperature	+ 85 C
Series	TPS60403
Input-Voltage	1.6 V to 5.5 V
Minimum-Operating-Temperature	- 40 C
Operating-Supply-Current	400 uA
Operating-Temperature-Range	- 40 C to + 85 C
Packaging	Reel
Type	Charge Pump (Inductorless)
Unit-Weight	0.000459 oz

Descriptions

Charge Pump INV -1.6V to -5.25V 60mA 5-Pin SOT-23 T/R

Voltage Regulators - Switching Regulators 60mA Charge Pump Voltage Inverter

China TPS60403DBVR IC REG CHARG PUMP INV 60MA SOT23 Texas Instruments factory

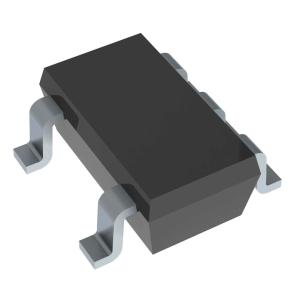

TPS60403DBVR IC REG CHARG PUMP INV 60MA SOT23 Texas Instruments Images
