TPS54310PWPR IC REG BUCK ADJ 3A 20HTSSOP Texas Instruments

Name: TPS54310PWPR IC REG BUCK ADJ 3A 20HTSSOP Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : TPS54310PWPR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Function : Step-Down

Output Configuration : Positive

Topology : Buck

Output Type : Adjustable

Number of Outputs : 1

Voltage - Input (Min) : 3V

Voltage - Input (Max) : 6V

Voltage - Output (Min/Fixed) : 0.891V

Voltage - Output (Max) : 3.3V

Current - Output : 3A

Frequency - Switching : 350kHz, 550kHz

Synchronous Rectifier : Yes

Operating Temperature : -40°C ~ 125°C (TJ)

Mounting Type : Surface Mount

Package / Case : 20-PowerTSSOP (0.173", 4.40mm Width)

Supplier Device Package : 20-HTSSOP

Contact Now

Product Details

The TPS 534 thermopile sensor in TO 5 type housing employs a chip of 1.2 x 1.2 mm² absorber size and a 30 kV thermistor as temperature reference. The round window opening is equipped with a 5.5 µm longpass (standard) infrared filter. The sensor shows a flat sensitivity characteristics over the wavelength.

► Large absorber size - high signal output

► Low temperature coefficient of sensitivity
► Thermistor temperature reference included
► Applications in pyrometers, and - with additional infrared bandpass filters - in gas detectors

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	DC Switching Regulators
Series	SWIFT™
Type	DC/DC Converter
Packaging	Tube Alternate Packaging
Unit-Weight	0.002885 oz
Mounting-Style	SMD/SMT
Operating-Temperature-Range	- 40 C to + 125 C
Package-Case	20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Operating-Temperature	-40°C ~ 125°C (TJ)
Mounting-Type	Surface Mount
Output-Type	Adjustable
Function	Step-Down
Supplier-Device-Package	20-HTSSOP
Number-of-Outputs	1 Output
Topology	Buck
Frequency-Switching	350kHz, 550kHz
Current-Output	3A
Output-Configuration	Positive
Output Voltage	0.891V
Voltage-Output-Max	3.3V
Synchronous-Rectifier	Yes
Voltage-Input-Min	3V
Voltage-Input-Max	6V
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Output-Voltage	Adj
Input-Voltage	3 V to 6 V
Input-Voltage-MAX	6 V
Output-Current	3 A
Switching-Frequency	700 kHz
Input-Voltage-MIN	3 V
Load-Regulation	0.03 % / A
Software Development Kit	TPS54310EVM
Package-Case	HTSSOP-20

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
TPS54310PWPG4 Power Circuits	3V to 6V Input, 3A Synchronous Step-Down Converter 20-HTSSOP -40 to 125	Texas Instruments	TPS54310PWPR vs TPS54310PWPG4
TPS54310QPWPRQ1 Power Circuits	Automotive 3V to 6V, 3A Synchronous Buck Converter 20-HTSSOP -40 to 125	Texas Instruments	TPS54310PWPR vs TPS54310QPWPRQ1
TPS54310PWPRG4 Power Circuits	3V to 6V Input, 3A Synchronous Step-Down Converter 20-HTSSOP -40 to 125	Texas Instruments	TPS54310PWPR vs TPS54310PWPRG4
TPS54310PWP Power Circuits	3V to 6V Input, 3A Synchronous Step-Down Converter 20-HTSSOP -40 to 125	Texas Instruments	TPS54310PWPR vs TPS54310PWP

Descriptions

Buck Switching Regulator IC Positive Adjustable 0.891V 1 Output 3A 20-PowerTSSOP (0.173", 4.40mm Width)

Conv DC-DC 3V to 6V Step Down Single-Out 0.9V to 3.3V 3A 20-Pin HTSSOP EP T/R

Voltage Regulators - Switching Regulators 3A Sync Buck Converter

China TPS54310PWPR IC REG BUCK ADJ 3A 20HTSSOP Texas Instruments factory

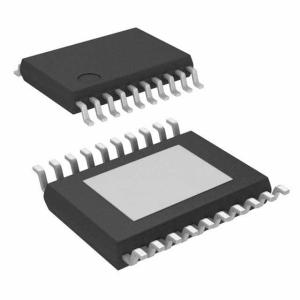

TPS54310PWPR IC REG BUCK ADJ 3A 20HTSSOP Texas Instruments Images
