TPS62050DGSR IC REG BUCK ADJ 800MA 10VSSOP Texas Instruments

Name: TPS62050DGSR IC REG BUCK ADJ 800MA 10VSSOP Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : TPS62050DGSR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Function : Step-Down

Output Configuration : Positive

Topology : Buck

Output Type : Adjustable

Number of Outputs : 1

Voltage - Input (Min) : 2.7V

Voltage - Input (Max) : 10V

Voltage - Output (Min/Fixed) : 0.7V

Voltage - Output (Max) : 6V

Current - Output : 800mA

Frequency - Switching : 850kHz

Synchronous Rectifier : Yes

Operating Temperature : -40°C ~ 125°C (TJ)

Mounting Type : Surface Mount

Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)

Supplier Device Package : 10-VSSOP

Contact Now

Product Details

Description:

The TI TPS62050DGSR is a DC-DC switching regulator designed to provide a regulated output voltage from an input voltage of up to 10V. It is a step-down regulator with an adjustable output voltage range of 0.7V to 10V. The device is capable of delivering up to 800mA of output current and has a switching frequency of 850kHz. It is available in a 10-VSSOP surface mount package.

Features:

• Input voltage range: up to 10V
• Output voltage range: 0.7V to 10V
• Output current: up to 800mA
• Switching frequency: 850kHz
• 10-VSSOP surface mount package

Applications:

The TI TPS62050DGSR is suitable for a wide range of applications, including:
• Battery-powered devices
• Portable electronics
• Automotive electronics
• Industrial electronics
• Power management systems

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	DC Switching Regulators
Series	TPS62050
Type	Voltage Converter
Packaging	Alternate Packaging
Unit-Weight	0.000836 oz
Mounting-Style	SMD/SMT
Operating-Temperature-Range	- 40 C to + 85 C
Package-Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Operating-Temperature	-40°C ~ 125°C (TJ)
Mounting-Type	Surface Mount
Output-Type	Adjustable
Function	Step-Down
Supplier-Device-Package	10-VSSOP
Number-of-Outputs	1 Output
Topology	Buck
Frequency-Switching	850kHz
Current-Output	800mA
Output-Configuration	Positive
Output Voltage	0.7V
Voltage-Output-Max	6V
Synchronous-Rectifier	Yes
Voltage-Input-Min	2.7V
Voltage-Input-Max	10V
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Output-Voltage	0.7 V to 6 V
Input-Voltage	2.7 V to 10 V
Input-Voltage-MAX	10 V
Output-Current	800 mA
Switching-Frequency	850 kHz
Input-Voltage-MIN	2.7 V
Software Development Kit	TPS62050EVM-234
Part-#-Aliases	HPA00314DGSR
Package-Case	VSSOP-10

Descriptions

Buck Switching Regulator IC Positive Adjustable 0.7V 1 Output 800mA 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)

Conv DC-DC 2.7V to 10V Step Down Single-Out 0.7V to 6V 0.8A 10-Pin VSSOP T/R

Voltage Regulators - Switching Regulators Adj 800mA 10V Vin Step-Down Converter

China TPS62050DGSR IC REG BUCK ADJ 800MA 10VSSOP Texas Instruments factory

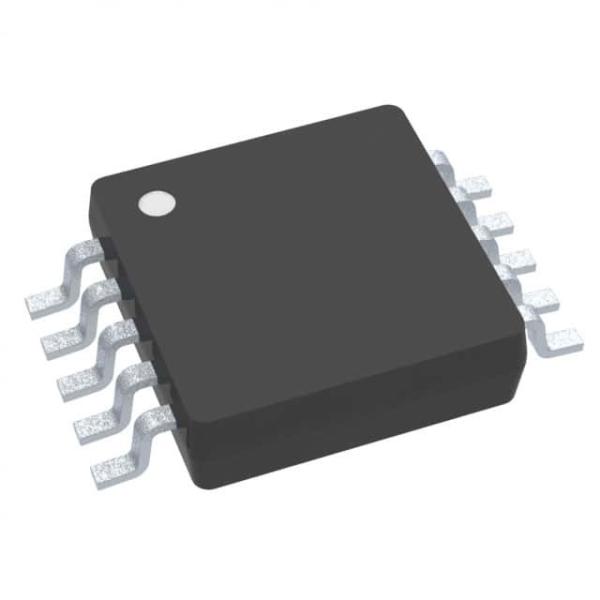

TPS62050DGSR IC REG BUCK ADJ 800MA 10VSSOP Texas Instruments Images
