Brand Name : Texas Instruments
Model Number : LM2677SX-5.0/NOPB
MOQ : 1
Price : Based on current price
Payment Terms : T/T
Supply Ability : In stock
Delivery Time : 3-5 work days
Packaging Details : anti-static bag & cardboard box
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Fixed
Number of Outputs : 1
Voltage - Input (Min) : 8V
Voltage - Input (Max) : 40V
Voltage - Output (Min/Fixed) : 5V
Voltage - Output (Max) : -
Current - Output : 5A
Frequency - Switching : 260kHz
Synchronous Rectifier : No
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package : DDPAK/TO-263-7
Attribute | Attribute Value |
---|---|
Manufacturer | Texas Instruments |
Product Category | DC Switching Regulators |
Series | SIMPLE SWITCHER® |
Type | Step Down |
Packaging | Tape & Reel (TR) Alternate Packaging |
Unit-Weight | 0.056438 oz |
Mounting-Style | SMD/SMT |
Package-Case | TO-263-8, D2Pak (7 Leads + Tab), TO-263CA |
Operating-Temperature | -40°C ~ 125°C (TJ) |
Mounting-Type | Surface Mount |
Output-Type | Fixed |
Function | Step-Down |
Supplier-Device-Package | DDPAK/TO-263-7 |
Number-of-Outputs | 1 Output |
Topology | Buck |
Frequency-Switching | 260kHz |
Current-Output | 5A |
Output-Configuration | Positive |
Output Voltage | 5V |
Voltage-Output-Max | - |
Synchronous-Rectifier | No |
Voltage-Input-Min | 8V |
Voltage-Input-Max | 40V |
Maximum Operating Temperature | + 125 C |
Operating temperature range | - 40 C |
Output-Voltage | 5 V |
Input-Voltage-MAX | 40 V |
Output-Current | 5 A |
Switching-Frequency | 260 kHz |
Input-Voltage-MIN | 8 V |
Package-Case | TO-263-7 |
![]() |

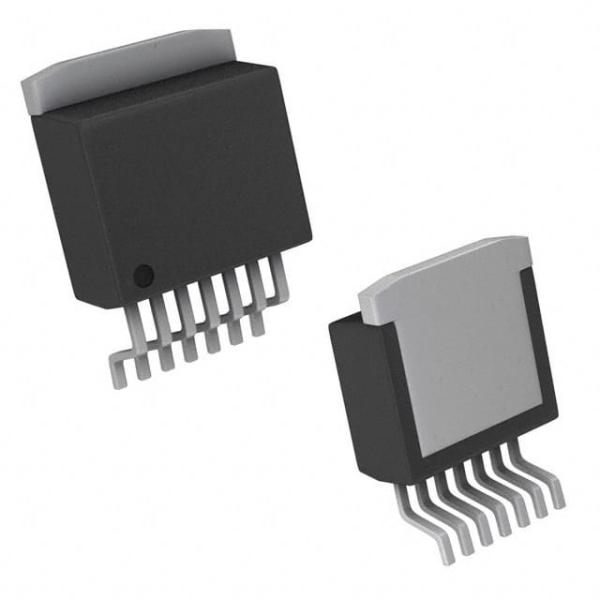

LM2677SX-5.0/NOPB IC REG BUCK 5V 5A TO263-3 Texas Instruments Images |
