TPS62237DRYR IC REG BUCK 3.3V 500MA 6SON Texas Instruments

Name: TPS62237DRYR IC REG BUCK 33V 500MA 6SON Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : TPS62237DRYR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Function : Step-Down

Output Configuration : Positive

Topology : Buck

Output Type : Fixed

Number of Outputs : 1

Voltage - Input (Min) : 2.05V

Voltage - Input (Max) : 6V

Voltage - Output (Min/Fixed) : 3.3V

Voltage - Output (Max) : -

Current - Output : 500mA

Frequency - Switching : 2MHz

Synchronous Rectifier : Yes

Operating Temperature : -40°C ~ 125°C (TJ)

Mounting Type : Surface Mount

Package / Case : 6-UFDFN

Supplier Device Package : 6-SON (1.45x1)

Contact Now

Product Details

The Texas Instruments TPS62237DRYR DC Switching Regulator is a 500mA, 2MHz step-down surface mount 3.3V fixed 6-SON (1.45x1) buck regulator. This regulator is designed to provide a high efficiency, low noise, and low output voltage ripple solution for a wide range of applications. It features a wide input voltage range of 2.5V to 5.5V, and a wide output voltage range of 0.6V to 3.3V. The TPS62237DRYR also features a low quiescent current of only 1.2mA, and a high switching frequency of 2MHz, allowing for a small solution size. This regulator is ideal for applications such as portable electronics, battery-powered devices, and automotive systems.

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	DC Switching Regulators
Series	-
Packaging	Alternate Packaging
Package-Case	6-UFDFN
Operating-Temperature	-40°C ~ 125°C (TJ)
Mounting-Type	Surface Mount
Output-Type	Fixed
Function	Step-Down
Supplier-Device-Package	6-SON (1.45x1)
Number-of-Outputs	1 Output
Topology	Buck
Frequency-Switching	2MHz
Current-Output	500mA
Output-Configuration	Positive
Output Voltage	3.3V
Voltage-Output-Max	-
Synchronous-Rectifier	Yes
Voltage-Input-Min	2.05V
Voltage-Input-Max	6V

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
TPS62237DRYT Power Circuits	2 MHz Ultra Small Step Down Converter with DCS-Control in 1x1.5 SON Package 6-SON -40 to 125	Texas Instruments	TPS62237DRYR vs TPS62237DRYT
TPS62237DRY Power Circuits	1.22A SWITCHING REGULATOR, 3800kHz SWITCHING FREQ-MAX, PDSO6, 1 X 1.50 MM, 0.60 MM HEIGHT, PLASTIC, MO-287UFAD, SON-6	Texas Instruments	TPS62237DRYR vs TPS62237DRY

Descriptions

Conv DC-DC 2.05V to 6V Step Down Single-Out 3.3V 0.5A 6-Pin USON T/R

Voltage Regulators - Switching Regulators 3MHz,500mA Step- Down Converter

China TPS62237DRYR IC REG BUCK 3.3V 500MA 6SON Texas Instruments factory

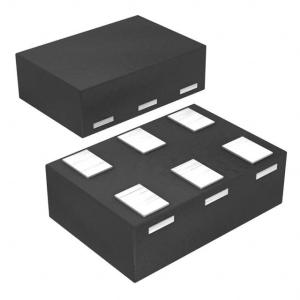

TPS62237DRYR IC REG BUCK 3.3V 500MA 6SON Texas Instruments Images
