FAN23SV56AMPX IC REG BUCK ADJUSTABLE 6A 34PQFN onsemi

Name: FAN23SV56AMPX IC REG BUCK ADJUSTABLE 6A 34PQFN onsemi
Brand: onsemi
Price: 1 USD

Brand Name : onsemi

Model Number : FAN23SV56AMPX

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Function : Step-Down

Output Configuration : Positive

Topology : Buck

Output Type : Adjustable

Number of Outputs : 1

Voltage - Input (Min) : 7V

Voltage - Input (Max) : 24V

Voltage - Output (Min/Fixed) : 0.6V

Voltage - Output (Max) : 5.5V

Current - Output : 6A

Frequency - Switching : 200kHz ~ 1.5MHz

Synchronous Rectifier : Yes

Operating Temperature : -40°C ~ 125°C (TJ)

Mounting Type : Surface Mount

Package / Case : 34-PowerTFQFN

Supplier Device Package : 34-PQFN (5.5x5)

Contact Now

Product Details

Description

The FAN2510/11 family of micropower low-dropout voltage regulators utilize CMOS technology to offer a new level of cost-effective performance in GSM, TDMA, and CDMA cellular handsets, Laptop and Notebook portable computers, and other portable devices.

Features
• Ultra Low Power Consumption
• Enable optimized for CDMA time slices
• 100 mV dropout voltage at 100 mA
• 25 µA ground current at 100 mA
• Enable/Shutdown Control
• SOT23-5 package
• Thermal limiting
• 300 mA peak current

Applications
• Cellular Phones and accessories
• PDAs
• Portable cameras and video recorders
• Laptop, notebook and palmtop computers

Specifications

Attribute	Attribute Value
Manufacturer	onsemi
Product Category	DC Switching Regulators
Series	-
Type	Synchronous Buck Regulator
Packaging	Alternate Packaging
Unit-Weight	0.040212 oz
Mounting-Style	SMD/SMT
Operating-Temperature-Range	- 40 C to + 125 C
Package-Case	34-PowerTFQFN
Operating-Temperature	-40°C ~ 125°C (TJ)
Mounting-Type	Surface Mount
Output-Type	Adjustable
Function	Step-Down
Supplier-Device-Package	34-PQFN (5.5x5)
Number-of-Outputs	1 Output
Topology	Buck
Frequency-Switching	200kHz ~ 1.5MHz
Current-Output	6A
Output-Configuration	Positive
Output Voltage	0.6V
Voltage-Output-Max	5.5V
Synchronous-Rectifier	Yes
Voltage-Input-Min	7V
Voltage-Input-Max	24V
Shutdown	Shutdown
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Output-Voltage	600 mV to 5.5 V
Input-Voltage	7 V to 24 V
Input-Voltage-MAX	24 V
Output-Current	6 A
Switching-Frequency	200 kHz to 1.5 MHz
Input-Voltage-MIN	7 V
Supply-Voltage-Min	7 V
Package-Case	PQFN-34

Descriptions

Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 6A 34-PowerTFQFN

Conv DC-DC 7V to 24V Step Down Single-Out 0.6V to 5.5V 6A 34-Pin PQFN EP T/R

Voltage Regulators - Switching Regulators 6A SYNC BUCK REGULATOR

China FAN23SV56AMPX IC REG BUCK ADJUSTABLE 6A 34PQFN onsemi factory

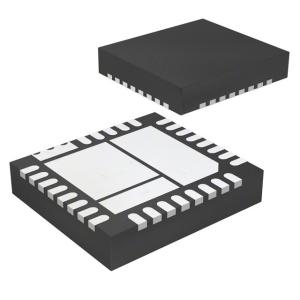

FAN23SV56AMPX IC REG BUCK ADJUSTABLE 6A 34PQFN onsemi Images
