S25FL064P0XMFA000 IC FLASH 64MBIT SPI/QUAD 16SOIC Infineon Technologies

Name: S25FL064P0XMFA000 IC FLASH 64MBIT SPIQUAD 16SOIC Infineon Technologies
Brand: Infineon Technologies
Price: 1 USD

Brand Name : Infineon Technologies

Model Number : S25FL064P0XMFA000

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Memory Type : Non-Volatile

Memory Format : FLASH

Technology : FLASH - NOR

Memory Size : 64Mbit

Memory Organization : 8M x 8

Memory Interface : SPI - Quad I/O

Clock Frequency : 104 MHz

Write Cycle Time - Word, Page : 5µs, 3ms

Access Time : -

Voltage - Supply : 2.7V ~ 3.6V

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 16-SOIC (0.295", 7.50mm Width)

Supplier Device Package : 16-SOIC

Contact Now

Product Details

General Description

The S25FL064P is a 3.0 Volt (2.7V to 3.6V), single-power-supply flash memory device. The device consists of 128 uniform 64 kB sectors with the two (Top or Bottom) 64 kB sectors further split up into thirty-two 4 kB sub sectors. The S25FL064P device is fully backward compatible with the S25FL064A device. The device accepts data written to SI (Serial Input) and outputs data on SO (Serial Output). The devices are designed to be programmed in-system with the standard system 3.0-volt VCC supply. The S25FL064P device adds the following high-performance features using 5 new instructions:
•Dual Output Read using both SI and SO pins as output pins at a clock rate of up to 80 MHz
•Quad Output Read using SI, SO, W#/ACC and HOLD# pins as output pins at a clock rate of up to 80 MHz
•Dual I/O High Performance Read using both SI and SO pins as input and output pins at a clock rate of up to 80 MHz
•Quad I/O High Performance Read using SI, SO, W#/ACC and HOLD# pins as input and output pins at a clock rate of up to 80 MHz
•Quad Page Programming using SI, SO, W#/ACC and HOLD# pins as input pins to program data at a clock rate of up to 80 MHz

Specifications

Attribute	Attribute Value
Manufacturer	Cypress Semiconductor
Product Category	Memory ICs
Series	FL-P
Packaging	Tray
Mounting-Style	SMD/SMT
Operating-Temperature-Range	- 40 C to + 85 C
Package-Case	16-SOIC (0.295", 7.50mm Width)
Operating-Temperature	-40°C ~ 85°C (TA)
Interface	SPI Serial
Voltage-Supply	2.7 V ~ 3.6 V
Supplier-Device-Package	16-SOIC
Memory Capacity	64M (8M x 8)
Memory-Type	FLASH - NOR
Speed	104MHz
Architecture	Sector
Format-Memory	FLASH
Standard	Common Flash Interface (CFI)
Interface-Type	SPI
Organization	8 M x 8
Supply-Current-Max	26 mA
Data-Bus-Width	8 bit
Supply-Voltage-Max	3.6 V
Supply-Voltage-Min	2.7 V
Package-Case	SO-16
Maximum-Clock-Frequency	104 MHz
Timing-Type	Synchronous

Descriptions

FLASH - NOR Memory IC 64Mb (8M x 8) SPI - Quad I/O 104MHz 16-SOIC

Flash Memory

China S25FL064P0XMFA000 IC FLASH 64MBIT SPI/QUAD 16SOIC Infineon Technologies factory

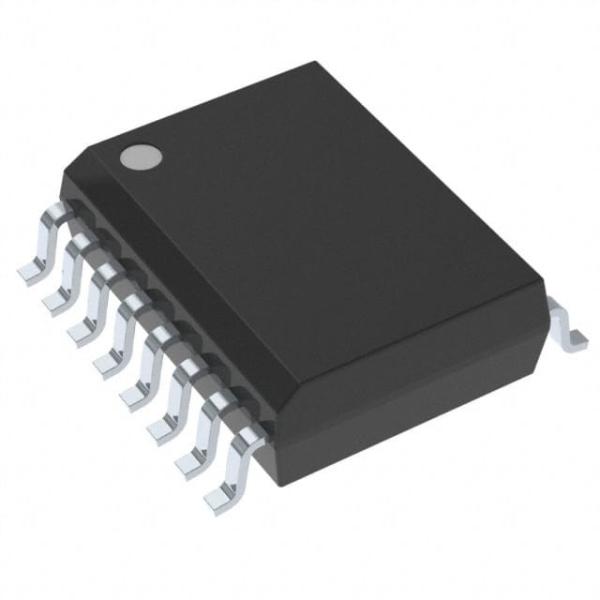

S25FL064P0XMFA000 IC FLASH 64MBIT SPI/QUAD 16SOIC Infineon Technologies Images
