CY7C1021DV33-10VXIT IC SRAM 1MBIT PARALLEL 44SOJ Infineon Technologies

Name: CY7C1021DV3310VXIT IC SRAM 1MBIT PARALLEL 44SOJ Infineon Technologies
Brand: Infineon Technologies
Price: 1 USD

Brand Name : Infineon Technologies

Model Number : CY7C1021DV33-10VXIT

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Memory Type : Volatile

Memory Format : SRAM

Technology : SRAM - Asynchronous

Memory Size : 1Mbit

Memory Organization : 64K x 16

Memory Interface : Parallel

Clock Frequency : -

Write Cycle Time - Word, Page : 10ns

Access Time : 10 ns

Voltage - Supply : 3V ~ 3.6V

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 44-BSOJ (0.400", 10.16mm Width)

Supplier Device Package : 44-SOJ

Contact Now

Product Details

Functional Description[1]

The CY7C1021DV33 is a high-performance CMOS static RAM organized as 65,536 words by 16 bits. This device has an automatic power-down feature that significantly reduces power consumption when deselected.

Features

• Temperature Ranges
— Industrial: –40°C to 85°C
— Automotive-A: –40°C to 85°C
— Automotive-E: –40°C to 125°C
• Pin-and function-compatible with CY7C1021CV33
• High speed
— tAA = 10 ns
• Low active power
— ICC = 60 mA @ 10 ns
• Low CMOS standby power
— ISB2 = 3 mA
• 2.0V data retention
• Automatic power-down when deselected
• CMOS for optimum speed/power
• Independent control of upper and lower bits
• Available in Pb-free 44-pin 400-Mil wide Molded SOJ, 44-pin TSOP II and 48-ball VFBGA packages

Specifications

Attribute	Attribute Value
Manufacturer	Cypress Semiconductor
Product Category	Memory ICs
Series	CY7C1021DV33
Type	Asynchronous
Packaging	Tape & Reel (TR) Alternate Packaging
Mounting-Style	SMD/SMT
Package-Case	44-BSOJ (0.400", 10.16mm Width)
Operating-Temperature	-40°C ~ 85°C (TA)
Interface	Parallel
Voltage-Supply	3 V ~ 3.6 V
Supplier-Device-Package	44-SOJ
Memory Capacity	1M (64K x 16)
Memory-Type	SRAM - Asynchronous
Speed	10ns
Data-Rate	SDR
Access-Time	10 ns
Format-Memory	RAM
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Interface-Type	Parallel
Organization	64 k x 16
Supply-Current-Max	60 mA
Supply-Voltage-Max	3.6 V
Supply-Voltage-Min	3 V
Package-Case	SOJ-44
Maximum-Clock-Frequency	100 MHz

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
GS71116AGJ-10 Memory	Standard SRAM, 64KX16, 10ns, CMOS, PDSO44, 0.400 INCH, ROHS COMPLIANT, SOJ-44	GSI Technology	CY7C1021DV33-10VXIT vs GS71116AGJ-10
GS71116AGJ-10IT Memory	Standard SRAM, 64KX16, 10ns, CMOS, PDSO44, 0.400 INCH, ROHS COMPLIANT, SOJ-44	GSI Technology	CY7C1021DV33-10VXIT vs GS71116AGJ-10IT
IS61LV6416-10KLI Memory	Standard SRAM, 64KX16, 10ns, CMOS, PDSO44, LEAD FREE, 0.400 INCH, PLASTIC, MS-027, SOJ-44	Integrated Silicon Solution Inc	CY7C1021DV33-10VXIT vs IS61LV6416-10KLI
CY7C1021DV33-10VXC Memory	Standard SRAM, 64KX16, 10ns, CMOS, PDSO44, 0.400 INCH, LEAD FREE, SOJ-44	Cypress Semiconductor	CY7C1021DV33-10VXIT vs CY7C1021DV33-10VXC
CY7C1021DV33-10VXI Memory	Standard SRAM, 64KX16, 10ns, CMOS, PDSO44, 0.400 INCH, LEAD FREE, SOJ-44	Cypress Semiconductor	CY7C1021DV33-10VXIT vs CY7C1021DV33-10VXI
CY7C1021BNV33L-10VXC Memory	64KX16 STANDARD SRAM, 10ns, PDSO44, 0.400 INCH, LEAD FREE, SOJ-44	Rochester Electronics LLC	CY7C1021DV33-10VXIT vs CY7C1021BNV33L-10VXC
GS71116AGJ-10T Memory	Standard SRAM, 64KX16, 10ns, CMOS, PDSO44, 0.400 INCH, ROHS COMPLIANT, SOJ-44	GSI Technology	CY7C1021DV33-10VXIT vs GS71116AGJ-10T
GS71116AGJ-10I Memory	Standard SRAM, 64KX16, 10ns, CMOS, PDSO44, 0.400 INCH, ROHS COMPLIANT, SOJ-44	GSI Technology	CY7C1021DV33-10VXIT vs GS71116AGJ-10I

Descriptions

SRAM - Asynchronous Memory IC 1Mb (64K x 16) Parallel 10ns 44-SOJ

SRAM Chip Async Single 3.3V 1M-bit 64K x 16 10ns 44-Pin SOJ T/R

SRAM 2Mb 10ns 3.3V 64Kx16 Fast Async SRAM

China CY7C1021DV33-10VXIT IC SRAM 1MBIT PARALLEL 44SOJ Infineon Technologies factory

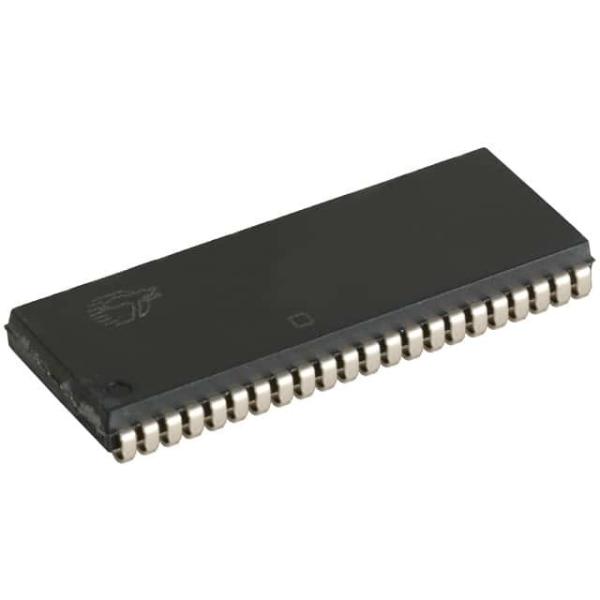

CY7C1021DV33-10VXIT IC SRAM 1MBIT PARALLEL 44SOJ Infineon Technologies Images
