CAT24C32HU4I-GT3 IC EEPROM 32KBIT I2C 1MHZ 8UDFN onsemi

Name: CAT24C32HU4IGT3 IC EEPROM 32KBIT I2C 1MHZ 8UDFN onsemi
Brand: onsemi
Price: 1 USD

Brand Name : onsemi

Model Number : CAT24C32HU4I-GT3

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Memory Type : Non-Volatile

Memory Format : EEPROM

Technology : EEPROM

Memory Size : 32Kbit

Memory Organization : 4K x 8

Memory Interface : I²C

Clock Frequency : 1 MHz

Write Cycle Time - Word, Page : 5ms

Access Time : 400 ns

Voltage - Supply : 1.7V ~ 5.5V

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 8-UFDFN Exposed Pad

Supplier Device Package : 8-UDFN-EP (2x3)

Contact Now

Product Details

Description

The CAT24C32 is a 32−Kb CMOS Serial EEPROM devices, internally organized as 4096 words of 8 bits each.
It features a 32−byte page write buffer and supports the Standard (100 kHz), Fast (400 kHz) and Fast−Plus (1 MHz) I2C protocol.
External address pins make it possible to address up to eight CAT24C32 devices on the same bus.

Features

• Supports Standard, Fast and Fast−Plus I2C Protocol
• 1.7 V to 5.5 V Supply Voltage Range
• 32−Byte Page Write Buffer
• Hardware Write Protection for Entire Memory
• Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs
(SCL and SDA)
• Low Power CMOS Technology
• 1,000,000 Program/Erase Cycles
• 100 Year Data Retention
• Industrial and Extended Temperature Range
• PDIP, SOIC, TSSOP, TDFN, UDFN 8−lead Packages and TSOP
5−lead Package
• This Device is Pb−Free, Halogen Free/BFR Free, and RoHS
Compliant

Specifications

Attribute	Attribute Value
Manufacturer	onsemi
Product Category	Memory ICs
Series	-
Packaging	Alternate Packaging
Unit-Weight	0.000335 oz
Mounting-Style	SMD/SMT
Package-Case	8-UFDFN Exposed Pad
Operating-Temperature	-40°C ~ 85°C (TA)
Interface	I2C, 2-Wire Serial
Voltage-Supply	1.7 V ~ 5.5 V
Supplier-Device-Package	8-UDFN (2x3)
Memory Capacity	32K (4K x 8)
Memory-Type	EEPROM
Speed	1MHz
Access-Time	900 ns
Format-Memory	EEPROMs - Serial
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Operating-Supply-Voltage	1.8 V 2.5 V 3.3 V 5 V
Operating-Supply-Current	2 mA
Interface-Type	Serial 2-Wire I2C
Organization	4 k x 8
Supply-Current-Max	2 mA
Supply-Voltage-Max	5.5 V
Supply-Voltage-Min	1.7 V
Package-Case	uDFN-8
Maximum-Clock-Frequency	1 MHz
Data-Retention	100 Years

Descriptions

EEPROM Memory IC 32Kb (4K x 8) I?C 1MHz 400ns 8-UDFN-EP (2x3)

EEPROM Serial-I2C 32K-bit 4K x 8 1.8V/2.5V/3.3V/5V Automotive 8-Pin UDFN EP T/R

EEPROM 32KB I2C SER EEPROM

China CAT24C32HU4I-GT3 IC EEPROM 32KBIT I2C 1MHZ 8UDFN onsemi factory

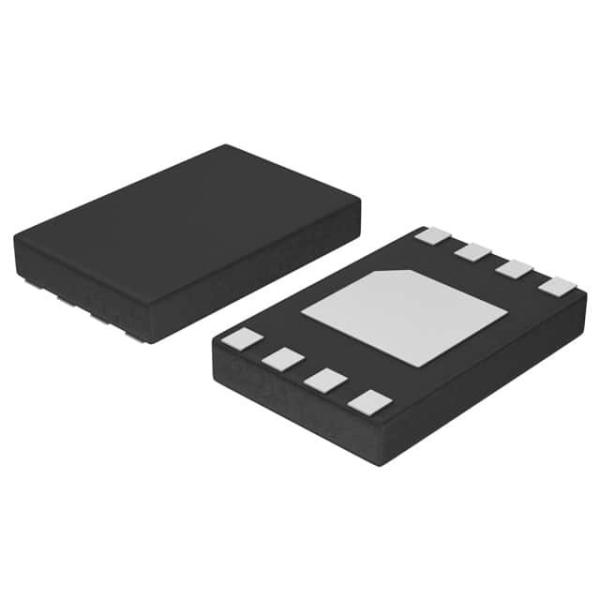

CAT24C32HU4I-GT3 IC EEPROM 32KBIT I2C 1MHZ 8UDFN onsemi Images
