AP1153ADS18 IC REG LINEAR 1.8V 100MA SOT23-5 Asahi Kasei Microdevices/AKM

Name: AP1153ADS18 IC REG LINEAR 18V 100MA SOT235 Asahi Kasei MicrodevicesAKM
Brand: Asahi Kasei Microdevices/AKM
Price: 1 USD

Brand Name : Asahi Kasei Microdevices/AKM

Model Number : AP1153ADS18

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 14V

Voltage - Output (Min/Fixed) : 1.8V

Voltage - Output (Max) : -

Voltage Dropout (Max) : -

Current - Output : 100mA

Current - Quiescent (Iq) : 145 µA

Current - Supply (Max) : 3.3 mA

PSRR : 80dB (1kHz)

Control Features : Enable

Protection Features : Over Current, Over Temperature, Reverse Polarity, Short Circuit

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : SC-74A, SOT-753

Supplier Device Package : SOT-23-5

Contact Now

Product Details

General Description

AP1120 series are low dropout positive regulator to provide 1A output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V/2.5V or 3.3V/1.8V logic supply. AP1120 series are guaranteed to have <1.3V dropout at full load current making it ideal to provide well regulated outputs dual channels with up to 18V input supply.

Features

• 1.3V maximum dropout at full load current
• Fast transient response
• Output current limiting for each channel
• Built-in thermal shutdown each channel
• Good noise rejection
• Dual output ch1=3.3V, ch2=2.5V (1.8V for B version)
• Lead Free Package: SOP-8L
• Lead Free Finish/ RoHS Compliant (Note 1)

Applications

• PC peripheral
• Communication

Specifications

Attribute	Attribute Value
Manufacturer	AKM Semiconductor Inc.
Product Category	Linear Voltage Regulators
Series	-
Packaging	Alternate Packaging
Package-Case	SC-74A, SOT-753
Operating-Temperature	-40°C ~ 85°C
Mounting-Type	Surface Mount
Supplier-Device-Package	SOT-23-5
Voltage-Input	2.1 V ~ 14 V
Current-Output	100mA
Voltage-Output	1.8V
Regulator-Topology	Positive Fixed
Voltage-Dropout-Typical	-
Number-of-Regulators	1 Regulator
Current-Limit-Min	150mA

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 1.8V 100mA SOT-23-5

China AP1153ADS18 IC REG LINEAR 1.8V 100MA SOT23-5 Asahi Kasei Microdevices/AKM factory

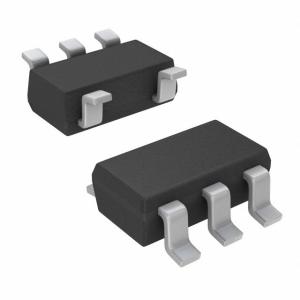

AP1153ADS18 IC REG LINEAR 1.8V 100MA SOT23-5 Asahi Kasei Microdevices/AKM Images
