AS1358-BTTT-28 IC REG LIN 2.8V 150MA TSOT23-5 ams-OSRAM USA INC.

Name: AS1358BTTT28 IC REG LIN 28V 150MA TSOT235 amsOSRAM USA INC
Brand: ams-OSRAM USA INC.
Price: 1 USD

Brand Name : ams-OSRAM USA INC.

Model Number : AS1358-BTTT-28

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 5.5V

Voltage - Output (Min/Fixed) : 2.8V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.12V @ 150mA

Current - Output : 150mA

Current - Quiescent (Iq) : 90 µA

Current - Supply (Max) : -

PSRR : 92dB ~ 62dB (1kHz ~ 100kHz)

Control Features : Enable

Protection Features : Over Temperature

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : SOT-23-5 Thin, TSOT-23-5

Supplier Device Package : TSOT-23-5

Contact Now

Product Details

General Description

The AS1358/AS1359 are ultra-low-noise, low-dropout linear regulators specifically designed to deliver up to 150/300mA continuous output current, and can achieve a low 140mV dropout for 300mA load current. The LDOs are designed and optimized to work with low-cost, small capacitance ceramic capacitors.

Key Features

Preset Output Voltages: 1.5 to 4.5V (in 50mV steps)
Output Noise: 9µVRMS @ 100Hz to 100kHz
Power-Supply Rejection Ratio: 92dB @ 1kHz
Low Dropout: 140mV @ 300mA Load
Stable with 1µF Ceramic Capacitor for any Load
Guaranteed 150/300mA Output
1.25V Internal Reference
Extremely-Low Quiescent Current: 40µA
Excellent Load/Line Transient
Overcurrent and Thermal Protection
TSOT23 5-pin Package

Applications

The devices are ideal for mobile phones, wireless phones, PDAs, handheld computers, mobile phone base stations, Bluetooth portable radios and accessories, wireless LANs, digital cameras, personal audio devices, and any other portable, battery-powered application.

Specifications

Attribute	Attribute Value
Manufacturer	ams
Product Category	Linear Voltage Regulators
Series	-
Product	Linear Voltage Regulators
Type	Low Dropout
Packaging	Alternate Packaging
Unit-Weight	0.000222 oz
Mounting-Style	SMD/SMT
Package-Case	SOT-23-5 Thin, TSOT-23-5
Operating-Temperature	-40°C ~ 85°C
Mounting-Type	Surface Mount
Output-Type	Fixed
Supplier-Device-Package	TSOT-23-5
Voltage-Input	Up to 5.5V
Number-of-Outputs	1 Output
Current-Output	150mA
Voltage-Output	2.8V
Regulator-Topology	Positive Fixed
Voltage-Dropout-Typical	0.09V @ 150mA
Number-of-Regulators	1 Regulator
Current-Limit-Min	-
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Output-Voltage	2.8 V
Input-Voltage-MAX	5.5 V
Output-Current	150 mA
Input-Voltage-MIN	2 V
Load-Regulation	0.005 % / mA
Voltage-Regulation-Accuracy	2 %
Package-Case	TSOT-23-5
Reference-Voltage	1.25 V
Dropout-Voltage	90 mV
Dropout-Voltage-Max	350 mV
Power Supply Ripple Rejection (PSRR)	62 dB
Output-Voltage-Range	-

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 2.8V 150mA TSOT-23-5

LDO Regulator Pos 2.8V 0.15A 5-Pin TSOT-23 T/R

LDO Voltage Regulators 150mA Voltage Regulator

China AS1358-BTTT-28 IC REG LIN 2.8V 150MA TSOT23-5 ams-OSRAM USA INC. factory

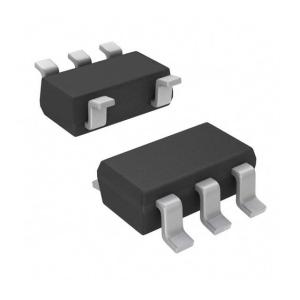

AS1358-BTTT-28 IC REG LIN 2.8V 150MA TSOT23-5 ams-OSRAM USA INC. Images
