MIC5203-5.0YM4-TR IC REG LINEAR 5V 80MA SOT143 Microchip Technology

Name: MIC520350YM4TR IC REG LINEAR 5V 80MA SOT143 Microchip Technology
Brand: Microchip Technology
Price: 1 USD

Brand Name : Microchip Technology

Model Number : MIC5203-5.0YM4-TR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 16V

Voltage - Output (Min/Fixed) : 5V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.6V @ 80mA

Current - Output : 80mA

Current - Quiescent (Iq) : 750 µA

Current - Supply (Max) : 3 mA

PSRR : -

Control Features : Enable

Protection Features : Over Current, Over Temperature, Reverse Polarity

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : TO-253-4, TO-253AA

Supplier Device Package : SOT-143

Contact Now

Product Details

General Description

The MIC5203 is a µCap 80mA linear voltage regulator with very low dropout voltage (typically 20mV at light loads and 300mV at 80mA) and very low ground current (225µA at 20mA output), offering better than 3% initial accuracy with a logic-compatible enable input. TheµCap regulator design is optimized to work with low value, low-cost ceramic capacitors. The outputs typically require only 0.47µF of output capacitance for stability.

Features

• Tiny 4- and 5-lead surface-mount packages
• Wide selection of output voltages
• Guaranteed 80mA output
• Low quiescent current
•Low dropout voltage
•Low temperature coefficient
• Current and thermal limiting
• Reversed input polarity protection
• Zero off-mode current
•Logic-controlled shutdown
• Stability with low-ESR ceramic capacitors

Specifications

Attribute	Attribute Value
Manufacturer	Microchip Technology
Product Category	Linear Voltage Regulators
Series	-
Packaging	Alternate Packaging
Mounting-Style	SMD/SMT
Package-Case	TO-253-4, TO-253AA
Operating-Temperature	-40°C ~ 125°C
Mounting-Type	Surface Mount
Supplier-Device-Package	SOT-143
Voltage-Input	Up to 16V
Current-Output	80mA
Voltage-Output	5V
Regulator-Topology	Positive Fixed
Voltage-Dropout-Typical	0.3V @ 80mA
Number-of-Regulators	1 Regulator
Current-Limit-Min	-
Output-Current	150 mA
Part-#-Aliases	MIC5203-5.0YM4 TR
Package-Case	SOT-143-4

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 5V 80mA SOT-143

LDO Regulator Pos 5V 0.08A 4-Pin(3+Tab) SOT-143 T/R

LDO Voltage Regulators

China MIC5203-5.0YM4-TR IC REG LINEAR 5V 80MA SOT143 Microchip Technology factory

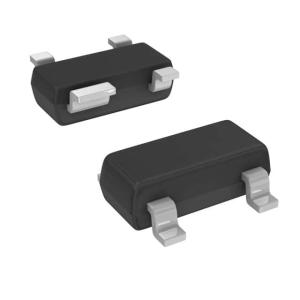

MIC5203-5.0YM4-TR IC REG LINEAR 5V 80MA SOT143 Microchip Technology Images
