S-1131B15PD-N4ATFG IC REG LINEAR 1.5V 300MA 6HSON ABLIC Inc.

Sanhuang electronics (Hong Kong) Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

S-1131B15PD-N4ATFG IC REG LINEAR 1.5V 300MA 6HSON ABLIC Inc.

Brand Name : ABLIC Inc.

Model Number : S-1131B15PD-N4ATFG

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 6.5V

Voltage - Output (Min/Fixed) : 1.5V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 1.05V @ 100mA

Current - Output : 300mA

Current - Quiescent (Iq) : 1 µA

Current - Supply (Max) : 65 µA

PSRR : 70dB (1kHz)

Control Features : Enable

Protection Features : Over Current

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 6-SMD, Flat Lead Exposed Pad

Supplier Device Package : 6-HSON (A) (2.9x2.8)

Contact Now

Product Details

The S-1131 Series is a positive voltage regulator with a low dropout voltage, high output voltage

accuracy, and low current consumption developed based on CMOS technology.

„Features

•Output voltage: 1.5 V to 5.5 V, selectable in 0.1 V steps.
•High-accuracy output voltage: ±1.0%
•Low dropout voltage: 250 mV typ. (3.0 V output product, IOUT =100 mA)
•Low current consumption: During operation: 35 µA typ., 65 µA max. During shutdown: 0.1 µA typ., 1.0 µA max.
•High peak current capability: 300 mA output is possible (at VIN ≥VOUT(S) +1.0 V)
•Built-in ON/OFF circuit: Ensures long battery life.
•High ripple rejection: 70 dB typ. (at 1.0 kHz)
•Built-in overcurrent protector: Overcurrent of output transistor can be restricted.
•Small package: SOT-89-3, SOT-89-5, 6-Pin HSON(A)
•Lead-free products

Specifications

Attribute Attribute Value
Manufacturer ABLIC
Product Category Linear Voltage Regulators
Series -
Packaging Tape & Reel (TR)
Mounting-Style SMD/SMT
Package-Case 6-WDFN Exposed Pad
Operating-Temperature -40°C ~ 85°C
Mounting-Type Surface Mount
Output-Type Fixed
Supplier-Device-Package 6-HSON
Voltage-Input Up to 6.5V
Number-of-Outputs 1 Output
Current-Output 300mA
Voltage-Output 1.5V
Regulator-Topology Positive Fixed
Voltage-Dropout-Typical 1V @ 100mA
Number-of-Regulators 1 Regulator
Current-Limit-Min -
Pd-Power-Dissipation 500 mW
Maximum Operating Temperature + 85 C
Operating temperature range - 40 C
Output-Voltage 1.5 V
Input-Voltage-MAX 6.5 V
Output-Current 300 mA
Input-Voltage-MIN 2 V
Load-Regulation 40 mV
Voltage-Regulation-Accuracy 1 %
Package-Case HSON-6
Dropout-Voltage 1 V at 100 mA
Dropout-Voltage-Max 1.05 V at 100 mA
Line-Regulation 0.2 % / V

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 1.5V 300mA 6-HSON (A) (2.9x2.8)
LDO Voltage Regulators 1.5 Volt 1% 0.25mV

China S-1131B15PD-N4ATFG IC REG LINEAR 1.5V 300MA 6HSON ABLIC Inc. factory

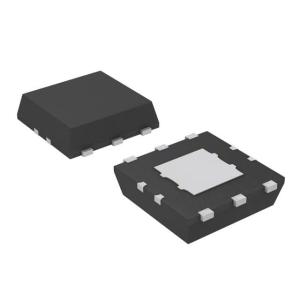

S-1131B15PD-N4ATFG IC REG LINEAR 1.5V 300MA 6HSON ABLIC Inc. Images
