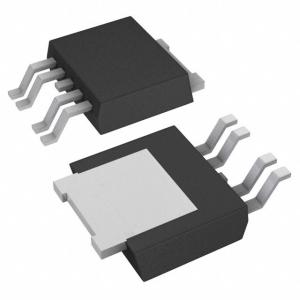

NCV4275ADT33RKG IC REG LINEAR 3.3V 450MA DPAK-5 onsemi

Brand Name : onsemi

Model Number : NCV4275ADT33RKG

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 42V

Voltage - Output (Min/Fixed) : 3.3V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 1.17V @ 300mA

Current - Output : 450mA

Current - Quiescent (Iq) : 200 µA

Current - Supply (Max) : 35 mA

PSRR : 60dB (100Hz)

Control Features : Reset

Protection Features : Over Temperature, Reverse Polarity, Short Circuit

Operating Temperature : -40°C ~ 150°C (TJ)

Mounting Type : Surface Mount

Package / Case : TO-252-5, DPak (4 Leads + Tab), TO-252AD

Supplier Device Package : DPAK-5

Contact Now

Product Details

The NCV4275A is an integrated low dropout regulator designed for use in harsh automotive environments. It includes wide operating temperature and input voltage ranges. The output is regulated at 5.0 V or 3.3 V and is rated to 450 mA of output current. It also provides a number of features, including overcurrent protection, overtemperature protection and a programmable microprocessor reset. The NCV4275A is available in the DPAK and D2PAK surface mount packages. The output is stable over a wide output capacitance and ESR range. The NCV4275A is pin for pin compatible with NCV4275.

Features

• 5.0 V and 3.3 V, ±2% Output Voltage Options
• 450 mA Output Current
• Very Low Current Consumption
• Active Reset Output
• Reset Low Down to VQ = 1.0 V
• 500 mV (max) Dropout Voltage
• Fault Protection
♦ +45 V Peak Transient Voltage
♦ −42 V Reverse Voltage
♦ Short Circuit Protection
♦ Thermal Overload Protection
• AEC−Q100 Qualified
• Pin Compatible with NCV4275
• These are Pb−Free Devices

Applications

• Auto Body Electronics

Specifications

Attribute Attribute Value
Manufacturer onsemi
Product Category Linear Voltage Regulators
Series Automotive, AEC-Q100
Product LDO Regulators
Type Low Dropout Voltage Regulator
Packaging Tape & Reel (TR)
Mounting-Style SMD/SMT
Package-Case TO-252-5, DPak (4 Leads + Tab), TO-252AD
Operating-Temperature -40°C ~ 150°C
Mounting-Type Surface Mount
Output-Type Fixed
Supplier-Device-Package DPAK-5
Voltage-Input 4.4 V ~ 42 V
Number-of-Outputs 1 Output
Current-Output 450mA
Voltage-Output 3.3V
Regulator-Topology Positive Fixed
Voltage-Dropout-Typical 1.1V @ 300mA
Number-of-Regulators 1 Regulator
Current-Limit-Min 450mA
Maximum Operating Temperature + 150 C
Operating temperature range - 40 C
Output-Voltage 3.3 V
Operating-Supply-Current 135 uA
Input-Voltage-MAX 42 V
Output-Current 450 mA
Input-Voltage-MIN 4.4 V
Load-Regulation 15 mV
Voltage-Regulation-Accuracy 2 %
Package-Case DPAK-5
Ib-Input-Bias-Current 135 uA
Quiescent-Current 150 uA
Dropout-Voltage 1.1 V at 300 mA
Dropout-Voltage-Max 1.17 V at 300 mA
Line-Regulation 5 mV
Power Supply Ripple Rejection (PSRR) 60 dB

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 450mA DPAK-5
LDO Regulator Pos 3.3V 0.45A Automotive 5-Pin(4+Tab) DPAK T/R
LDO Voltage Regulators 450mA LDO 3.3V
