TPS79901YZUR IC REG LIN POS ADJ 200MA 5DSBGA Texas Instruments

Name: TPS79901YZUR IC REG LIN POS ADJ 200MA 5DSBGA Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : TPS79901YZUR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Adjustable

Number of Regulators : 1

Voltage - Input (Max) : 6.5V

Voltage - Output (Min/Fixed) : 1.2V

Voltage - Output (Max) : 6.5V

Voltage Dropout (Max) : 0.18V @ 200mA

Current - Output : 200mA

Current - Quiescent (Iq) : 60 µA

Current - Supply (Max) : -

PSRR : 70dB ~ 38dB (100Hz ~ 100kHz)

Control Features : Enable

Protection Features : Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : 5-UFBGA, DSBGA

Supplier Device Package : 5-DSBGA

Contact Now

Product Details

DESCRIPTION

Single Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters.
Packaged either in TO-220AC, ISOWATT220AC, TO-220FPAC or D2PAK, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

FEATURES AND BENEFITS
■ Very small conduction losses
■ Negligible switching losses
■ Extremely fast switching
■ Insulated package: ISOWATT220AC, TO-220FPAC
Insulating voltage = 2000V DC
Capacitance = 12pF

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
Series	TPS79901
Packaging	Alternate Packaging
Unit-Weight	0.000056 oz
Mounting-Style	SMD/SMT
Package-Case	5-UFBGA, DSBGA
Operating-Temperature	-40°C ~ 125°C
Mounting-Type	Surface Mount
Output-Type	Adjustable
Supplier-Device-Package	5-DSBGA
Voltage-Input	2.7 V ~ 6.5 V
Number-of-Outputs	1 Output
Current-Output	200mA
Voltage-Output	1.2 V ~ 6.5 V
Regulator-Topology	Positive Adjustable
Voltage-Dropout-Typical	0.09V @ 200mA
Number-of-Regulators	1 Regulator
Current-Limit-Min	220mA
Pd-Power-Dissipation	0.53 W
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Output-Voltage	1.2 V to 6.5 V
Input-Voltage-MAX	6.5 V
Output-Current	200 mA
Input-Voltage-MIN	+ 2.7 V
Load-Regulation	0.002 % / mA
Voltage-Regulation-Accuracy	1 %
Package-Case	DSBGA-5
Ib-Input-Bias-Current	40 uA
Reference-Voltage	1.193 V
Dropout-Voltage	0.1 V at 200 mA
Dropout-Voltage-Max	175 mV at 200 mA
Line-Regulation	0.02 % / V

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
TPS79901YZUT Power Circuits	200mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low Dropout Linear Regulator 5-DSBGA -40 to 125	Texas Instruments	TPS79901YZUR vs TPS79901YZUT
TPS79901QDRVRQ1 Power Circuits	200 mA, Low Quiescent Current, Ultra-Low Noise, High PSRR, LDO Linear Regulator for Automotive 6-WSON -40 to 125	Texas Instruments	TPS79901YZUR vs TPS79901QDRVRQ1
TPS79901DRVR Power Circuits	200mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low Dropout Linear Regulator 6-WSON -40 to 125	Texas Instruments	TPS79901YZUR vs TPS79901DRVR
TPS79901DRVRG4 Power Circuits	200mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low Dropout Linear Regulator 6-WSON -40 to 125	Texas Instruments	TPS79901YZUR vs TPS79901DRVRG4
TPS79901DRVT Power Circuits	200mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low Dropout Linear Regulator 6-WSON -40 to 125	Texas Instruments	TPS79901YZUR vs TPS79901DRVT
TPS79901DRVTG4 Power Circuits	200mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low Dropout Linear Regulator 6-WSON -40 to 125	Texas Instruments	TPS79901YZUR vs TPS79901DRVTG4

Descriptions

LDO Regulator Pos 1.2V to 6.5V 0.2A 5-Pin DSBGA T/R

LDO Voltage Regulators 200mA High PSRR LDO

China TPS79901YZUR IC REG LIN POS ADJ 200MA 5DSBGA Texas Instruments factory

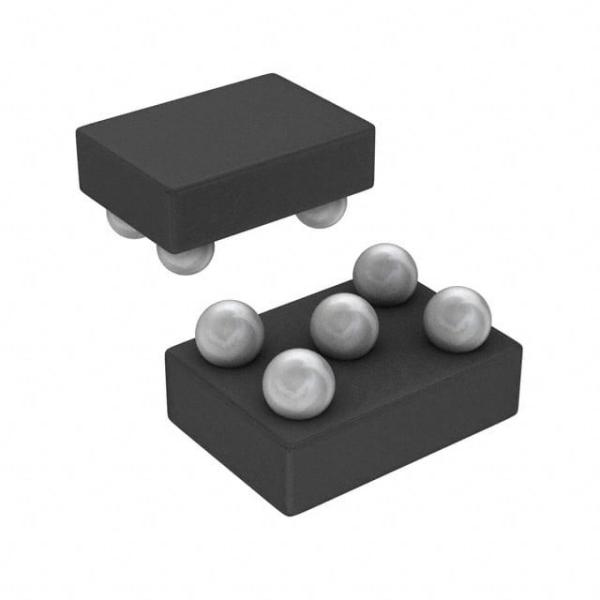

TPS79901YZUR IC REG LIN POS ADJ 200MA 5DSBGA Texas Instruments Images
