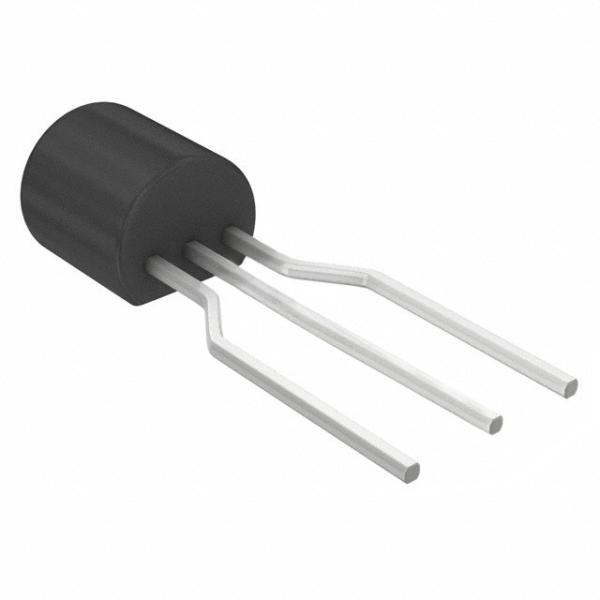

AS78L05ZTR-E1 IC REG LINEAR 5V 100MA TO92 Diodes Incorporated

Brand Name : Diodes Incorporated

Model Number : AS78L05ZTR-E1

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 30V

Voltage - Output (Min/Fixed) : 5V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 1.8V @ 100mA (Typ)

Current - Output : 100mA

Current - Quiescent (Iq) : 5.5 mA

Current - Supply (Max) : -

PSRR : 62dB (120Hz)

Control Features : -

Protection Features : Over Temperature, Short Circuit

Operating Temperature : -40°C ~ 125°C

Mounting Type : Through Hole

Package / Case : TO-226-3, TO-92-3 (TO-226AA) Formed Leads

Supplier Device Package : TO-92

Contact Now

Product Details

Description

The AS78LXX series are three terminal positive regulators designed for a wide variety of applications including local, on-card regulation.
This series of regulators are complete with internal current limiting, thermal shutdown protection, and safe-area compensation which make them virtually immune from output overload. If adequate heat sinking are provided, these regulators can deliver output currents up to 100mA.
The AS78LXX series are available in TO-92 (bulk or ammo packing), SOT-89 and SOIC-8 packages.

Features

• Output Current up to 100mA
• Fixed Output Voltages of 5V, 12V and 15V
• Output Voltage Accuracy of ±5% over the Full Temperature Range
• Internal Short Circuit Current Limiting
• Internal Thermal Overload Protection
• No External Components
• Output Transistor Safe-area Protection

Applications

• Consumer Electronics
• Microprocessor Power Supply
• Mother Board

Specifications

Attribute Attribute Value
Manufacturer Diodes Incorporated
Product Category Linear Voltage Regulators
Series AS78L05
Packaging Cut Tape (CT) Alternate Packaging
Package-Case TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Operating-Temperature -40°C ~ 125°C
Mounting-Type Through Hole
Supplier-Device-Package TO-92
Voltage-Input Up to 30V
Current-Output 100mA
Voltage-Output 5V
Regulator-Topology Positive Fixed
Voltage-Dropout-Typical 1.8V @ 100mA
Number-of-Regulators 1 Regulator
Current-Limit-Min -

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part# Description Manufacturer Compare
AS78L05Z-E1
Power Circuits		 Fixed Positive Standard Regulator, 5VBIPolar, Diodes Incorporated AS78L05ZTR-E1 vs AS78L05Z-E1
AS78L05ZTR-G1
Power Circuits		 Fixed Positive Standard Regulator, 5VBIPolar, Diodes Incorporated AS78L05ZTR-E1 vs AS78L05ZTR-G1
AS78L05CZTR-G1
Power Circuits		 Fixed Positive Standard Regulator, 5VBIPolar, Diodes Incorporated AS78L05ZTR-E1 vs AS78L05CZTR-G1
AS78L05CZTR-E1
Power Circuits		 Fixed Positive Standard Regulator, 5VBIPolar, Diodes Incorporated AS78L05ZTR-E1 vs AS78L05CZTR-E1
AS78L05Z-G1
Power Circuits		 Fixed Positive Standard Regulator, 5VBIPolar, Diodes Incorporated AS78L05ZTR-E1 vs AS78L05Z-G1

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 5V 100mA TO-92
Standard Regulator Pos 5V 0.1A 3-Pin TO-92 Ammo
Voltage Regulators - Switching Regulators 100mA VTG REG 36V
