NCP785AH33T1G IC REG LINEAR 3.3V 10MA SOT89-3 onsemi

Name: NCP785AH33T1G IC REG LINEAR 33V 10MA SOT893 onsemi
Brand: onsemi
Price: 1 USD

Brand Name : onsemi

Model Number : NCP785AH33T1G

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 450V

Voltage - Output (Min/Fixed) : 3.3V

Voltage - Output (Max) : -

Voltage Dropout (Max) : -

Current - Output : 10mA

Current - Quiescent (Iq) : 14 µA

Current - Supply (Max) : -

PSRR : 70dB (1kHz)

Control Features : -

Protection Features : Over Current, Over Temperature

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : TO-243AA

Supplier Device Package : SOT-89-3

Contact Now

Product Details

The NCP7800 series consists of 3 pin, fixed output, positive linear voltage regulators, suitable for a wide variety of applications. These regulators are extremely rugged, incorporating internal current limiting, thermal shutdown and safe-area compensation. With adequate heat sinking they can deliver output currents in excess of 1.0 A. Designed as direct replacements for the popular MC7800 family, these products offer enhanced ESD protection.

Features

• Output Current in Excess of 1.0 A
• No External Components Required
• Internal Thermal Overload Protection
• Internal Short Circuit Current Limiting
• Output Transistor Safe−Area Compensation
• Output Voltage Offered in 4% Tolerance
• Available in Standard 3−Lead Transistor Packages
• For Tighter Tolerances and Extended Operating Range Refer to MC7800
• Enhanced ESD Tolerance:
HBM 4 kV (5 V and 8 V Options), 3 kV
(12 V and 15 V Options), and MM 400 V
• These are Pb−Free Devices

Specifications

Attribute	Attribute Value
Manufacturer	ON Semiconductor
Product Category	Linear Voltage Regulators
Series	-
Product	Linear Regulators
Type	High-Performance
Packaging	Alternate Packaging
Unit-Weight	0.004603 oz
Mounting-Style	SMD/SMT
Package-Case	TO-243AA
Operating-Temperature	-40°C ~ 85°C
Mounting-Type	Surface Mount
Output-Type	Fixed
Supplier-Device-Package	SOT-89-3
Voltage-Input	25 V ~ 450 V
Number-of-Outputs	1 Output
Current-Output	10mA
Voltage-Output	3.3V
Regulator-Topology	Positive Fixed
Voltage-Dropout-Typical	-
Number-of-Regulators	1 Regulator
Current-Limit-Min	10.5mA
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Polarity	Positive
Output-Voltage	3.3 V
Input-Voltage-MAX	450 V
Output-Current	10.5 mA
Input-Voltage-MIN	25 V
Load-Regulation	0.6 %
Package-Case	SOT-89-3
Quiescent-Current	7.5 uA
Line-Regulation	0.2 %
Power Supply Ripple Rejection (PSRR)	70 dB

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 10mA SOT-89-3

Standard Regulator Pos 3.3V 0.0105A 4-Pin(3+Tab) SOT-89 T/R

Linear Voltage Regulators HV LINEAR REG 10MA 3.3V

China NCP785AH33T1G IC REG LINEAR 3.3V 10MA SOT89-3 onsemi factory

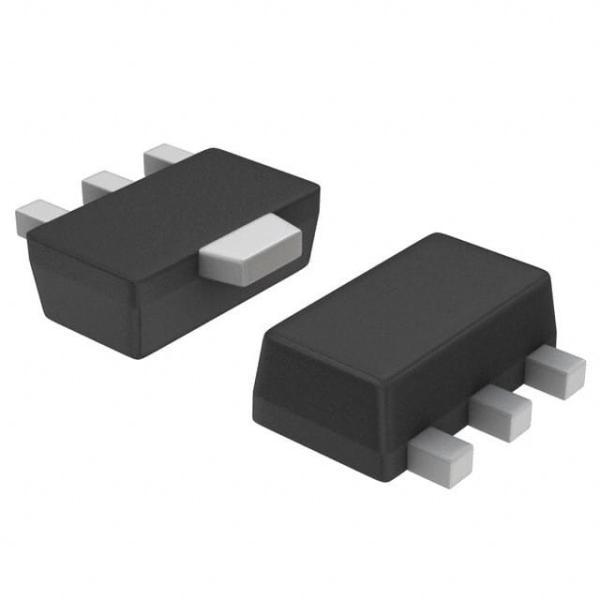

NCP785AH33T1G IC REG LINEAR 3.3V 10MA SOT89-3 onsemi Images
