NCV59748MWADJTBG IC REG LINEAR POS ADJ 1.5A 10DFN onsemi

Brand Name : onsemi

Model Number : NCV59748MWADJTBG

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Adjustable

Number of Regulators : 1

Voltage - Input (Max) : 5.5V

Voltage - Output (Min/Fixed) : 0.8V

Voltage - Output (Max) : 3.6V

Voltage Dropout (Max) : 1.6V @ 1.5A

Current - Output : 1.5A

Current - Quiescent (Iq) : -

Current - Supply (Max) : -

PSRR : 75dB (1kHz)

Control Features : Enable

Protection Features : Over Current, Over Temperature

Operating Temperature : -40°C ~ 125°C (TJ)

Mounting Type : Surface Mount

Package / Case : 10-VFDFN Exposed Pad

Supplier Device Package : 10-DFN (3x3)

Contact Now

Product Details

1.5 A, Very Low-Dropout (VLDO) Fast Transient Response Regulator Series

The NCP59150 series are high precision, very low dropout (VLDO), low ground current positive voltage regulators that are capable of providing an output current in excess of 1.5 A with a typical dropout voltage lower than 300 mV at 1.5 A load current. The devices are stable with ceramic output capacitors. This series consists of Adjustable output voltage and fixed voltage versions.

Features

• Output Current in Excess of 1.5 A
• 300 mV Typical Dropout Voltage at 1.5 A
• Adjustable and Fixed Output Voltage Options
• Low Ground Current
• Fast Transient Response
• Stable with Ceramic Output Capacitor
• Logic Compatible Enable and Error Flag Pins
• Current Limit, Reverse Current and Thermal Shutdown Protection
• Operation up to 13.5 V Input Voltage
• NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These are Pb−Free Devices

Applications

• Consumer and Industrial Equipment Point of Regulation
• Servers and Networking Equipment
• FPGA, DSP and Logic Power Supplies
• Switching Power Supply Post Regulation
• Battery Chargers
• Functional Replacement for Industry Standard MIC29150, MIC39150, MIC37150

Specifications

Attribute Attribute Value
Manufacturer onsemi
Product Category Linear Voltage Regulators
Product LDO Regulators
Type Linear Regulator
Packaging Reel
Mounting-Style SMD/SMT
Output-Type Adjustable
Number-of-Outputs 1 Output
Maximum Operating Temperature + 125 C
Operating temperature range - 40 C
Output-Voltage Adj
Input-Voltage-MAX 5.5 V
Output-Current 1.5 A
Input-Voltage-MIN 1.8 V
Load-Regulation 0.09 %/A
Voltage-Regulation-Accuracy 0.5 %
Package-Case DFN-10
Reference-Voltage 800 mV
Dropout-Voltage 60 mV
Dropout-Voltage-Max 165 mV
Line-Regulation 0.03 %/V
Power Supply Ripple Rejection (PSRR) 30 dB
Output-Voltage-Range 800 mV to 3.6 V
Manufacturer ON Semiconductor
Product-Category LDO Voltage Regulators
RoHS Details
Maximum-Operating-Temperature + 125 C
Brand ON Semiconductor
Minimum-Operating-Temperature - 40 C
PSRR-Ripple-Rejection-Typ 30 dB

Descriptions

Linear Voltage Regulator IC Positive Adjustable 1 Output 0.8 V ~ 3.6 V 1.5A 10-DFN (3x3)
LDO Regulator Pos 0.8V to 3.6V 1.5A Automotive 10-Pin DFN EP T/R
LDO Voltage Regulators 1.5 A DUAL-RAIL VLDO L

China NCV59748MWADJTBG IC REG LINEAR POS ADJ 1.5A 10DFN onsemi factory

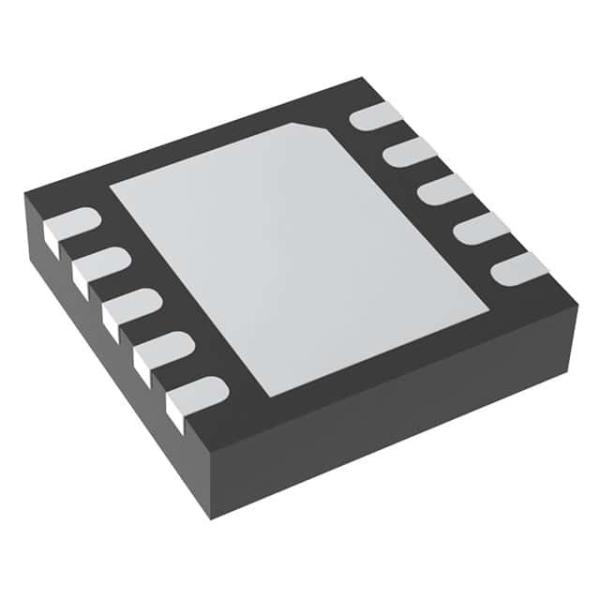

NCV59748MWADJTBG IC REG LINEAR POS ADJ 1.5A 10DFN onsemi Images
