UA78M33CKCS IC REG LINEAR 3.3V 500MA TO220-3 Texas Instruments

Brand Name : Texas Instruments

Model Number : UA78M33CKCS

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 25V

Voltage - Output (Min/Fixed) : 3.3V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 2V @ 350mA

Current - Output : 500mA

Current - Quiescent (Iq) : -

Current - Supply (Max) : -

PSRR : 80dB (120Hz)

Control Features : -

Protection Features : Over Current, Over Temperature, Short Circuit

Operating Temperature : 0°C ~ 125°C

Mounting Type : Through Hole

Package / Case : TO-220-3

Supplier Device Package : TO-220-3

Contact Now

Product Details

UA78M33CKCS Description

The UA78M33CKCS is a fixed-voltage integrated-circuit voltage regulator designed for a wide range of applications. The internal current-limiting and thermal-shutdown features of this regulator essentially make it immune to overload. In addition to use as a fixed-voltage regulator, this device can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.


UA78M33CKCS Features

3-Terminal regulator
Output current up to 500 mA
No external components
Internal thermal-overload protection
High power-dissipation capability
Internal short-circuit current limiting
Output transistor safe-area compensation


UA78M33CKCS Applications

Power Management

Specifications

Attribute Attribute Value
Manufacturer Texas Instruments
Product Category Linear Voltage Regulators
Series UA78M33
Packaging Tube Alternate Packaging
Unit-Weight 0.067197 oz
Mounting-Style Through Hole
Package-Case TO-220-3
Operating-Temperature 0°C ~ 125°C
Mounting-Type Through Hole
Output-Type Fixed
Supplier-Device-Package TO-220-3
Voltage-Input 5.3 V ~ 25 V
Number-of-Outputs 1 Output
Current-Output 500mA
Voltage-Output 3.3V
Regulator-Topology Positive Fixed
Voltage-Dropout-Typical 2V @ 350mA
Number-of-Regulators 1 Regulator
Current-Limit-Min -
Maximum Operating Temperature + 125 C
Operating temperature range 0 C
Polarity Positive
Output-Voltage 3.3 V
Input-Voltage-MAX 25 V
Output-Current 500 mA
Input-Voltage-MIN 5.3 V
Load-Regulation 100 mV
Package-Case TO-220-3
Line-Regulation 100 mV
Power Supply Ripple Rejection (PSRR) 80 dB

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part# Description Manufacturer Compare
UA78M33CKCE3
Power Circuits		 3/4 Pin 500mA Fixed 3.3V Positive Voltage Regulator 3-TO-220 0 to 125 Texas Instruments UA78M33CKCS vs UA78M33CKCE3
UA78M33CKCSE3
Power Circuits		 500-mA, 25-V linear voltage regulator 3-TO-220 0 to 125 Texas Instruments UA78M33CKCS vs UA78M33CKCSE3
UA78M33CKC
Power Circuits		 3/4 Pin 500mA Fixed 3.3V Positive Voltage Regulator 3-TO-220 0 to 125 Texas Instruments UA78M33CKCS vs UA78M33CKC

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 500mA TO-220-3
Standard Regulator Pos 3.3V 0.5A 3-Pin(3+Tab) TO-220 Tube
Linear Voltage Regulators 3.3 V 500mA Fix Pos Voltage Regulator

China UA78M33CKCS IC REG LINEAR 3.3V 500MA TO220-3 Texas Instruments factory

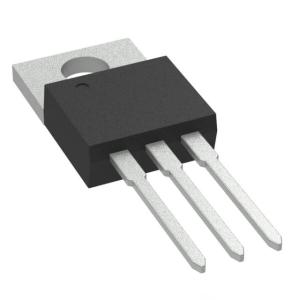

UA78M33CKCS IC REG LINEAR 3.3V 500MA TO220-3 Texas Instruments Images
