NCP752BMX33TCG IC REG LINEAR 3.3V 200MA 6XDFN onsemi

Name: NCP752BMX33TCG IC REG LINEAR 33V 200MA 6XDFN onsemi
Brand: onsemi
Price: 1 USD

Brand Name : onsemi

Model Number : NCP752BMX33TCG

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 5.5V

Voltage - Output (Min/Fixed) : 3.3V

Voltage - Output (Max) : -

Voltage Dropout (Max) : -

Current - Output : 200mA

Current - Quiescent (Iq) : 25 µA

Current - Supply (Max) : -

PSRR : -

Control Features : Enable, Power Good

Protection Features : Over Current, Over Temperature, Under Voltage Lockout (UVLO)

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : 6-XFDFN

Supplier Device Package : 6-XDFN (1.5x1.5)

Contact Now

Product Details

The NCP7800 series consists of 3 pin, fixed output, positive linear voltage regulators, suitable for a wide variety of applications. These regulators are extremely rugged, incorporating internal current limiting, thermal shutdown and safe-area compensation. With adequate heat sinking they can deliver output currents in excess of 1.0 A. Designed as direct replacements for the popular MC7800 family, these products offer enhanced ESD protection.

Features

• Output Current in Excess of 1.0 A
• No External Components Required
• Internal Thermal Overload Protection
• Internal Short Circuit Current Limiting
• Output Transistor Safe−Area Compensation
• Output Voltage Offered in 4% Tolerance
• Available in Standard 3−Lead Transistor Packages
• For Tighter Tolerances and Extended Operating Range Refer to MC7800
• Enhanced ESD Tolerance:
HBM 4 kV (5 V and 8 V Options), 3 kV
(12 V and 15 V Options), and MM 400 V
• These are Pb−Free Devices

Specifications

Attribute	Attribute Value
Manufacturer	onsemi
Product Category	Linear Voltage Regulators
Series	-
Packaging	Tape & Reel (TR)
Package-Case	6-XFDFN
Operating-Temperature	-40°C ~ 125°C
Mounting-Type	Surface Mount
Supplier-Device-Package	6-XDFN (1.5x1.5)
Voltage-Input	Up to 5.5V
Current-Output	200mA
Voltage-Output	3.3V
Regulator-Topology	Positive Fixed
Voltage-Dropout-Typical	-
Number-of-Regulators	1 Regulator
Current-Limit-Min	210mA

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 200mA 6-XDFN (1.5x1.5)

LDO Voltage Regulators 200 MA LDO ULTRA- LOW IQ

China NCP752BMX33TCG IC REG LINEAR 3.3V 200MA 6XDFN onsemi factory

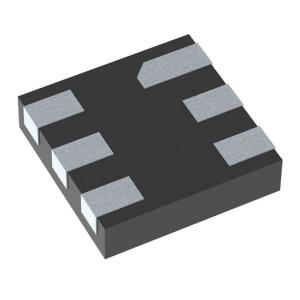

NCP752BMX33TCG IC REG LINEAR 3.3V 200MA 6XDFN onsemi Images
