TLV76750DRVR IC REG LINEAR 5V 1A 6WSON Texas Instruments

Name: TLV76750DRVR IC REG LINEAR 5V 1A 6WSON Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : TLV76750DRVR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 16V

Voltage - Output (Min/Fixed) : 5V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.9V @ 1A

Current - Output : 1A

Current - Quiescent (Iq) : 80 µA

Current - Supply (Max) : 1.5 mA

PSRR : 70dB (120Hz)

Control Features : Enable

Protection Features : Over Current, Over Temperature, UVLO

Operating Temperature : -40°C ~ 125°C (TJ)

Mounting Type : Surface Mount

Package / Case : 6-WDFN Exposed Pad

Supplier Device Package : 6-WSON (2x2)

Contact Now

Product Details

Description: The TLV76750DRVR is a linear voltage regulator from Texas Instruments Integrated Circuits (ICs). It has 6 pins and a height of 800 µm. It has an accuracy of 1% and a manufacturer lifecycle status of ACTIVE (Last Updated). It has a minimum supply voltage of 2.5 V, one output, a lifecycle status of Production (Last Updated), a dropout voltage of 900 mV, a nominal supply current of 60 µA, a maximum junction temperature of 125 °C, a maximum supply voltage of 5.5 V, an output voltage of 1.8 V, and an output current of 500 mA.
The TLV76750DRVR is designed for applications that require a low dropout voltage and low quiescent current. It is suitable for use in battery-powered systems, portable electronics, and other applications that require a low-power, low-noise, and low-dropout voltage regulator. It is also suitable for use in automotive, industrial, and medical applications.

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
Lifecycle-Status	Production (Last Updated
Manufacturer-Lifecycle-Status	ACTIVE (Last Updated
Number-of-Pins	6
Accuracy	1 %
Dropout-Voltage	900 mV
Max-Junction-Temperature-Tj	125 °C
Max-Operating-Temperature	125 °C
Max-Supply-Voltage	16 V
Min-Operating-Temperature	-40 °C
Min-Supply-Voltage	2.5 V
Nominal-Supply-Current	60 µA
Number-of-Outputs	1
Output-Current	1 A
Output-Voltage	5 V
Height	800 µm
Length	2 mm
Thickness	750 µm
Width	2 mm

China TLV76750DRVR IC REG LINEAR 5V 1A 6WSON Texas Instruments factory

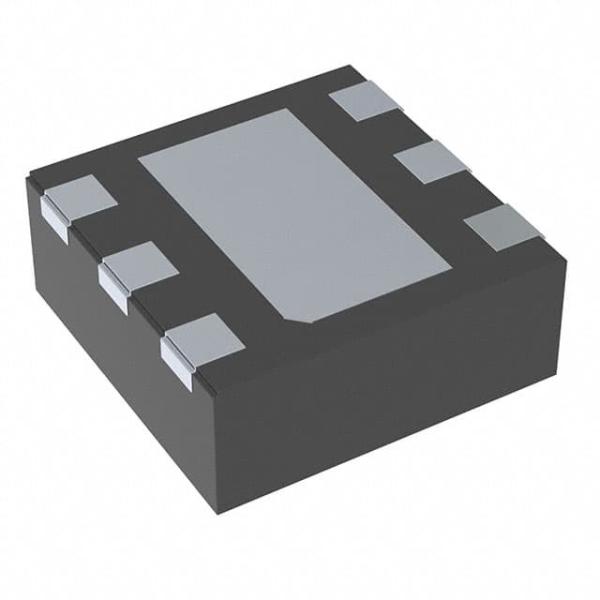

TLV76750DRVR IC REG LINEAR 5V 1A 6WSON Texas Instruments Images
