FAN1581DX IC REG LINEAR POS ADJ 5A TO252-5 onsemi

Name: FAN1581DX IC REG LINEAR POS ADJ 5A TO2525 onsemi
Brand: onsemi
Price: 1 USD

Brand Name : onsemi

Model Number : FAN1581DX

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Adjustable

Number of Regulators : 1

Voltage - Input (Max) : 7V

Voltage - Output (Min/Fixed) : 1.25V

Voltage - Output (Max) : 5.7V

Voltage Dropout (Max) : 1.18V @ 5A

Current - Output : 5A

Current - Quiescent (Iq) : 6 mA

Current - Supply (Max) : -

PSRR : 80dB (120Hz)

Control Features : -

Protection Features : Over Current, Over Temperature

Operating Temperature : 0°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : TO-252-5, DPak (4 Leads + Tab), TO-252AD

Supplier Device Package : TO-252-5

Contact Now

Product Details

Description

The FAN1581, FAN1581-1.2, FAN1581-1.5, and FAN1581- 2.5 are ultra-low dropout regulators with 5A output current capability. These devices have been optimized for low voltage applications including VTT bus termination, where transient response and minimum input voltage are critical. The FAN1581 is ideal for low voltage microprocessor applications requiring a regulated output from 1.3V to 5.7V with a power input supply of 1.75V to 6.5V. The FAN1581-1.5 offers fixed 1.5V with 5A current capabilities for GTL+ bus VTT termination. Additionally, the FAN1581-1.2 offers fixed 1.2V output for CPU Bus termination. The FAN1581-2.5 offers fixed 2.5V with 5A current capability for logic IC operation and processors while minimizing the overall power dissipation.

Features

• Ultra Low dropout voltage, 0.4V typical at 5A
• 1.2V Versions available for GTL termination
• Remote sense operation
• Fast transient response
• Load regulation: 0.05% typical
• 0.5% typical initial accuracy
• On-chip thermal limiting
• TO-263, TO-252 and TO-220 packages

Applications

• Support of GTL+ bus supply
• Low voltage logic supply
• Embedded Processor supplies
• Split plane regulator
• 2.5V, and 1.8V Logic Families
• DDR Termination Supply

Specifications

Attribute	Attribute Value
Manufacturer	onsemi
Product Category	Linear Voltage Regulators
Series	-
Packaging	Tape & Reel (TR)
Package-Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Operating-Temperature	0°C ~ 125°C
Mounting-Type	Surface Mount
Supplier-Device-Package	TO-252-3
Voltage-Input	Up to 7V
Current-Output	5A
Voltage-Output	1.25 V ~ 5.7 V
Regulator-Topology	Positive Adjustable
Voltage-Dropout-Typical	0.4V @ 5A
Number-of-Regulators	1 Regulator
Current-Limit-Min	5.2A

Descriptions

Linear Voltage Regulator IC Positive Adjustable 1 Output 1.25 V ~ 5.7 V 5A TO-252-5

China FAN1581DX IC REG LINEAR POS ADJ 5A TO252-5 onsemi factory

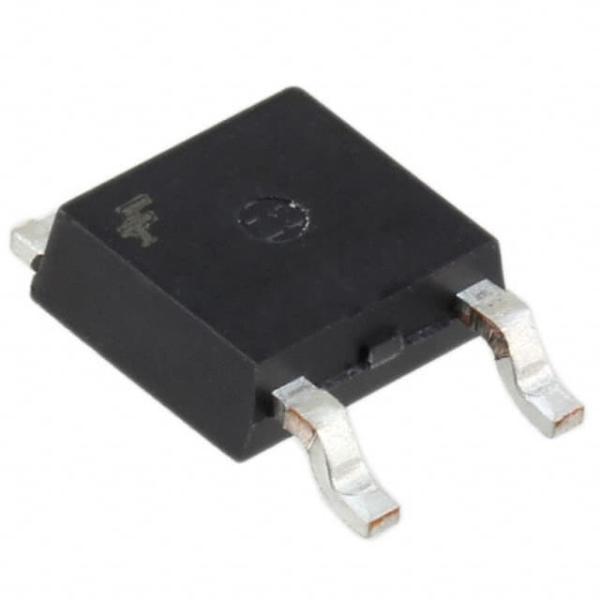

FAN1581DX IC REG LINEAR POS ADJ 5A TO252-5 onsemi Images
