MIC37300-3.3WR-TR IC REG LINEAR 3.3V 3A SPAK-3 Microchip Technology

Name: MIC3730033WRTR IC REG LINEAR 33V 3A SPAK3 Microchip Technology
Brand: Microchip Technology
Price: 1 USD

Brand Name : Microchip Technology

Model Number : MIC37300-3.3WR-TR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 6V

Voltage - Output (Min/Fixed) : 3.3V

Voltage - Output (Max) : -

Voltage Dropout (Max) : -

Current - Output : 3A

Current - Quiescent (Iq) : -

Current - Supply (Max) : -

PSRR : -

Control Features : -

Protection Features : Over Current, Over Temperature, Reverse Polarity

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : Spak-3 (3 Leads + Tab)

Supplier Device Package : S-PAK-3

Contact Now

Product Details

General Description

The Micrel MIC37300/01/02/03 is a 3.0A low-dropout linear voltage regulator that provides a low voltage, high current output with a minimum number of external components. It offers high precision, ultra-low dropout (500mV over temperature), and low ground current.

Features

• 3.0A minimum guaranteed output current
• 500mV maximum dropout voltage over temperature
− Ideal for 3.0V to 2.5V conversion
− Ideal for 2.5V to 1.8V, 1.65V, or 1.5V conversion
• Stable with ceramic or tantalum capacitor
• Wide input voltage range
− VIN: 2.25V to 6.0V
• +1.0% initial output tolerance
• Fixed and adjustable output voltages:
− MIC37300: 3-pin S-Pak fixed voltages
− MIC37301: 5-pin S-Pak or 8-pin ePad SOIC fixed voltages with flag
− MIC37302: 5-pin adjustable voltage
− MIC37303: 8-pin ePad SOIC, DFN adjustable voltage with flag
• Excellent line and load regulation specifications
• Thermal-shutdown and current-limit protection
• Reverse-leakage protection
• Low profile S-Pak package

Applications

• LDO linear regulator for low-voltage digital IC
• PC add-in cards
• High-efficiency linear power supplies
• SMPS post regulator
• Battery charger

Specifications

Attribute	Attribute Value
Manufacturer	Microchip Technology
Product Category	Linear Voltage Regulators
Series	-
Packaging	Tape & Reel (TR) Alternate Packaging
Mounting-Style	SMD/SMT
Package-Case	Spak-3 (3 Leads + Tab)
Operating-Temperature	-40°C ~ 125°C
Mounting-Type	Surface Mount
Supplier-Device-Package	S-PAK-3
Voltage-Input	Up to 6V
Current-Output	3A
Voltage-Output	3.3V
Regulator-Topology	Positive Fixed
Voltage-Dropout-Typical	0.3V @ 3A
Number-of-Regulators	1 Regulator
Current-Limit-Min	-
Output-Current	1 A
Part-#-Aliases	MIC37300-3.3WR TR
Package-Case	SPAK-3

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 3A S-PAK-3

LDO Regulator Pos 3.3V 3A 4-Pin(3+Tab) SPAK T/R

LDO Voltage Regulators

China MIC37300-3.3WR-TR IC REG LINEAR 3.3V 3A SPAK-3 Microchip Technology factory

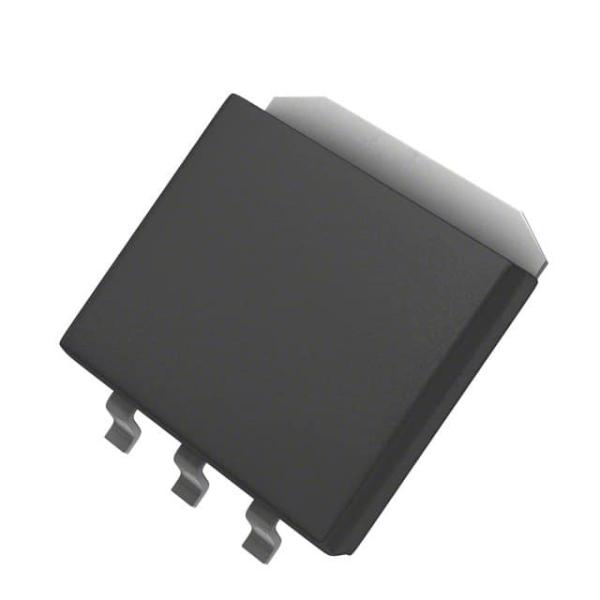

MIC37300-3.3WR-TR IC REG LINEAR 3.3V 3A SPAK-3 Microchip Technology Images
