MIC94310-GYMT-TR IC REG LINEAR 1.8V 200MA 4TMLF Microchip Technology

Brand Name : Microchip Technology

Model Number : MIC94310-GYMT-TR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 3.6V

Voltage - Output (Min/Fixed) : 1.8V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.1V @ 200mA

Current - Output : 200mA

Current - Quiescent (Iq) : 250 µA

Current - Supply (Max) : -

PSRR : 85dB ~ 50dB (100Hz ~ 10MHz)

Control Features : Enable

Protection Features : Over Current, Over Temperature

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : 4-UFDFN Exposed Pad, 4-TMLF®

Supplier Device Package : 4-TMLF® (1.2x1.6)

Contact Now

Product Details

General Description

The MIC94070-73 are high-side load switches designed for operation between 1.7V to 5.5V. The devices contain a low on-resistance P-channel MOSFET that supports 1.2A of continuous current. The MIC94071 and MIC94073 feature an active load discharge circuit which insures capacitive loads retain no charge when the main switch is in an OFF state.

Features

• 1.7V to 5.5V input voltage range
• 1.2A continuous operating current
• 3A pulse current
• 120mΩ RDSON (typical)
• Built-in level shift for control logic; can be operated by 1.5V logic.
• Low 2µA quiescent current
• Soft-Start: MIC94072/73
• Micro-power shutdown <1µA
• Load discharge circuit: MIC94071, MIC94073
• Space saving 1.2mm × 1.6mm Thin MLF® package

Applications

• Load switch in portable applications:
- Cellular phones
- PDAs
- MP3 players
- Digital Cameras
- Portable instrumentation
• Battery switch-over circuits
• Level translator

Specifications

Attribute Attribute Value
Manufacturer Microchip Technology
Product Category Linear Voltage Regulators
Series Ripple Blocker?
Packaging Alternate Packaging
Mounting-Style SMD/SMT
Package-Case 4-UFDFN Exposed Pad, 4-TMLFR
Operating-Temperature -40°C ~ 125°C
Mounting-Type Surface Mount
Supplier-Device-Package 4-TMLFR (1.2x1.6)
Voltage-Input Up to 3.6V
Number-of-Outputs 1 Output
Current-Output 200mA
Voltage-Output 1.8V
Regulator-Topology Positive Fixed
Voltage-Dropout-Typical 0.04V @ 200mA
Number-of-Regulators 1 Regulator
Current-Limit-Min 250mA
Maximum Operating Temperature + 125 C
Operating temperature range - 40 C
Output-Current 200 mA
Part-#-Aliases MIC94310-GYMT TR
Package-Case MLF-4
Functional compatible componentForm,Package,Functional compatible component
Manufacturer Part# Description Manufacturer Compare
MIC94310-GYMT
Power Circuits		 1.8V FIXED POSITIVE LDO REGULATOR, 0.1V DROPOUT Microchip Technology Inc MIC94310-GYMT-TR vs MIC94310-GYMT
MIC94310-GYMT-T5
Power Circuits		 FIXED POSITIVE LDO REGULATOR Microchip Technology Inc MIC94310-GYMT-TR vs MIC94310-GYMT-T5
MIC94310-GYCS
Power Circuits		 Fixed Positive LDO Regulator, 1.8V, 0.1V Dropout, CMOS, PBGA4 Micrel Inc MIC94310-GYMT-TR vs MIC94310-GYCS

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 1.8V 200mA 4-TMLF? (1.2x1.6)
LDO Regulator Pos 1.8V 0.2A Automotive 4-Pin TDFN EP T/R
LDO Voltage Regulators

China MIC94310-GYMT-TR IC REG LINEAR 1.8V 200MA 4TMLF Microchip Technology factory

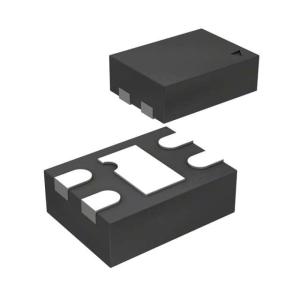

MIC94310-GYMT-TR IC REG LINEAR 1.8V 200MA 4TMLF Microchip Technology Images
