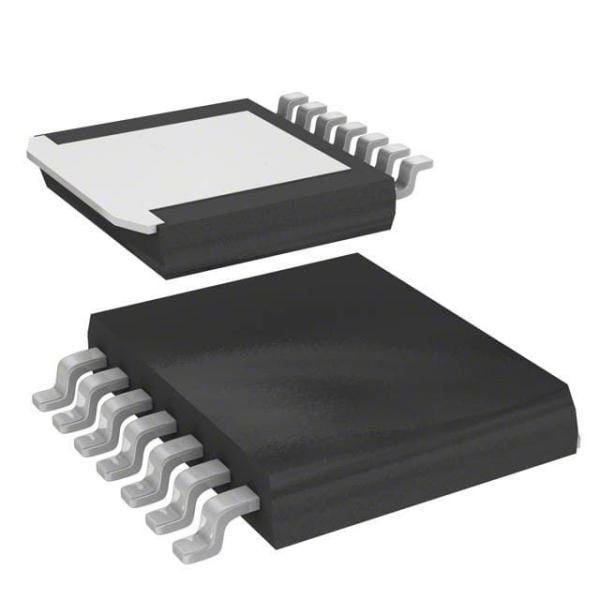

MIC69502WR-TR IC REG LINEAR POS ADJ 5A SPAK-7 Microchip Technology

Name: MIC69502WRTR IC REG LINEAR POS ADJ 5A SPAK7 Microchip Technology
Brand: Microchip Technology
Price: 1 USD

Brand Name : Microchip Technology

Model Number : MIC69502WR-TR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Adjustable

Number of Regulators : 1

Voltage - Input (Max) : 5.5V

Voltage - Output (Min/Fixed) : 0.5V

Voltage - Output (Max) : 5.5V

Voltage Dropout (Max) : 0.5V @ 5A

Current - Output : 5A

Current - Quiescent (Iq) : 5 mA

Current - Supply (Max) : 150 mA

PSRR : -

Control Features : Enable

Protection Features : Over Current, Over Temperature

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : SPak-7 (7 leads + Tab)

Supplier Device Package : S-PAK-7

Contact Now

Product Details

General Description

The MIC69502 is a 5A, low dropout linear regulator that provides low voltage high current outputs with a minimum of external components. It offers high precision and ultra low dropout of 500mV under worst case conditions.

Features
• Input voltage range: VIN: 1.65V to 5.5V
• ±1.0% initial output tolerance
• Maximum dropout (VIN – VOUT) of 500mV
over temperature
• Adjustable output voltage down to 0.5V
• Stable with 10µF ceramic output capacitor (5A)
• Excellent line and load regulation specifications
• Logic controlled shutdown
• Thermal shutdown and current limit protection
• 7-Pin S-Pak package
• –40°C to +125°C Temperature Junction

Applications
• ASIC Core Voltage Regulator
• PLD/FPGA Core Power Supply
• Linear Point-of-Load Conversion
• High-Speed Post-Regulator

Specifications

Attribute	Attribute Value
Manufacturer	Microchip Technology
Product Category	Linear Voltage Regulators
Series	-
Packaging	Tape & Reel (TR) Alternate Packaging
Mounting-Style	SMD/SMT
Package-Case	SPak-7 (7 leads + Tab)
Operating-Temperature	-40°C ~ 125°C
Mounting-Type	Surface Mount
Supplier-Device-Package	S-PAK-7
Voltage-Input	1.65 V ~ 5.5 V
Current-Output	5A
Voltage-Output	0.5 V ~ 5.5 V
Regulator-Topology	Positive Adjustable
Voltage-Dropout-Typical	0.25V @ 5A
Number-of-Regulators	1 Regulator
Current-Limit-Min	5.5A
Output-Current	150 mA
Part-#-Aliases	MIC69502WR TR
Package-Case	SPAK-7

Descriptions

Linear Voltage Regulator IC 1 Output 5A S-PAK-7

LDO Regulator Pos 0.5V 5A 8-Pin(7+Tab) SPAK T/R

LDO Voltage Regulators

China MIC69502WR-TR IC REG LINEAR POS ADJ 5A SPAK-7 Microchip Technology factory

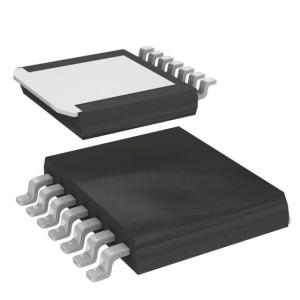

MIC69502WR-TR IC REG LINEAR POS ADJ 5A SPAK-7 Microchip Technology Images
